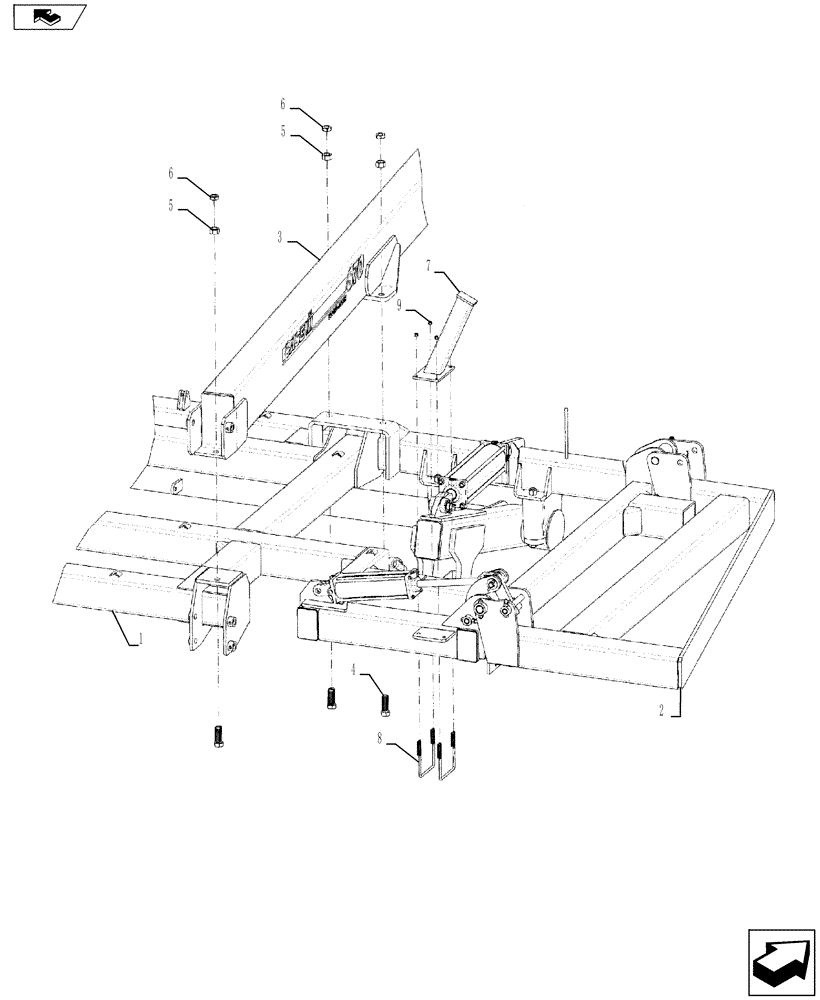

Запчасти Case IH 870 (39.100.01[01]) - MAIN FRAME INSTALLATION 2009 - 2010 PRODUCTION (39) - FRAMES AND BALLASTING

1

87757851

FRAME

Main, 7 Shank

1шт.

1

87758268

FRAME

Main, 9 Shank

1шт.

1

87476751

FRAME

Main, 11 And 13 Shank

1шт.

2

87740529

FRAME

Main Wing, 11 Shank, Lh

1шт.

2

87473258

FRAME

Main Wing, 13 Shank, Lh

1шт.

2

87742375

FRAME

Main Wing, 11 Shank, Rh

1шт.

2

87473256

FRAME

Main Wing, 13 Shank, Rh

1шт.

3

87757928

FRAME

Carrier, 7 Shank

1шт.

3

87470040

FRAME

Carrier, 9 Shank

1шт.

3

87475717

FRAME

Carrier, 11 And 13 Shank

1шт.

4

9845479

BOLT,Hex, 7/8" - 9 x 3", Gr 5

7 And 9 Shank

6шт.

4

84128

BOLT,Hex, 1" x 3", Gr 5

11 And 13 Shank

6шт.

5

9849647

NUT,7/8"-9, G5

7 And 9 Shank

6шт.

5

9849633

NUT,1"-8, G5

11 And 13 Shank

6шт.

6

425-1414

JAM NUT,Jam, 7/8"-9, G5

7 And 9 Shank

6шт.

6

87553819

JAM NUT

1-8, G5, Znd, 11 And 13 Shank

6шт.

7

87479417

FRAME

Wing Stop

1шт.

8

16309110

U-BOLT

2шт.

9

88902

NUT,3/8"-16

4шт.

10

84482599

HITCH

Main Frame To Carrier Frame Update Hardware, 7-9 Shank

1шт.

10

84482601

HITCH

Main Frame To Carrier Frame Update Hardware, 11-13 Shank

1шт.

11

47927293

FRAME

7 Shank Kit

1шт.

can be used to replace2011-Current 84406828 (MF) & 84406805 (CF - 2009-2010 87757851 (MF) & 87757928 (CF)

1шт.

12

47927239

FRAME

9 Shank Kit

1шт.

can be used to replace: 2011-Current 84406858 (MF) & 84406841 (CF) 2009-2010 87758268 (MF) & 87470040 (CF)

1шт.

13

47927241

FRAME

11/13 Shank Kit

1шт.

can be used to replace: 2011-Current 84406786 (MF) & 84406756 (CF) 2009-2010 87476751 (MF) & 87475717 (CF)

1шт.
