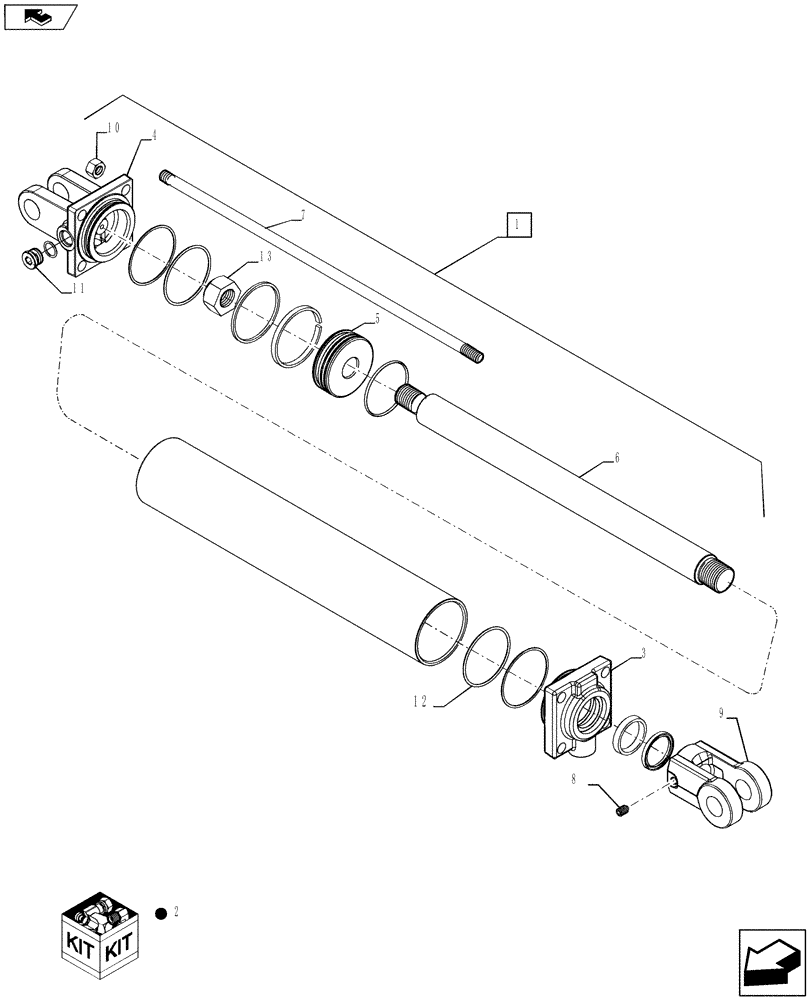

Запчасти Case IH 870 (35.100.13) - HYDRAULIC CYLINDERS (35) - HYDRAULIC SYSTEMS

1

87471399

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3-1/2 x 16, IND HDN

2шт.

1

87471400

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

4 x 16

2шт.

1

87471400R

REMAN-HYD CYLINDER

870, ECOLO-TIGER DISK RIPPER, 4 x 16

2шт.

1

87471400C

CORE-HYD CYLINDER

Return Number

2шт.

1

87471401

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 406.4mm Stroke

4-1/2 x 16

2шт.

1

87471401R

REMAN-HYD CYLINDER

870 ECOLO TIGER DISK RIPPER, HYDRAULIC CYLINDERS, 4-1/2 x 16

2шт.

1

87471401C

CORE-HYD CYLINDER

Return Number

2шт.

1

25325161

HYDRAULIC CYLINDER,Double Acting, 31mm Rod, 406.4mm Stroke

2-1/2 x 16

2шт.

1

25330082

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 x 8

2шт.

1

84393373

CYLINDER,Double Acting, 31.75mm Rod, 127mm Stroke

3 x 8, With Stops, Start Year: 01-MAR-11

2шт.

1

87730280

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 101.6mm Stroke

3-1/4 x 4

2шт.

1

25330081

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 x 8

2шт.

1

25330101

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3 x 10

2шт.

1

25330101R

REMAN-HYD CYLINDER

870 ECOLO-TIGER DISK RIPPER

2шт.

1

25330101C

CORE-HYD CYLINDER

Return Number

2шт.

1

25335120

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 304.8mm Stroke

3-1/2 x 12

2шт.

1

25335120R

REMAN-HYD CYLINDER

870 Ecolo-Tiger Disk Ripper

2шт.

25335120C

CORE-HYD CYLINDER

Return Number

1шт.

1

25330160

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3 x 16

2шт.

1

25330160R

REMAN-HYD CYLINDER

870, ECOLO-TIGER DISK RIPPER, 3 x 16

2шт.

1

25330160C

CORE-HYD CYLINDER

Return Number

2шт.

1

25335162

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3-1/2 x 16

2шт.

1

87730279

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 101.6mm Stroke

3 X 4

2шт.

1

87423763

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3-1/2 x 8

2шт.

1

84220783

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3-1/2 x 16

2шт.

2

84172248

SEAL KIT

3-1/2 x 16, IND HDN

1шт.

2

84172249

SEAL KIT

4 x 16

1шт.

2

84172250

SEAL KIT

4-1/2 x 16

1шт.

2

25832510

SEAL KIT

2-1/2 x 16

1шт.

2

25833007

SEAL KIT

3 x 8 And 3 x 10

1шт.

2

9660V2

SEAL KIT

3 x 16

1шт.

2

87409035

REPAIR KIT

3 x 4

1шт.

2

87409037

SEAL KIT

3-1/4 x 4

1шт.

2

25803500

SEAL KIT

3-1/2 x 16 And 3-1/2 x 12

1шт.

2

87409038

SEAL KIT

3-1/2 x 8

1шт.

3

84220843

CYLINDER END CAP

2-1/2 X 16

1шт.

3

8952

CYLINDER END CAP

3 X 16

1шт.

3

87409417

HEAD

3-1/2 X 12 And 3-1/2 x 16

1шт.

3

87582273

CYLINDER END CAP

3 X 8 And 3 x 10

1шт.

3

87410757

CYLINDER END CAP

3-1/4 x 4

1шт.

3

87635301

HEAD

3 x 4

1шт.

3

87409403

HEAD

3-1/2 X 16,

1шт.

3

87410785

CYLINDER END CAP

4 X 16

1шт.

3

84212853

CYLINDER END CAP

4-1/2 X 16

1шт.

4

84220842

CLEVIS

2-1/2 X 16

1шт.

4

84220841

CLEVIS

3 X 8 And 3 x 10

1шт.

4

87409430

HEAD

3-1/2 X 16 And 3-1/2 x 12

1шт.

4

84220839

CLEVIS

3 X 8

1шт.

4

87410762

CLEVIS

3 x 4

1шт.

4

87409429

CLEVIS

3-1/4 x 4

1шт.

4

87409445

HEAD

3 x 16

1шт.

4

84212849

CLEVIS

3-1/2 x 16 IND HDN

1шт.

4

84212850

CLEVIS

4 X 16

1шт.

4

84212851

CLEVIS

4-1/2 X 16

1шт.

5

84212859

PISTON

3-1/2 X 16 IND HDN

1шт.

5

87454887

PISTON

4 X 16

1шт.

5

84212860

PISTON

4-1/2 X 16

1шт.

5

87409477

PISTON

2-1/2 X 16

1шт.

5

87635232

PISTON

3 X 8, 3 X 10, And 3 x 16

1шт.

5

87409468

PISTON

3-1/4 X 4

1шт.

5

87409479

PISTON

3 X 4

1шт.

5

87409481

PISTON

3-1/2 x 12 And 3-1/2 x 16

1шт.

6

84212862

PISTON ROD

3-1/2 X 16 IND HDN

1шт.

6

84212864

PISTON ROD

4 X 16

1шт.

6

84212865

PISTON ROD

4-1/2 X 16

1шт.

6

87577842

SHAFT

2-1/2 X 16

1шт.

6

9682

SHAFT

3 X 8

1шт.

6

87637948

SHAFT

3 x 10

1шт.

6

84220844

PISTON ROD

3-1/2 x 12

1шт.

6

87548067

SHAFT

3 x 16

1шт.

6

84220846

PISTON ROD

3-1/2 X 16

1шт.

6

84224028

PISTON ROD

1шт.

7

87577844

THREADED TIE-ROD

2-1/2 X 16

1шт.

7

87409688

TIE-ROD

3 X 8

1шт.

7

87454888

TIE-ROD

TIE ROD 3-1/4 X 4

1шт.

7

87582271

TIE-ROD

3 X 4

1шт.

7

87637934

THREADED TIE-ROD

3 x 10

1шт.

7

87548070

TIE-ROD

3-1/2 x 12

1шт.

7

87577798

THREADED TIE-ROD

3 x 16

1шт.

7

87409492

THREADED TIE-ROD

3-1/2 X 16 And 4 X16

1шт.

8

84212867

SET SCREW

All Cylinders

1шт.

9

84212876

CLEVIS

3-1/2 x 16 And 4 x 16, IND HDN

1шт.

9

84212880

CLEVIS

4-1/2 x 16

1шт.

9

87449358

CLEVIS

2-1/2 X 16

1шт.

9

87409387

CLEVIS,1 -1/4" - 12

3 X 8, 3 X 10, And 3 x 16

1шт.

9

87409387

CLEVIS,1 -1/4" - 12

3-1/4 X 4 And 3 x 4

1шт.

9

87409391

CLEVIS,1 -1/2" - 12

3-1/2 x 16 And 3-1/2 x 12

1шт.

10

280963

NUT,Nut, 1/2-20 GR 5 ZND

3 x 4, 3 x 8, 3 x 10, And 3 x 16

1шт.

10

408

NUT,5/8" - 18, Gr 5

3-1/4 x 4, 3-1/2 x 16, 4 x 16, 4-1/2 x 16, And 3-1/2 x 12

1шт.

10

86509310

NUT,3/8" - 24, Gr 5

2-1/2 x 16

1шт.

11

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

3 x 4, 3-1/4 x 4, 3-1/2 x 16, 4 x 16, 4-1/2 x 16, 3 x 8, 3 x 10, And 3 x 16

1шт.

11

9625178

PLUG,9/16" - 18 ORB

2-1/2 x 16

1шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3 x 4, 3-1/4 x 4, 3-1/2 x 16, 4 x 16, 4-1/2 x 16, 3 x 8, 3 x 10, And 3 x 16

1шт.

12

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2-1/2 x 16

1шт.

13

87314800

LOCK NUT

3 x 4, 3-1/4 x 4, 3-1/2 x 16, 3 x 8, 3 x 10, 3-1/2 x 12, 3 x 16 And 3-1/2 x 16

1шт.

13

87652886

NUT

4 x 16

1шт.

13

87023139

NUT

4-1/2 x 16

1шт.

13

8000

NUT

2-1/2 x 16

1шт.
