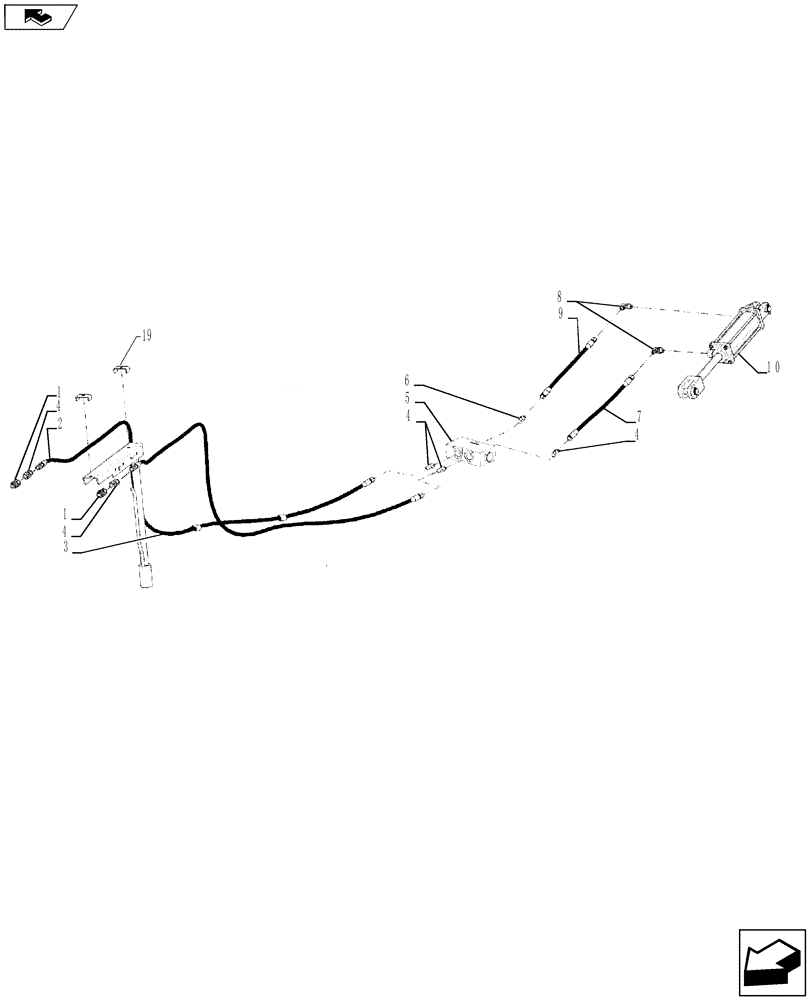

Запчасти Case IH 870 (35.100.12) - CHECK VALVE KIT, STANDARD EQUIPMENT 2011 (35) - HYDRAULIC SYSTEMS

1

25705041

COUPLING

3/4 Male

1шт.

2

1284256C1

HYDRAULIC HOSE,9.52 mm ID x 4955.00 mm

1шт.

3

1284329C1

HYDRAULIC HOSE

3/8 x 205

1шт.

4

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

4шт.

4

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

5

298624A1

VALVE

Check

1шт.

6

1263477C3

HYD CONNECTOR

3/4 SAEM xl 9/16 JICM

1шт.

7

1251872C2

HYDRAULIC HOSE

3/8 X 23

1шт.

8

128822

UNION,3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

9

1270453C1

HYDRAULIC HOSE

3/8 X 35

1шт.

10

25330082

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 X 8, 7 And 9 Shank

2шт.

10

84393373

CYLINDER,Double Acting, 31.75mm Rod, 127mm Stroke

3 X 8, 7 And 9 Shank,After 2011 Model, With Stop

2шт.

10

84413040

STOP

Cylinder Stop

2шт.

10

87423763

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3-1/2 x 8, 11 And 13 Shank

2шт.

11

302331A1

VALVE

Not Shown

1шт.

12

86508168

SEAL KIT

Not Shown

1шт.

13

149940C1

PISTON

Not Shown

1шт.

14

87405

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

Not Shown

2шт.

15

280129

NUT,1/4"-20

Not Shown

2шт.

16

22510700

HOSE CLAMP,15.86mm

5/8, Not Shown

1шт.

16

22510710

HOSE CLAMP

3/4, Not Shown

1шт.

17

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

Not Shown

1шт.

18

86992213

NUT

Not Shown

1шт.

19

427779A1

CLAMP

Hose

1шт.
