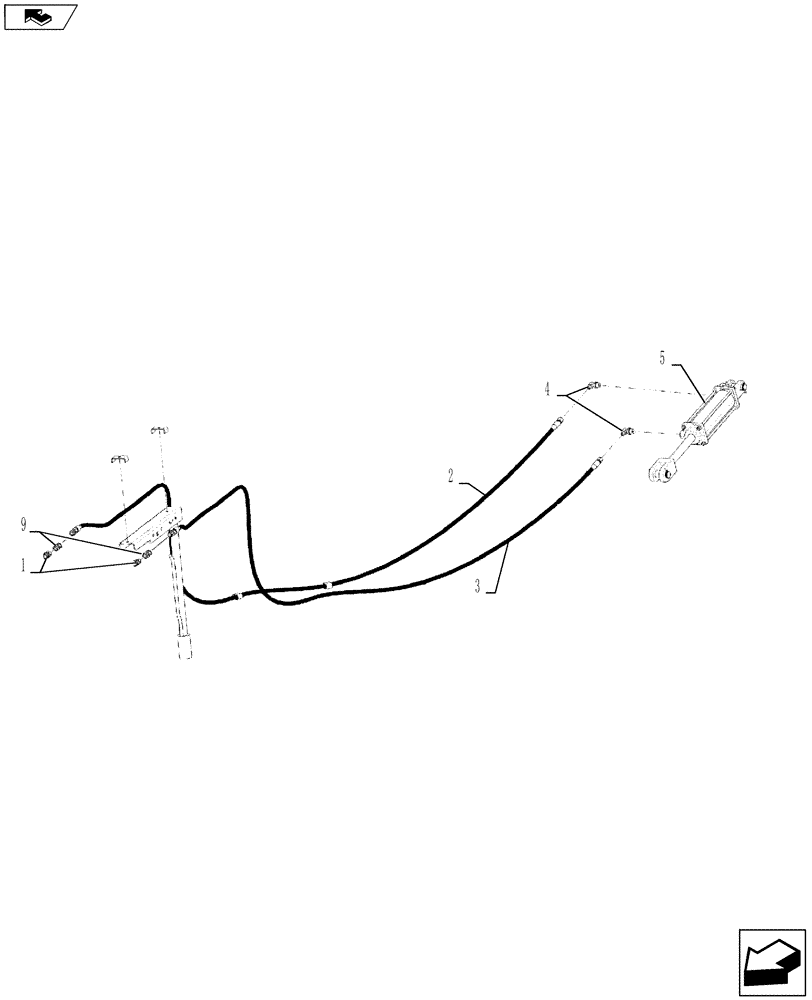

Запчасти Case IH 870 (35.100.11) - DISK HYDRAULICS PRE 2011 (35) - HYDRAULIC SYSTEMS

1

25705041

COUPLING

3/4 SAEF, Male

2шт.

2

1284329C1

HYDRAULIC HOSE

3/8 x 205

1шт.

3

1284256C1

HYDRAULIC HOSE,9.52 mm ID x 4955.00 mm

1шт.

4

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

2шт.

5

25330081

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 x 8, 7 And 9 Shank

1шт.

5

87423763

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3-1/2 x 8, Cylinder, 11 And 13 Shank

1шт.

6

22510700

HOSE CLAMP,15.86mm

5/8, Not Shown

1шт.

6

22510710

HOSE CLAMP

3/4, Not Shown

1шт.

7

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

Not Shown

1шт.

8

86992213

NUT

Not Shown

1шт.

9

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

3/4 SAEM x 9/16 JICM

2шт.
