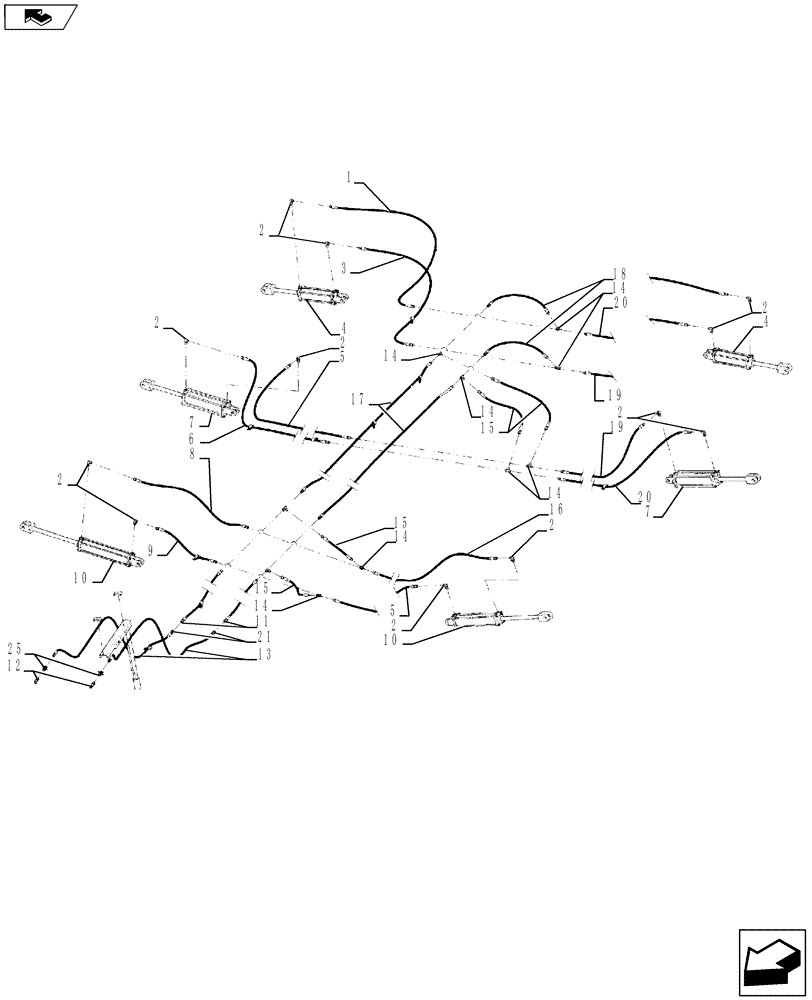

Запчасти Case IH 870 (35.100.09[01]) - 11 SHANK LEVELER WITH FINISHER WING FOLD HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

1277717C1

HYDRAULIC HOSE,6.35 mm ID x 1525.00 mm

1шт.

2

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

12шт.

3

812382C1

HYDRAULIC HOSE

1/4 X 50

1шт.

4

25335162

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3-1/2 X 16, Leveler With Finisher

2шт.

5

147878C1

HOSE

1/4 x 65

2шт.

6

97478C1

HOSE,6.35 mm ID x 1905.00 mm, SAE 100 R1

1шт.

7

25335120

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 304.8mm Stroke

3-1/2 x 12

2шт.

7

25335120R

REMAN-HYD CYLINDER

870 Ecolo-Tiger Disk Ripper

2шт.

7

25335120C

CORE-HYD CYLINDER

Return Number

1шт.

8

1284278C1

HYDRAULIC HOSE

1/4 x 41

1шт.

9

1969386C1

HOSE

1/4 x 23

1шт.

10

25330160

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3 x 16, 11 Shank

2шт.

10

25330160R

REMAN-HYD CYLINDER

870, ECOLO-TIGER DISK RIPPER, 3 x 16, 11 Shank

2шт.

10

25330160C

CORE-HYD CYLINDER

Return Number

2шт.

11

813006C2

HYDRAULIC HOSE

3/8 x 85

2шт.

12

25705041

COUPLING

3/4 Hydraulic

2шт.

13

1284252C1

HYDRAULIC HOSE

3/8 x 140

2шт.

14

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

10шт.

15

147887C1

HYDRAULIC HOSE,9.53mm ID x 485mm L

1/4 x 19

4шт.

16

97479C1

HYDRAULIC HOSE,6.35 mm ID x 2159.00 mm, SAE 100 R1

1шт.

17

129671C2

HYDRAULIC HOSE

3/8 x 105

2шт.

18

87706C1

HYDRAULIC HOSE

3/8 x 29

2шт.

19

191936A1

HOSE

1/4 x 110

2шт.

20

1277718C1

HYDRAULIC HOSE,6.35 mm ID x 3050.00 mm

2шт.

21

128821

UNION,9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

22

22510700

HOSE CLAMP,15.86mm

5/8, Not Shown

1шт.

22

22510710

HOSE CLAMP

3/4, Not Shown

1шт.

23

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

Not Shown

1шт.

24

86992213

NUT

Not Shown

1шт.

25

1263477C3

HYD CONNECTOR

3/4 x 9/16

2шт.
