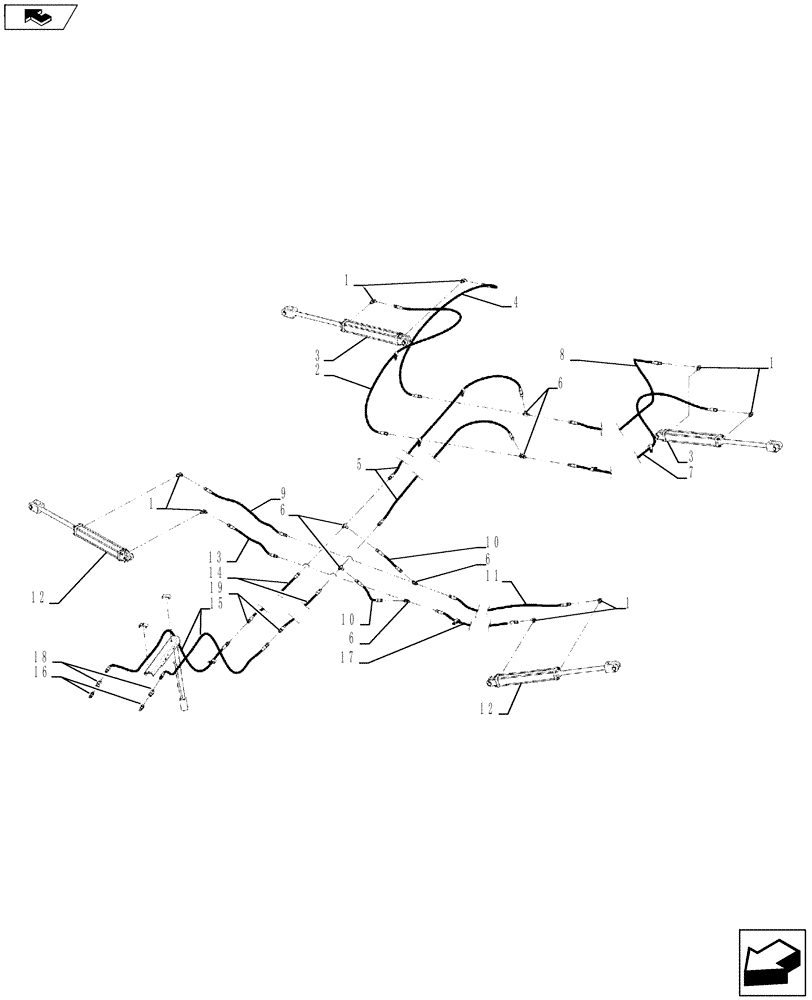

Запчасти Case IH 870 (35.100.07[01]) - 9 SHANK REAR DISK LEVELER WITH FINISHER WING FOLD HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

8шт.

2

147878C1

HOSE

1/4 x 65

1шт.

3

25330160

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3 x 16

2шт.

3

25330160R

REMAN-HYD CYLINDER

870, ECOLO-TIGER DISK RIPPER, 3 x 16

2шт.

3

25330160C

CORE-HYD CYLINDER

Return Number

2шт.

4

1277717C1

HYDRAULIC HOSE,6.35 mm ID x 1525.00 mm

1шт.

5

129768C1

HYDRAULIC HOSE

1/4 x 115

2шт.

6

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

6шт.

7

1254530C2

HYDRAULIC HOSE

1/4 x 130

1шт.

8

191936A1

HOSE

1/4 x 110

1шт.

9

147875C1

HYDRAULIC HOSE,6.40 mm ID x 890.00 mm, SAE 100R1

1шт.

10

97638C1

HYDRAULIC HOSE,6.35 mm ID x 482.60 mm, SAE 100 R1

2шт.

11

1279526C1

HYDRAULIC HOSE,6.35 mm ID x 2285.00 mm

1шт.

12

25325161

HYDRAULIC CYLINDER,Double Acting, 31mm Rod, 406.4mm Stroke

2-1/2 x 16

2шт.

13

1336714C1

HYDRAULIC HOSE

1/4 x 15

1шт.

14

1264172C2

HYDRAULIC HOSE,6.40 mm ID x 2665.00 mm, SAE 100R1

1/4 x 105

2шт.

15

97646C1

HYDRAULIC HOSE,12.70 mm ID x 381.00 mm, SAE 100 R1

1/4 x 150

1шт.

16

25705041

COUPLING

9/16 JICM, Male

2шт.

17

810205C1

HYDRAULIC HOSE,6.35mm ID x 1820mm L, SAE 100R17

1/4 x 70

1шт.

18

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

2шт.

19

128821

UNION,9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

20

22510700

HOSE CLAMP,15.86mm

5/8, Not Shown

1шт.

20

22510710

HOSE CLAMP

3/4, Not Shown

1шт.

21

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

Not Shown

1шт.

22

86992213

NUT

Not Shown

1шт.
