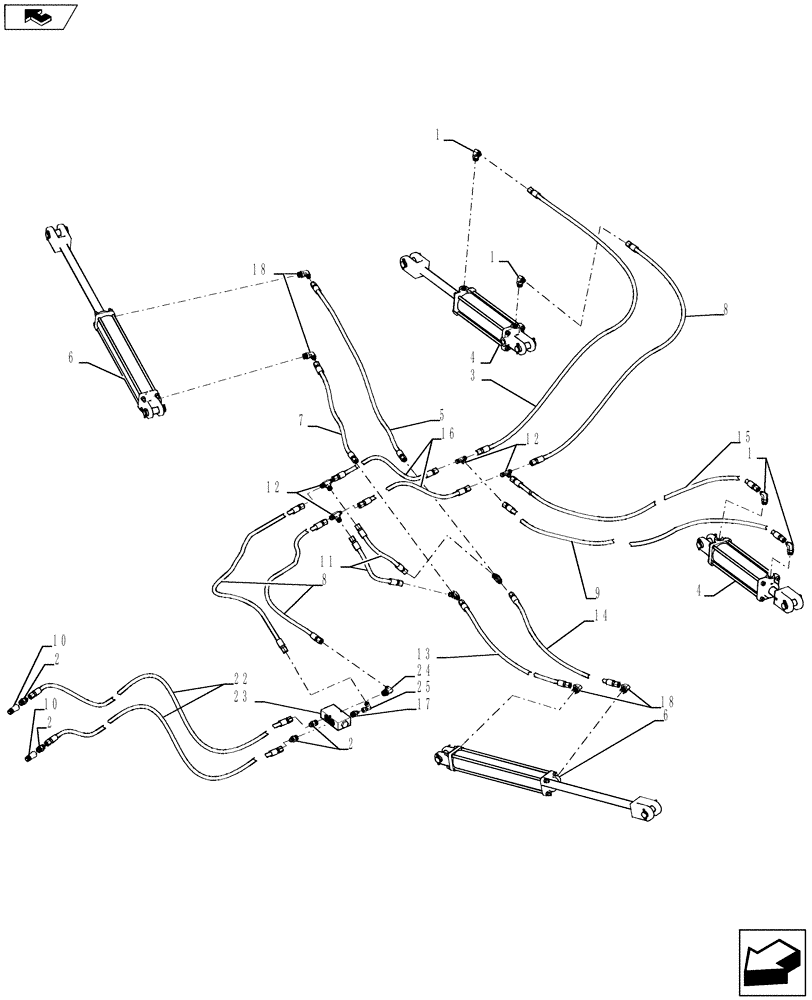

Запчасти Case IH 870 (35.100.06[02]) - 9 SHANK REAR DISK LEVELER WING FOLD HYDRAULICS 2011 (35) - HYDRAULIC SYSTEMS

1

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

4шт.

2

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

4шт.

2

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

3

97479C1

HYDRAULIC HOSE,6.35 mm ID x 2159.00 mm, SAE 100 R1

1шт.

4

25330101

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3 x 10

2шт.

4

25330101R

REMAN-HYD CYLINDER

870 ECOLO-TIGER DISK RIPPER

2шт.

4

25330101C

CORE-HYD CYLINDER

Return Number

2шт.

5

147875C1

HYDRAULIC HOSE,6.40 mm ID x 890.00 mm, SAE 100R1

1шт.

6

25325161

HYDRAULIC CYLINDER,Double Acting, 31mm Rod, 406.4mm Stroke

2-1/2 x 16

2шт.

7

1336714C1

HYDRAULIC HOSE

1/4 x 15

1шт.

8

1264172C2

HYDRAULIC HOSE,6.40 mm ID x 2665.00 mm, SAE 100R1

1/4 x 105

3шт.

9

1254530C2

HYDRAULIC HOSE

1/4 x 130

1шт.

10

25705041

COUPLING

3/4 SAEF, Male

2шт.

11

97638C1

HYDRAULIC HOSE,6.35 mm ID x 482.60 mm, SAE 100 R1

2шт.

12

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

6шт.

13

810205C1

HYDRAULIC HOSE,6.35mm ID x 1820mm L, SAE 100R17

1/4 x 70

1шт.

14

1279526C1

HYDRAULIC HOSE,6.35 mm ID x 2285.00 mm

1шт.

15

97646C1

HYDRAULIC HOSE,12.70 mm ID x 381.00 mm, SAE 100 R1

1/4 x 150

3шт.

16

129768C1

HYDRAULIC HOSE

1/4 x 115

2шт.

17

241074

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

1шт.

18

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

4шт.

19

22510700

HOSE CLAMP,15.86mm

5/8, Not Shown

1шт.

19

22510710

HOSE CLAMP

3/4, Not Shown

1шт.

20

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

Not Shown

1шт.

21

86992213

NUT

Not Shown

1шт.

22

1261399C1

HYDRAULIC HOSE,6.35mm ID x 4570mm L

2шт.

23

298624A1

VALVE

1шт.

24

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

1шт.

25

1263477C3

HYD CONNECTOR

9/16

1шт.
