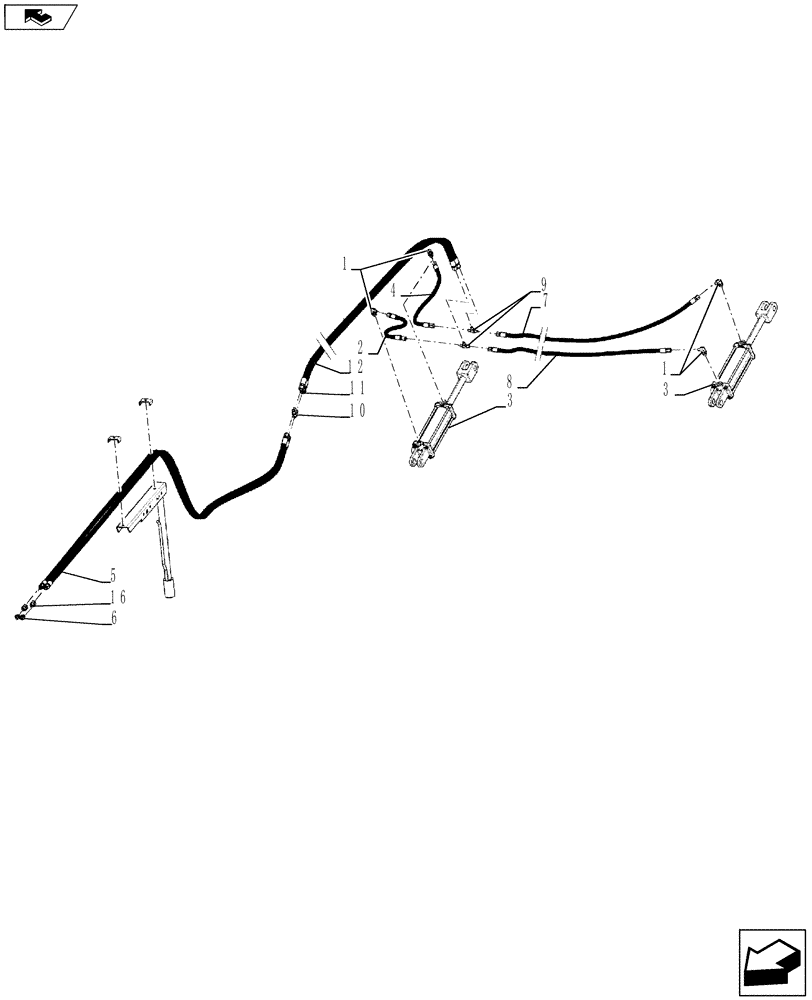

Запчасти Case IH 870 (35.100.05) - ALL LEVELING 2012 PRODUCTION (35) - HYDRAULIC SYSTEMS

1

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

4шт.

2

1284323C1

HYDRAULIC HOSE

3/8 x 15

1шт.

3

25330082

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 x 8

2шт.

3

84393373

CYLINDER,Double Acting, 31.75mm Rod, 127mm Stroke

3 x 8, 2011 Model, With Stop

2шт.

3

84413040

STOP

Cylinder Stop

2шт.

4

1251872C2

HYDRAULIC HOSE

3/8 x 23

1шт.

5

1284303C1

HYDRAULIC HOSE

3/8 x 145

2шт.

6

25705041

COUPLING

3/4 SAEF, Male

2шт.

7

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

3/8 x 95

1шт.

8

813006C2

HYDRAULIC HOSE

3/8 x 85

1шт.

9

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

10

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

2шт.

11

128821

UNION,9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

12

129765C2

HYDRAULIC HOSE

3/8 x 200, 7 And 9 Shank

2шт.

12

129764C2

HYDRAULIC HOSE

3/8 x 215, 11 And 13 Shank

2шт.

13

22510700

HOSE CLAMP,15.86mm

5/8, Not Shown

1шт.

13

22510710

HOSE CLAMP

3/4, Not Shown

1шт.

14

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

Not Shown

1шт.

15

86992213

NUT

Not Shown

1шт.

16

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

2шт.
