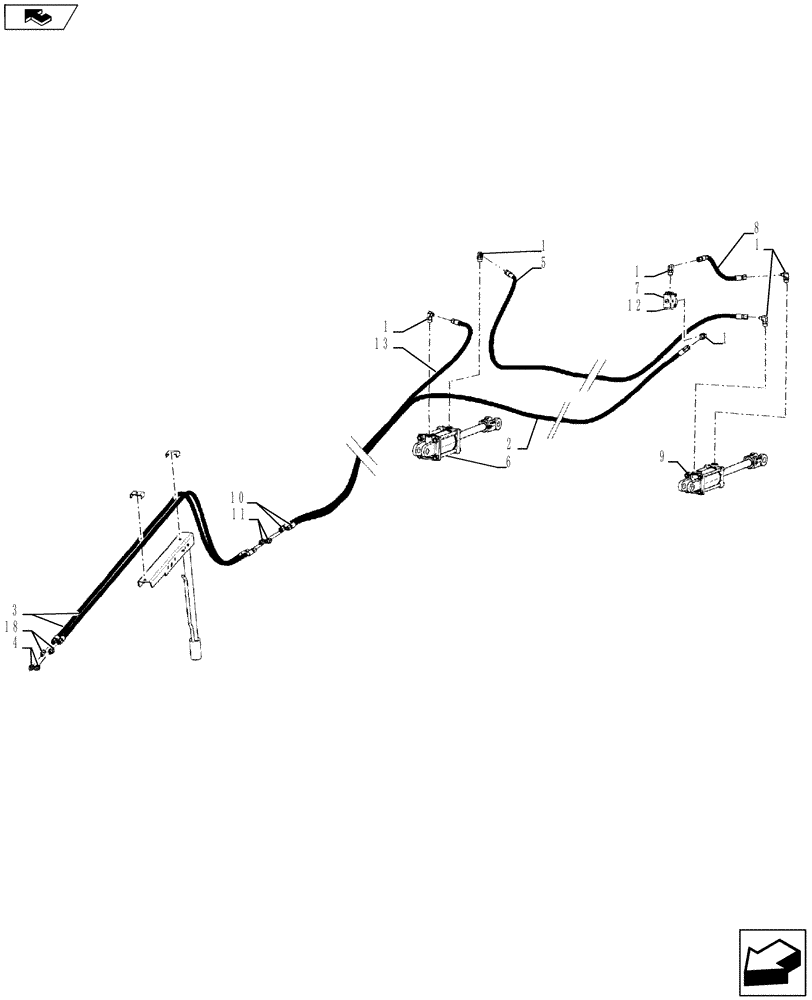

Запчасти Case IH 870 (35.100.04) - BASIC LEVELING PRIOR TO 2012 PRODUCTION (35) - HYDRAULIC SYSTEMS

1

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

6шт.

2

191289A1

HYDRAULIC HOSE

3/8 x 295, 7 And 9 Shank

1шт.

3

1284303C1

HYDRAULIC HOSE

3/8 x 145

2шт.

2

1284251C1

HYDRAULIC HOSE

3/8 x 315, 11 And 13 Shank

1шт.

4

25705041

COUPLING

3/4 SAEF, Male

2шт.

5

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

1шт.

6

87730280

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 101.6mm Stroke

3-1/4 x 4

1шт.

7

396150A1

VALVE, CONTROL

Single Point Depth

1шт.

7

396151A1

KIT

Repair

1шт.

8

1284323C1

HYDRAULIC HOSE

3/8 x 15

1шт.

9

87730279

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 101.6mm Stroke

3 x 4

1шт.

10

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

2шт.

11

128821

UNION,9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

12

218-5156

PLUG,Hex Hd, 3/4"-16 ORB

1шт.

13

425639A1

HYDRAULIC HOSE

3/8 x 220, 7 And 9 Shank

1шт.

13

1284330C1

HOSE

3/8 x 240, 11 And 13 Shank

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Not Shown

1шт.

15

22510700

HOSE CLAMP,15.86mm

5/8, Not Shown

1шт.

15

22510710

HOSE CLAMP

3/4, Not Shown

1шт.

16

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

Not Shown

1шт.

17

86992213

NUT

Not Shown

1шт.

18

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

2шт.
