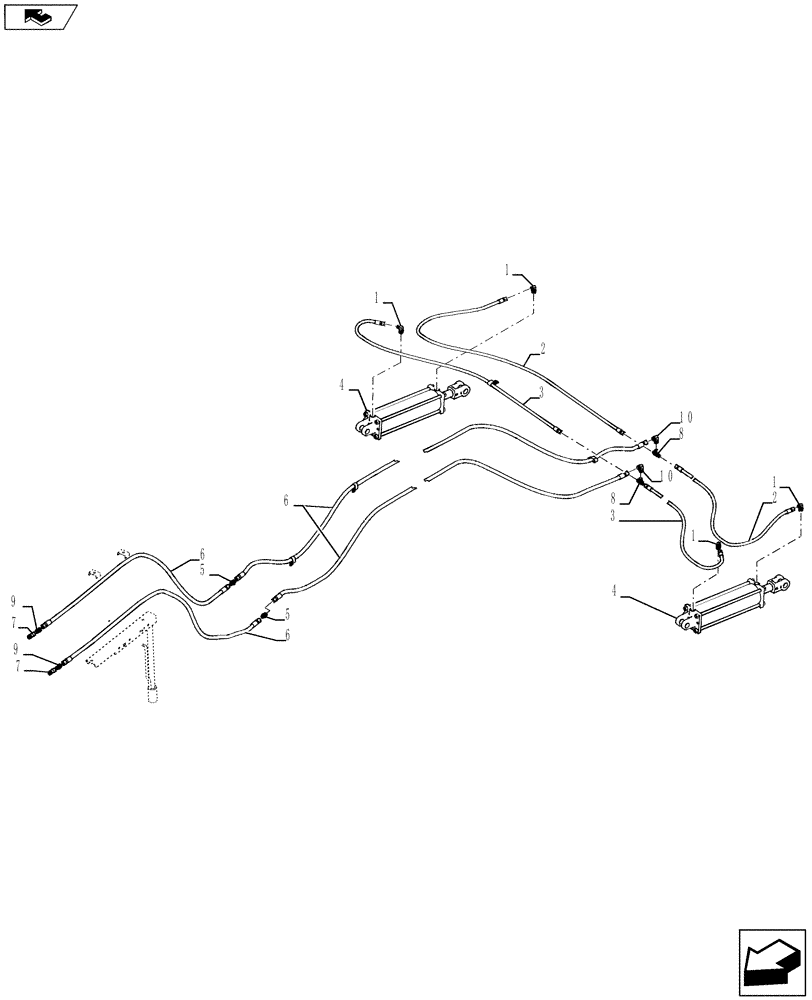

Запчасти Case IH 870 (35.100.02[02]) - 7 AND 9 SHANK MECHANICAL TRANSPORT HYDRULICS 2011 (35) - HYDRAULIC SYSTEMS

1

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

4шт.

2

196584C2

HYDRAULIC HOSE

3/8 x 50

2шт.

4

87471399

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3-1/2 x 16, 7 Shank

2шт.

4

87471400

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

4 x 16, 9 Shank

2шт.

4

87471400R

REMAN-HYD CYLINDER

870, ECOLO-TIGER DISK RIPPER, 4 x 16, 9 Shank

2шт.

4

87471400C

CORE-HYD CYLINDER

Return Number

2шт.

5

128822

UNION,3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

6

1015396

HYDRAULIC HOSE,12.7mm ID x 3810mm L, SAE 100R17

1/2 x 150

4шт.

7

25705041

COUPLING

3/4 Male

2шт.

8

86624134

TEE,37 Degree, 9/16"-18 x 3/4"-16, Br

2шт.

9

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

3/4 SAEM x 3/4 JICM Adapter

2шт.

10

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

2шт.

12

22510700

HOSE CLAMP,15.86mm

5/8, Not Shown

1шт.

12

22510710

HOSE CLAMP

3/4, Not Shown

1шт.

13

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

Not Shown

1шт.

14

86992213

NUT

Not Shown

1шт.
