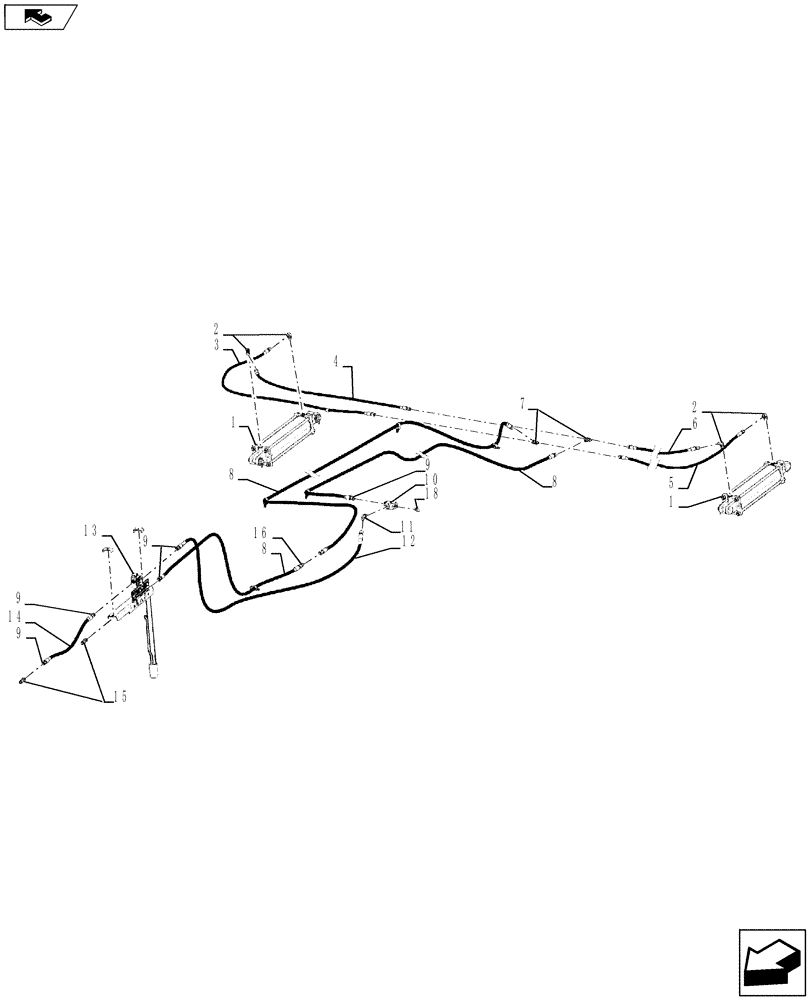

Запчасти Case IH 870 (35.100.01[01]) - SINGLE POINT DEPTH CONTROL HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

87471399

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3-1/2 x 16, 7 Shank Unit

2шт.

1

87471400

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

4 x 16, 9 Shank Unit

2шт.

1

87471400R

REMAN-HYD CYLINDER

870, ECOLO-TIGER DISK RIPPER, 4 x 16, 9 Shank Unit

2шт.

1

87471400C

CORE-HYD CYLINDER

Return Number

2шт.

1

87471401

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 406.4mm Stroke

4-1/2 x 16, 11 & 13 Shank Units

2шт.

1

87471401R

REMAN-HYD CYLINDER

870 ECOLO TIGER DISK RIPPER, SINGLE POINT DEPTH CONTROL\n HYDRAULICS, 4-1/2 x 16, 11 & 13 Shank Units

2шт.

1

87471401C

CORE-HYD CYLINDER

Return Number

2шт.

2

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

4шт.

3

1285380C2

HYDRAULIC HOSE

3/8 x 50

1шт.

4

1270453C1

HYDRAULIC HOSE

3/8 x 35

1шт.

5

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

3/8 x 95

1шт.

6

813006C2

HYDRAULIC HOSE

3/8 x 85

1шт.

7

86624134

TEE,37 Degree, 9/16"-18 x 3/4"-16, Br

2шт.

8

1015396

HYDRAULIC HOSE,12.7mm ID x 3810mm L, SAE 100R17

1/2 x 150

3шт.

9

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

5шт.

10

396150A1

VALVE, CONTROL

Single Point Depth

1шт.

11

216797

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1шт.

12

90685C1

HYDRAULIC HOSE,12.70 mm ID x 4825.00 mm, SAE 100R1

1/2" x 190"

1шт.

13

87328528

SHUT-OFF VALVE

Hydraulic

1шт.

14

91202C1

HYDRAULIC HOSE,12.70 mm ID x 2160.00 mm, SAE 100R1

1шт.

15

25705041

COUPLING

3/4 Hydraulic Male

2шт.

16

128822

UNION,3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Not Shown

1шт.

18

214389

PLUG,3/4" - 16 ORB

1шт.

19

22510710

HOSE CLAMP

3/4, Not Shown

1шт.

19

22510700

HOSE CLAMP,15.86mm

5/8, Not Shown

1шт.

20

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

Not Shown

1шт.

21

86992213

NUT

Not Shown

1шт.
