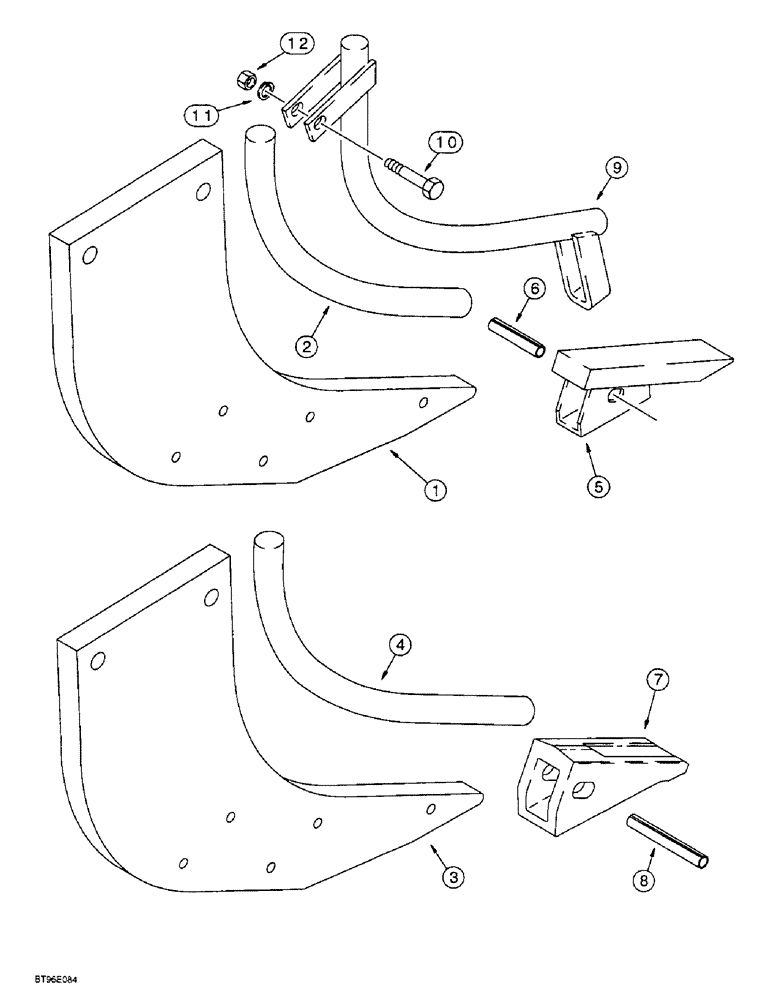

Запчасти Case IH 6814 (9-90) - SHANKS, POINTS AND SHINS, REPLACEMENT

139200A1

SHANK

ASSY, rigid, consists of 1, 2, models 14 and 6814 shear bolt rippers

1шт.

1

NSS

NOT SOLD SEPARAT

SHANK, shear bolt ripper

1шт.

2

112458C2

WEAR PAD

SHIN, wear bar, shear bolt ripper, welded on style

1шт.

3

131639C1

SHANK

trip, model 14 auto-trip

1шт.

4

131641C1

SHIN

model 14 auto-trip, welded on style

1шт.

5

179333A1

POINT

steel

1шт.

6

438-32828

PIN,11.1mm OD x 44.45mm L

1шт.

7

1986114C1

TOOTH

POINT, cast, extended wear

1шт.

8

38-12840

LOCK PIN,7/16" x 2 1/2", Slotted

1шт.

9

245888A1

SHIN

wear bar, bolted on style, models 14 and 6814 shear bolt rippers

1шт.

10

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

11

492-11038

LOCK WASHER,3/8"

1шт.

12

425-106

NUT,3/8"-16, Cl 5

1шт.
