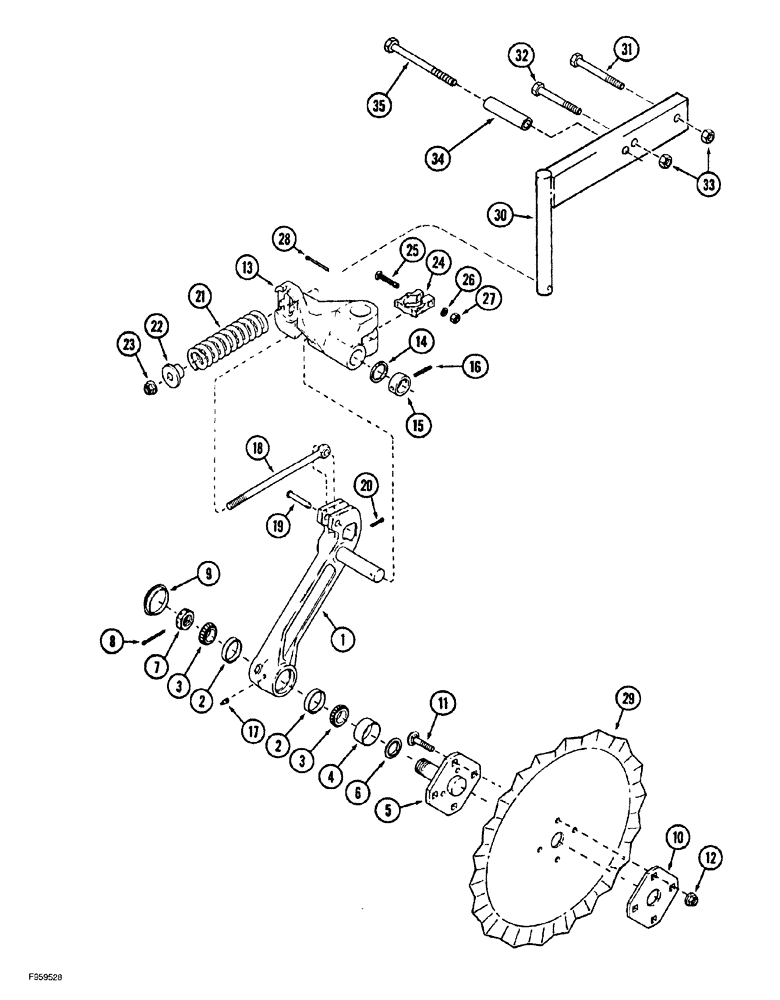

Запчасти Case IH 6814 (09-09) - ROLLING COULTER WITH CAST ARM, CUSHION TYPE (09) - CHASSIS/ATTACHMENTS

1

224274C1

LEVER

Cast

1шт.

2

651817R1

BEARING CUP

Tapered Roller

2шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

Tapered Roller

2шт.

4

472633R1

BUSHING

Wear

1шт.

5

224063C1

HUB

SPINDLE Coulter

1шт.

6

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

Oil

1шт.

7

519250R1

SLOTTED NUT

Slotted, Hex, 1-1/4 NF

1шт.

8

87673

COTTER PIN,1/8" x 1 3/4"

1шт.

9

224066C1

HUB CAP

1шт.

10

224067C1

LARGE PLATE

PLATE, LARGE Disk, Outer

1шт.

11

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

Carriage, 1/2 x 1-1/4

4шт.

12

231-5348

FLANGE NUT,Flg, 1/2"-13

Self-locking

4шт.

13

224068C1

SUPPORT

Coulter

1шт.

14

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

Flat, 1-9/32 x 1-3/4 x 1/16

1шт.

15

61570C1

FERRULE

COLLAR, Coulter Arm

1шт.

16

438-32032

PIN,5/16" x 2", Coiled

5/16" x 2", Coiled

1шт.

17

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

18

480344R1

EYEBOLT,Spring, 5/8" - 11 x 299.70mm

BOLT, EYE 5/8

1шт.

19

439-1834

HEADED PIN,1/2" x 2 1/8"

Headed, 1/2 x 2-1/8, GR2

1шт.

20

432-1216

COTTER PIN,3/16" x 1"

1шт.

21

487698R1

SPRING

Cushion, 13-1/2 Coils

1шт.

22

487697R1

CENTERING RING

Spring

1шт.

23

231-41110

LOCK NUT,5/8"-11, GB

1шт.

24

112844C1

COLLAR CLAMP

Stop

1шт.

25

18929R1

BOLT,7/16" - 14 x 2 1/2", Gr 2

Square Head, 7/16 x 2-1/2

1шт.

26

492-11044

LOCK WASHER,7/16"

1шт.

27

280717

NUT,7/16"-14, G5

1шт.

28

432-2040

COTTER PIN,5/16" x 2 1/2"

5/16" x 2 1/2"

1шт.

29

28341R1

PLOW DISC

Coulter, Rippled Edge, 20 in

1шт.

29

31399R1

NOTCHED DISK

Coulter, Rippled Edge, 17 in

1шт.

30

131746C2

BAR

Coulter, with Shank

1шт.

31

426-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

Hex, 3/4 x 3-1/2, GR8

1шт.

32

426-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

1шт.

33

231-42112

NUT,3/4"-10, GB

Hex, Self-locking, 3/4

2шт.

34

558699R1

SPACER,3/4" Pipe x 3 5/16"

Bar

2шт.

35

426-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 8

Hex, 3/4 x 6-1/2, GR8

2шт.
