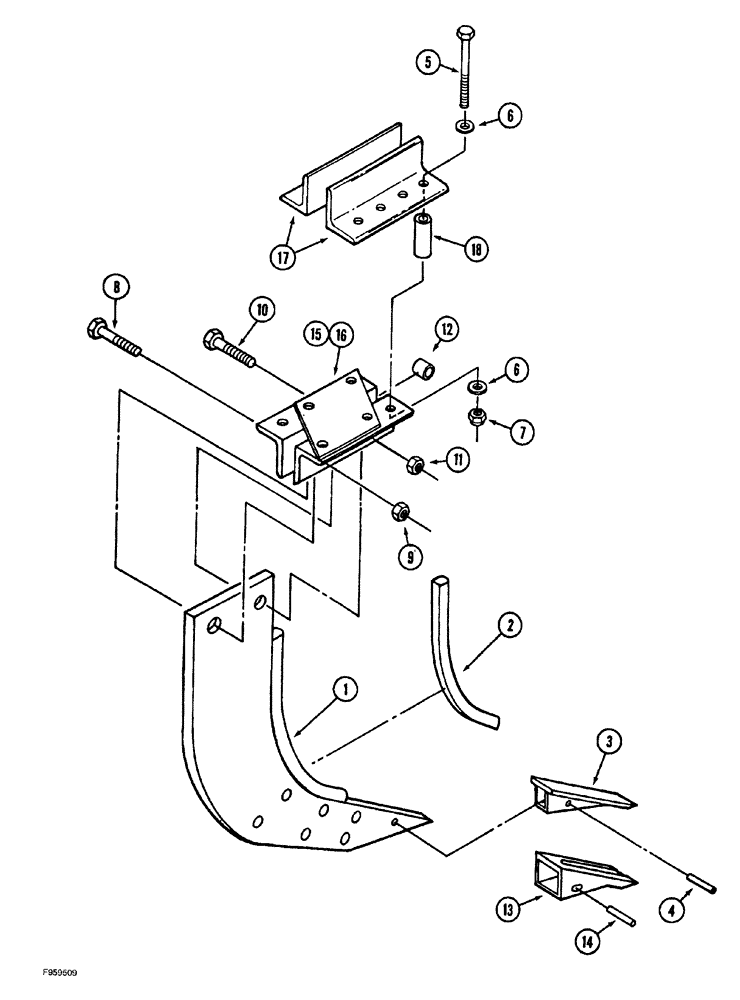

Запчасти Case IH 6814 (09-08) - SHEAR BOLT SHANK UNIT (09) - CHASSIS/ATTACHMENTS

139200A1

SHANK

Rigid, with Wear Shin

1шт.

1

NSS

NOT SOLD SEPARAT

SHANK Rigid

1шт.

2

112458C2

WEAR PAD

Shank

1шт.

3

179333A1

POINT

Steel

1шт.

4

438-32828

PIN,11.1mm OD x 44.45mm L

7/16" x 1 3/4", Coiled

1шт.

5

426-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 8

Hex, 3/4 x 9, GR8

6шт.

6

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

12шт.

7

231-41412

NUT,3/4"-10, GB

Hex, 3/4

6шт.

8

413-1456

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 5

Hex, 7/8 x 3-1/2

1шт.

9

326968C1

LOCK NUT

Hex, Self-locking, 7/8

1шт.

10

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

2шт.

11

231-41412

NUT,3/4"-10, GB

Hex, 3/4

2шт.

12

525288R1

SPACER

Shear Bolt

1шт.

13

1986114C1

TOOTH

Cast

1шт.

14

38-12840

LOCK PIN,7/16" x 2 1/2", Slotted

1шт.

15

195616A1

ANGLE BAR

Shank Support, LH

1шт.

16

195617A1

ANGLE BAR

Shank Support, RH

1шт.

17

195605A2

ANGLE BAR

Support

2шт.

18

224706A1

SPACER

Angle

2шт.
