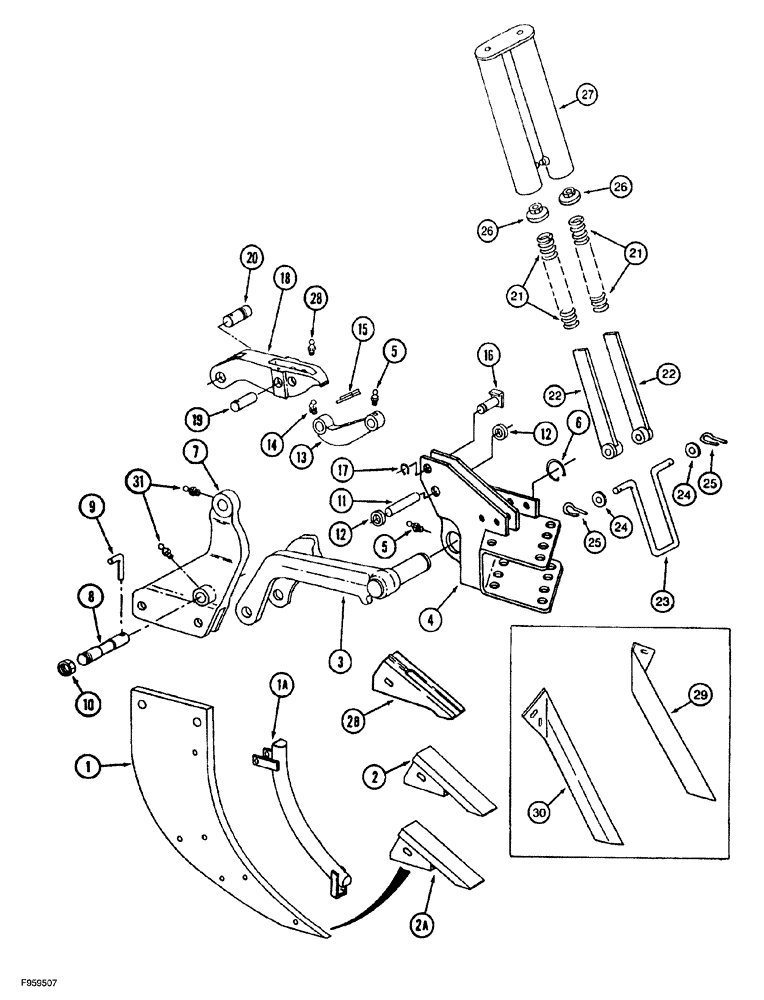

Запчасти Case IH 6814 (09-07) - AUTOMATIC TRIP SHANK UNIT (09) - CHASSIS/ATTACHMENTS

1

124762A2

SHANK

Trip, Automatic

1шт.

1a

1995568C1

SHIN

Shank, 30 in Shank

1шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

9628503

NUT,3/8"-16, G5

2шт.

413-1456

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 5

Hex, 7/8 x 3-1/2

2шт.

326968C1

LOCK NUT

Hex, Self-Locking, 7/8

2шт.

179598A1

SPACER

Shank Mounting

2шт.

2

179335A1

POINT

Steel, Scarifier, 2 in, if used

1шт.

438-32828

PIN,11.1mm OD x 44.45mm L

7/16" x 1 3/4", Coiled

1шт.

2a

190727A1

POINT

Steel, 2-1/2 in

1шт.

2b

1986110C1

POINT

Cast, Extended Wear Shank, if used

1шт.

245774A1

POINT

1 x 2-1/2 in

1шт.

245775A1

POINT

1-1/4 x 3 in

1шт.

245776A1

POINT

Hardfaced, 1 in

1шт.

245777A1

BLADE

Hardfaced Root Cutter, LH

1шт.

245778A1

BLADE

Hardfaced Root Cutter, RH

1шт.

38-12440

LOCK PIN,3/8" x 2 1/2", Slotted

1шт.

3

55366C4

PLOW BEAM

Lower Link, LH, not shown

1шт.

3

131644C3

PLOW BEAM

Lower Link, RH

1шт.

4

124746A1

SUPPORT

Trip Mounting, LH, not shown

1шт.

4

124747A1

SUPPORT

Trip Mounting, RH

1шт.

426-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 8

Special, 3/4 x 8, GR8

4шт.

231-41412

NUT,3/4"-10, GB

Hex, 3/4

4шт.

5

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

6

103-16200

SNAP RING,#200, Ext

1шт.

7

131630C2

SUPPORT

LH Shank, not shown

1шт.

7

131631C2

SUPPORT

RH Shank

1шт.

8

485526R1

SHAFT

Pivot

1шт.

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

Flat, 1-9/32 x 2 x 3/64

2шт.

9

813175C2

LOCK PIN,9.5mm OD

Special

1шт.

10

519250R1

SLOTTED NUT

Hex, Slotted, 1-1/4 NF

1шт.

432-840

COTTER PIN,1/8" x 2 1/2"

1/8" x 2 1/2"

1шт.

11

485534R2

PIN,25.4mm OD x 132mm L

Retaining

1шт.

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

Flat, 1-1/32 x 1-3/4 x 1/16

2шт.

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

12

61561C1

SPACER

Trip Mounting Bracket

2шт.

13

485537R4

SUPPORT

LINK Upper, Front

1шт.

Part of Spring Kit P/N 133528A1

1шт.

14

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING, Grease, 1/4-28 taper x 3/4, 90 degree

1шт.

15

489152R2

BAND

Load Adjusting

1шт.

Part of Spring Kit P/N 133528A1

1шт.

426-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

Hex, 5/16 x 1-1/4, GR8

1шт.

Part of Spring Kit P/N 133528A1

1шт.

492-11031

LOCK WASHER,5/16"

1шт.

Part of Spring Kit P/N 133528A1

1шт.

16

485539R1

PIN

Upper Front Link

1шт.

17

100-1698

SNAP RING,#98, Ext

1шт.

18

413868A1

UPPER LINK

Rear, LH

1шт.

18

413869A1

UPPER LINK

Rear, RH, not shown

1шт.

19

485543R1

PIN

Rear Link Center

1шт.

438-31440

PIN,7/32" x 2 1/2", Coiled

7/32" x 2 1/2", Coiled

1шт.

20

121225A1

PIN,31.75mm OD x 76mm L

Pivot, Automatic Trip

1шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

1шт.

231-4115

NUT,5/16"-18, GB

1шт.

21

118674A1

SPRING

Extension

2шт.

Part of Spring Kit P/N 133528A1

1шт.

22

485545R1

BAR

Spring Insert

2шт.

Part of Spring Kit P/N 133528A1

1шт.

23

485544R1

HOLDER

Spring Mounting Hook

1шт.

24

486365R1

WASHER

Flat, Hardened, 29/32 x 1-1/2 x 1/16

2шт.

25

460309R1

COTTER PIN

Hair

2шт.

26

485548R2

WASHER

Adjuster Spring

2шт.

Part of Spring Kit P/N 133528A1

1шт.

27

485551R3

TUBE

Spring

1шт.

485555R1

BOLT,Hex, 1/2" - 13 x 4 1/4"

Hex, Full Thread, 1/2 x 4-1/4

2шт.

495-81169

WASHER,17/32" x 2 1/2" x .120"

Flat, 17/32 x 2-1/2 x 3/64

2шт.

495-81021

WASHER,17/32" x 1" x .120"

Flat, 17/32 x 1 x 7/64

2шт.

28

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

29

245777A1

BLADE

Wing Shank, LH

1шт.

30

245778A1

BLADE

Wing Shank, RH

1шт.

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

2шт.

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

280431

NUT,1/2"-13, G5

2шт.

31

219-86

LUBE NIPPLE,1/8" NPTF

Straight, Self-Tap

2шт.

133528A1

PACKAGE

KIT Spring, Inc.: (1) Toggle Assembly, REF.13 and 15 and P/N 426-520 and 492-11031 and (2) Spring Assemblies, REF 21 , 22, and 26 and Instructions

1шт.
