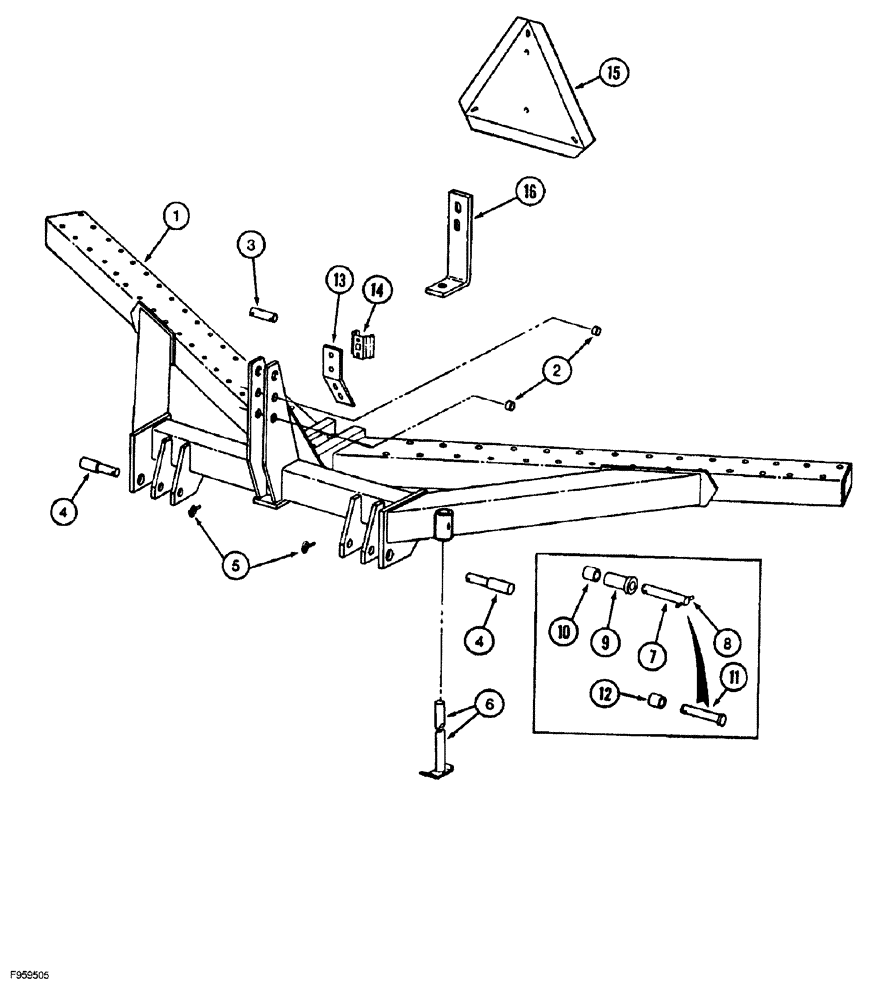

Запчасти Case IH 6814 (09-06) - MAIN FRAME AND SMV EMBLEM, 200 INCH (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
181999A1
FRAME
Main, 200 in, 7/30 and 9/25 in Shank Spacing
1шт.
2
307401A1
BUSHING
1-17/64 x 1-5/8 x 23/32
4шт.
122878C1
DECAL
Caution, See Figure 09-11, REF 1
1шт.
3
316396A2
PIN
Clevis, 1-1/4 x 5-39/64
1шт.
4
101137C1
HITCH PIN,50.8mm OD x 274.32mm L
BAR Hitch
2шт.
5
392181R1
SPLIT PIN/SAFETY PIN,11.13mm OD
Self-Locking
2шт.
6
953958R4
STAND
Support
1шт.
439-1834
HEADED PIN,1/2" x 2 1/8"
Headed, 1/2 x 2-1/8, GR 2
1шт.
1978738C1
HAIR PIN COTTER
3/8"
1шт.
7
1279504C1
PIN,28.57mm OD x 226mm L
Assy, Includes Roll Pin, Hitch, used with 542455R1 Collar and 542456R1 Spacer, Ref 9 and 10
2шт.
No Longer Available, Order 188536A1 Pin and 188537A1 Bushing, Ref. 11 and 12
1шт.
8
438-32440
PIN,3/8" x 2 1/2", Coiled
3/8" x 2 1/2", Coiled
2шт.
No Longer Available, Order 188536A1 Pin and 188537A1 Bushing, Ref. 11 and 12
1шт.
9
542455R1
SPACER
Hitch Pin, used with 1279504C1 Pin, REF 7
2шт.
No Longer Available, Order 188536A1 Pin and 188537A1 Bushing, Ref. 11 and 12
1шт.
10
542456R1
SPACER
Tubular, 1-9/64 x 1-7/16 x 2-1/4, used with 1279504C1 Pin, REF 7
2шт.
No Longer Available, Order 188536A1 Pin and 188537A1 Bushing, Ref. 11 and 12
1шт.
11
188536A1
HITCH PIN,36.3mm OD x 233mm L
Hitch, Lower
2шт.
12
188537A1
SPACER
Hitch Pin, Lower
2шт.
13
122557C1
SUPPORT
SMV Emblem and Tail Light
1шт.
413-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
2шт.
80679
LOCK WASHER,1/20.507 CST ZND
2шт.
14
A59457
BRACKET
Mounting
1шт.
434-512
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5
2шт.
495-81114
WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk
Flat, 11/32 x 3/4 x 3/64
2шт.
9635082
NUT,5/16" - 18, Gr 5
2шт.
15
202013C2
TRAFFIC SIGN
Slow Moving Vehicle
1шт.
16
811324C2
SUPPORT
L-Shaped
1шт.
413-10112
BOLT,Hex, 5/8" - 11 x 7", Gr 5
Hex, 5/8 x 7
1шт.
495-11066
WASHER,5/8", SAE
Flat, 21/32 x 1-5/16 x 3/32
1шт.
Выбрано товаров: 34
