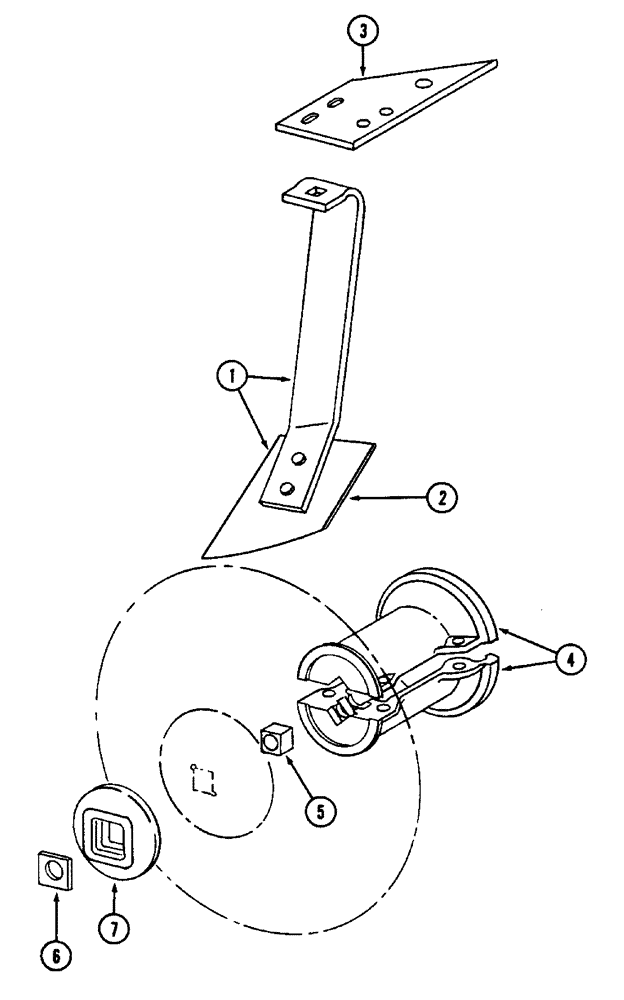

Запчасти Case IH 6814 (09-15) - FURROW FILLER AND SCRAPER ATTACHMENT (09) - CHASSIS/ATTACHMENTS

1

121119C92

SCRAPER

Disc, Left

1шт.

121120C92

SCRAPER

Disc, Right

1шт.

2

121118C2

BLADE

Scraper

1шт.

121258C1

BOLT,Spcl, Hex, 1/2" - 13 x 1.3", Type 5

Special, Scraper Retaining

2шт.

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

121233C1

RIVET,20mm OD x 29mm L

Blade Retaining

2шт.

3

139709C1

SUPPORT

Scraper, LH

1шт.

3

139710C1

SUPPORT

Scraper, RH

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

280431

NUT,1/2"-13, G5

2шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

REF 4 129797C1 is only one half per print not top and bottom.

1шт.

4

129797C1

HUB

Furrow Filler

4шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

280431

NUT,1/2"-13, G5

8шт.

5

100694C1

PLATE,SMALL SQUARE

Driver

2шт.

6

100695C1

SPACER

Driver Block

2шт.

7

596769R1

SQ HOLE WASHER

Head

2шт.

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

Hex, 7/8 x 3

2шт.

492-11088

LOCK WASHER,7/8"

7/8"

2шт.

425-1014

NUT,7/8"-9, G5

2шт.
