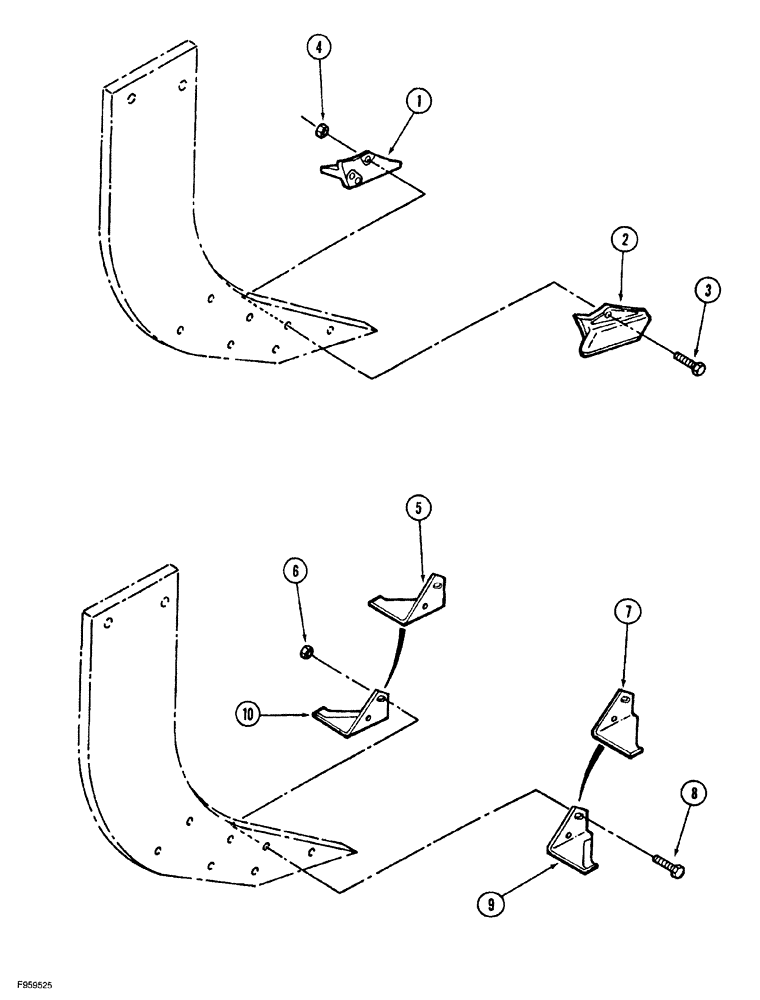

Запчасти Case IH 6814 (09-14) - SHATTER WINGS AND BLOCKS (09) - CHASSIS/ATTACHMENTS

191326A1

PACKAGE

KIT Shatter Block, Subsoiler

1шт.

1

183781A1

BLOCK

Subsoiler, LH Tooth

1шт.

2

183758A1

BLOCK

Subsoiler, RH Tooth

1шт.

3

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

2шт.

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

4

231-4218

LOCK NUT,1/2"-13, GB

LOCK Hex, 1/2

2шт.

191327A2

PACKAGE

KIT, Shatter Wing, Subsoiler

1шт.

5

183774A1

SHARE

Shatter, Subsoiler, LH

1шт.

6

231-4218

LOCK NUT,1/2"-13, GB

LOCK Hex, 1/2

2шт.

7

183780A1

SHARE

Shatter, Subsoiler, RH

1шт.

8

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

2шт.

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

9

192714A1

SHARE

Ripper, RH, Hard Face

1шт.

10

192713A1

SHARE

Ripper, LH, Hard Face

1шт.
