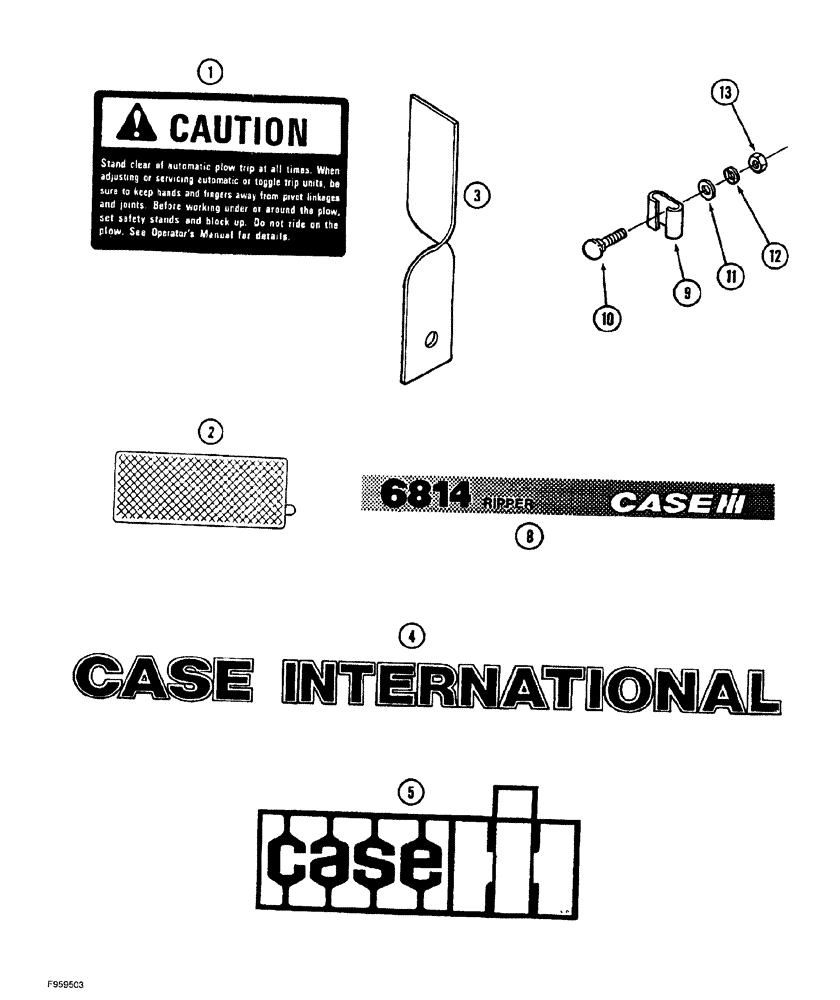

Запчасти Case IH 6814 (09-11) - DECALS, CASE IH (09) - CHASSIS/ATTACHMENTS

1

122878C1

DECAL

Caution, Stand Clear of Automatic Plow Trip at all times

1шт.

2

1284374C1

REFLECTOR,Reflector Red

Red

2шт.

2

1284365C2

REFLECTOR

Amber

1шт.

3

131947C1

SUPPORT

Reflector

2шт.

4

1973424C1

DECAL

Case International, 5 Shank

2шт.

4

1973426C1

DECAL

Case International, 9 Shank

2шт.

5

95731C1

DECAL

Case IH Trademark, 64 x 156mm

2шт.

8

198206A1

DECAL

6814 Model Designation, LH, Case IH, Replaces: 181065A1

1шт.

8

198365A1

DECAL

6814 Model Designation, RH, Case IH

1шт.

9

A59457

BRACKET

SMV

1шт.

10

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

11

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

Flat, 11/32 x 3/4 x 3/64

2шт.

12

492-11031

LOCK WASHER,5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

2шт.
