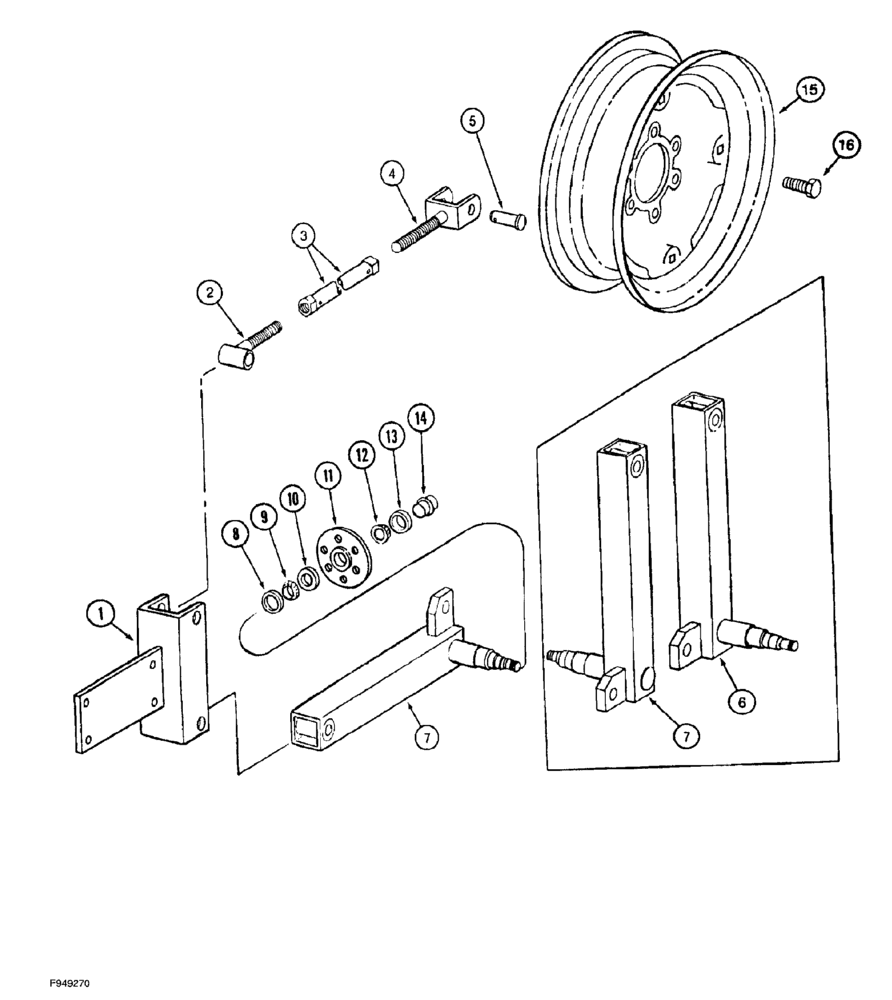

Запчасти Case IH 6810 (09-02) - GAUGE WHEEL ATTACHMENT, 5, 7 AND 9 SHANK (09) - CHASSIS/ATTACHMENTS

1

964229R1

SUPPORT

Mounting, Gauge Wheel

2шт.

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

8шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

8шт.

413-1688

BOLT,Hex, 1" - 8 x 5-1/2", Gr 5

Hex, 1 NC x 5-1/2

4шт.

23443R1

LOCK NUT,1"-8, GC

Hex, 1 NC

4шт.

2

964266R2

END

RH Thread

2шт.

3

480249R2

TURNBUCKLE

Landing Yoke

2шт.

219-17

LUBE NIPPLE,3/16" NPTF

4шт.

425-1416

JAM NUT,Jam, 1"-8, G5

Jam, Hex, 1 NC

2шт.

4

1344919C3

YOKE

UNIVERSAL JOINT YOKE Turnbuckle, LH Thread

2шт.

5

955521R1

PIN

Clevis

2шт.

88182

COTTER PIN,1/4" OD x 2" L

1/4" x 2"

2шт.

6

96159C1

STEERING KNUCKLE

ARM Wheel, LH

1шт.

425-1312

SLOTTED NUT,3/4"-16, G5

Hex, 3/4 NF

2шт.

432-824

COTTER PIN,1/8" x 1 1/2"

2шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

Flat, Hardened, Special, 25/32 x 1/4 x 1/8

2шт.

7

96160C1

STEERING KNUCKLE

ARM Wheel, RH

1шт.

8

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

Oil, Wheel Hub

2шт.

9

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

Tapered Roller, Inner

2шт.

10

651817R1

BEARING CUP

CUP Tapered Roller, Inner

2шт.

11

810087C2

HUB

Wheel, Six Bolt Mount

2шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

472222R1

SLEEVE

Oil Seal

2шт.

12

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

Tapered Roller, Outer

2шт.

12

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

13

651814R1

BEARING CUP

Tapered Roller, Outer

2шт.

14

B13280

HUB CAP

Wheel

2шт.

15

T53527

WHEEL

15 x 5

2шт.

16

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

Hex Conical, 1/2 NF x 1-5/32

12шт.
