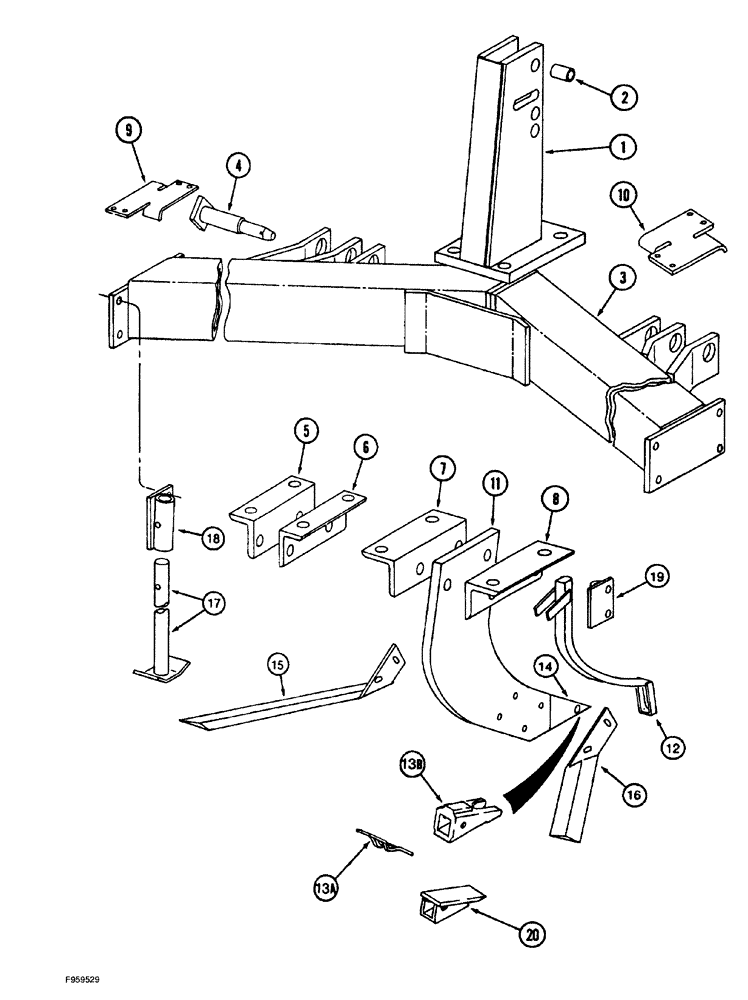

Запчасти Case IH 6810 (09-01) - MAST AND FRAME, 5, 7 AND 9 SHANK (09) - CHASSIS/ATTACHMENTS

1

964142R2

SUPPORT

MAST Hitch

1шт.

413-18152

BOLT,Hex, 1-1/8" - 7 x 9-1/2", Gr 5

Hex, 1-1/8 NC x 9-1/2

4шт.

425-1018

NUT,1 1/8"-7, G5

Hex, 1-1/8 NC

4шт.

88695

LOCK WASHER,1 1/8"

4шт.

2

964348R1

BUSHING

Upper Link

1шт.

495-21106

WASHER,1"

Flat, 1-1/16 x 2-1/2 x 5/32

1шт.

3

193433A1

CHASSIS

"V", Replaces: 964341R1 Frame

1шт.

4

957091R1

PIN

Pivot, Lower Link

2шт.

372907R91

LINCH PIN

Self-Locking

2шт.

5

964139R1

ANGLE BAR

Shank Center, LH

1шт.

6

964140R1

ANGLE BAR

Shank Center, RH

1шт.

7

964138R1

ANGLE BAR

Shank Support, Inside

1шт.

8

964137R1

ANGLE BAR

Shank Support, Outside

1шт.

9

964346R1

LARGE PLATE

PLATE, LARGE Clamping, LH

1шт.

10

964347R1

LARGE PLATE

PLATE, LARGE Clamping, RH

1шт.

413-14144

BOLT,Hex, 7/8" - 9 x 9", Gr 5

Hex, 7/8 NC x 9

1шт.

425-1014

NUT,7/8"-9, G5

1шт.

492-11088

LOCK WASHER,7/8"

7/8"

1шт.

11

1986061C1

TOOTH

30 in

1шт.

11

964354R2

TOOTH

33 in

1шт.

424-1456

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 2

Hex, 7/8 NC x 4, GR 2

1шт.

Grade 5 bolt is an acceptable replacement for the Grade 2 bolt, even when being used as a shear bolt

1шт.

425-1014

NUT,7/8"-9, G5

1шт.

492-11088

LOCK WASHER,7/8"

7/8"

1шт.

12

1995568C1

SHIN

Shank, 30 in

1шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

9628503

NUT,3/8"-16, G5

1шт.

13a

179335A1

POINT

Scarifier, No Longer Available, Order 179335A1 Point

1шт.

13b

1986110C1

POINT

Cast, Extended Wear, Scarifier

1шт.

38-12440

LOCK PIN,3/8" x 2 1/2", Slotted

1шт.

14

952121R1

POINT

Shank, Replacement, To Be Welded To Shank

1шт.

15

245777A1

BLADE

Shank, LH Wing

1шт.

16

245778A1

BLADE

Shank, RH Wing

1шт.

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1шт.

280431

NUT,1/2"-13, G5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

17

953958R4

STAND

Support

2шт.

439-1834

HEADED PIN,1/2" x 2 1/8"

Headed, 1/2 x 2-1/8, GR 2

2шт.

1978738C1

HAIR PIN COTTER

2шт.

18

953955R1

SUPPORT

Stand, LH

1шт.

19

953956R1

SUPPORT

Stand, RH

1шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

Hex, 5/8 NC x 1-3/4

4шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

20

179335A1

POINT

Steel, Scarifier, for Severe Conditions

1шт.

438-31432

PIN,5.54mm OD x 50.8mm L, Coiled

7/32" x 2", Coiled

1шт.

438-32432

PIN,9.53mm OD x 50.8mm L

3/8" x 2", Coiled

1шт.
