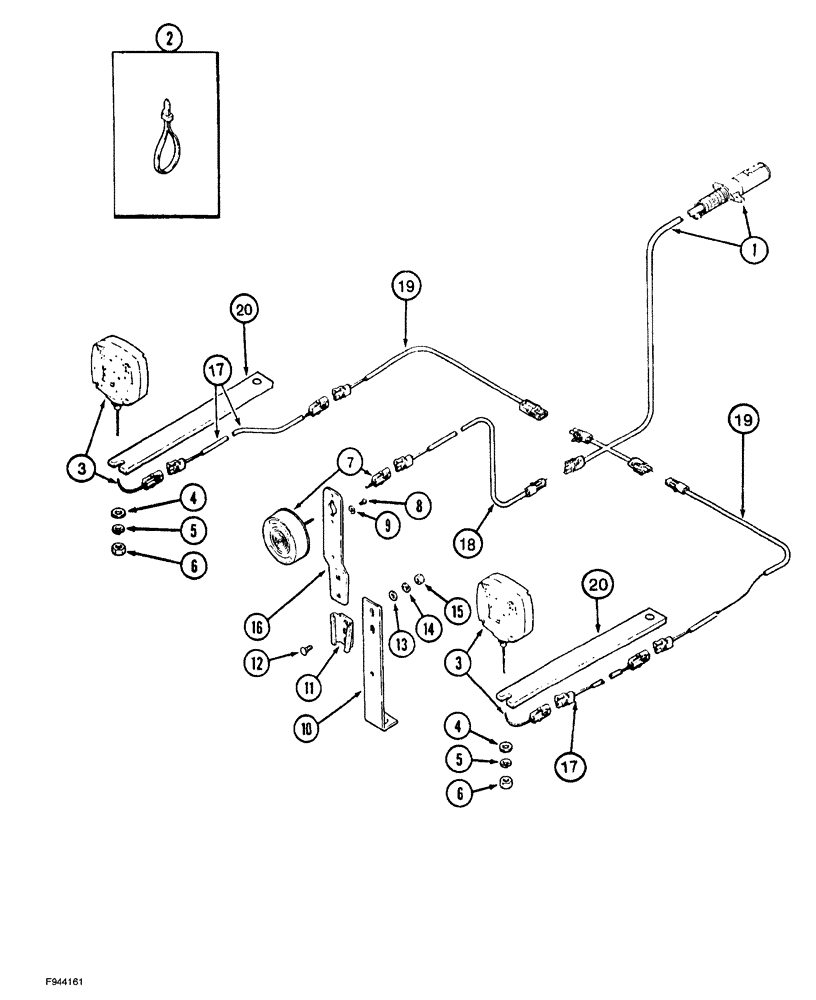

Запчасти Case IH 6810 (04-01) - LIGHTING SYSTEM (04) - ELECTRICAL SYSTEMS

1

92091C2

HARNESS

Main

1шт.

2

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP Tie

12шт.

3

91913C91

LIGHT

Turn Signal, see Figure 04-02

2шт.

4

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

9

493-81000

LOCK WASHER,Ext-Int Tooth, #10

(3/16")

2шт.

6

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

7

91986C91

LIGHT

Tail, see Figure 04-02

1шт.

8

261-14512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

Self-Tapping, Pan Phillips, No. 10 NC x 3/4

2шт.

10

131946C1

SUPPORT

Mounting, Emblem

1шт.

11

A59457

BRACKET

Mounting

1шт.

12

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

13

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

Flat, 11/32 x 3/4 x 3/64

2шт.

14

492-11031

LOCK WASHER,5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

2шт.

16

1978653C1

SUPPORT

Mounting, Lamp

1шт.

17

92098C1

HARNESS

Turn Signal Lamp, 5050 mm (199 in)

2шт.

18

92094C1

HARNESS

Tail Lamp, 1000 mm (39-3/8 in)

1шт.

19

92095C1

HARNESS

Lighting, Intermediate, Turn Signal Lamp, 2250 mm (88-1/2 in)

2шт.

20

131627C2

BRACKET

Mounting, Turn Signal Lamp

2шт.
