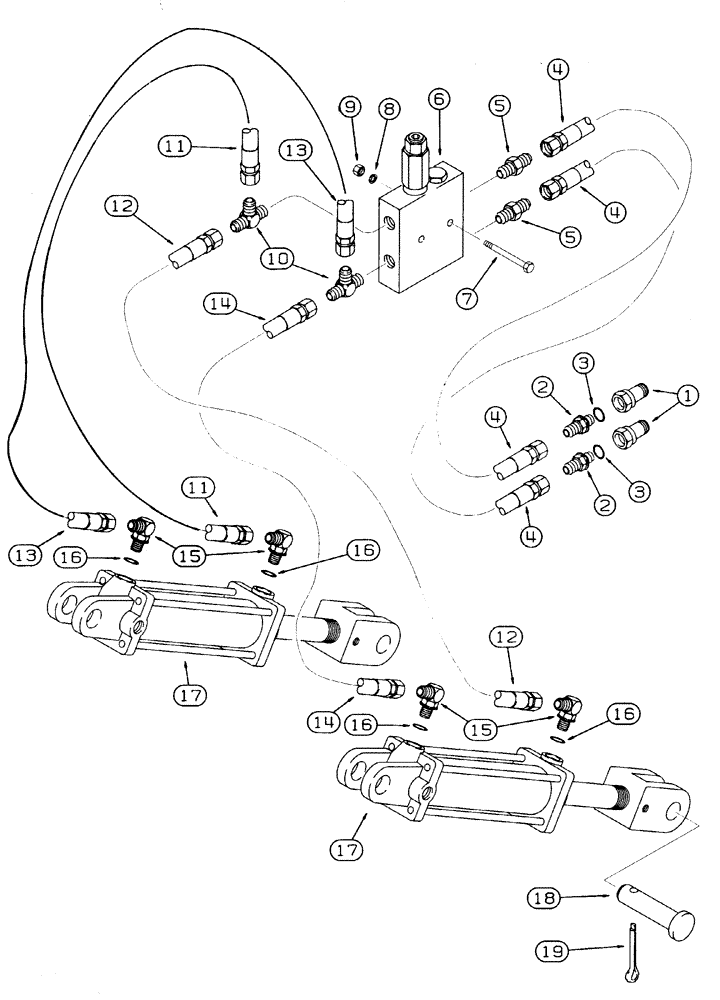

Запчасти Case IH 6800 (8-02) - UNDERSLUNG HITCH CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

1272399C2

QUICK MALE COUPLING

self sealing, male, 7/8 inch NF

2шт.

2

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

1279526C1

HYDRAULIC HOSE,6.35 mm ID x 2285.00 mm

Tractor to check valve

2шт.

5

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER straight, 9/16-18 flare x 1/4 inch PT

2шт.

6

142398A1

VALVE

dual pilot check with relief component parts not serviced serparately

1шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

8

492-11038

LOCK WASHER,3/8"

2шт.

9

425-106

NUT,3/8"-16, Cl 5

2шт.

10

218-613

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Run

9/16-18 flare branch x flare x 1/4 inch PT

2шт.

11

1254576C2

HOSE ASSY.

43 inch (1092 mm) long tee to rod end of left hand underslung hitch cylinder

1шт.

12

A51522

HYDRAULIC HOSE

24 inch (610 mm) long tee to rod end of right hand underslung hitch cylinder, replaces 1254527C2 hose

1шт.

13

1284278C1

HYDRAULIC HOSE

41 inch (1041 mm) long tee to closed end of left hand underslung hitch cylinder, replaces 196938C1 hose

1шт.

14

843066C1

HYDRAULIC HOSE,0.25" ID x 33.00"

Tee to closed end of RH underslung hitch cylinder

1шт.

15

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

4шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

140281A1

CYLINDER ASSY.

2-1/2 (64) ID x 8 inch (203 mm) stroke underslung hitch, parts list page 8-7

2шт.

18

427-16325

CLEVIS PIN,25.4mm OD x 82.55mm L

clevis, 1 x 3-1/4 inch, hardened

4шт.

should use a 5/32" cotter pin per hardware specs

1шт.

19

432-1228

COTTER PIN,3/16" x 1 3/4"

4шт.
