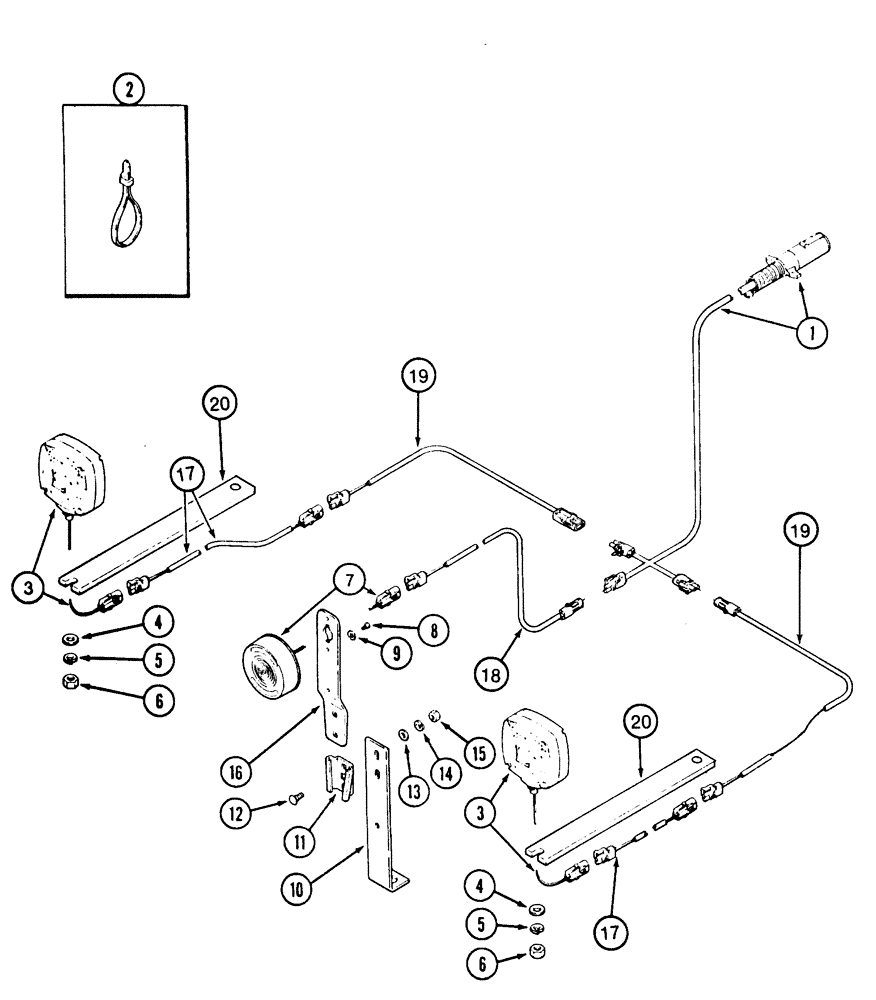

Запчасти Case IH 6800 (4-2) - LIGHTING SYSTEM (04) - ELECTRICAL SYSTEMS

1

92091C2

HARNESS

main

1шт.

2

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP tie

12шт.

3

91913C91

LIGHT

LAMP turn signal, parts list page 4-5

2шт.

4

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

9

493-81000

LOCK WASHER,Ext-Int Tooth, #10

(3/16")

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

6

425-118

NUT,1/2"-20, G5

2шт.

7

91986C91

LIGHT

LAMP ASSEMBLY tail, parts list page 4-5

1шт.

8

261-14512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

self tapping, pan Phillips No. 10 NC x 3/4 inch

2шт.

10

131946C1

SUPPORT

BRACKET mounting emblem

1шт.

11

A59457

BRACKET

mounting

1шт.

12

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

13

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

flat, 11/32 x 3/4 x 3/64 inch

2шт.

14

492-11031

LOCK WASHER,5/16"

2шт.

15

425-105

NUT,5/16"-18, G5

2шт.

16

1978653C1

SUPPORT

BRACKET lamp mounting

1шт.

17

92098C1

HARNESS

turn signal lamp (5050 mm)

2шт.

18

92094C1

HARNESS

tail lamp (1000 mm)

1шт.

19

92095C1

HARNESS

lighting turn signal lamp (2250 mm)

2шт.

20

131627C1

SUPPORT

BRACKET mounting turn signal lamp

2шт.
