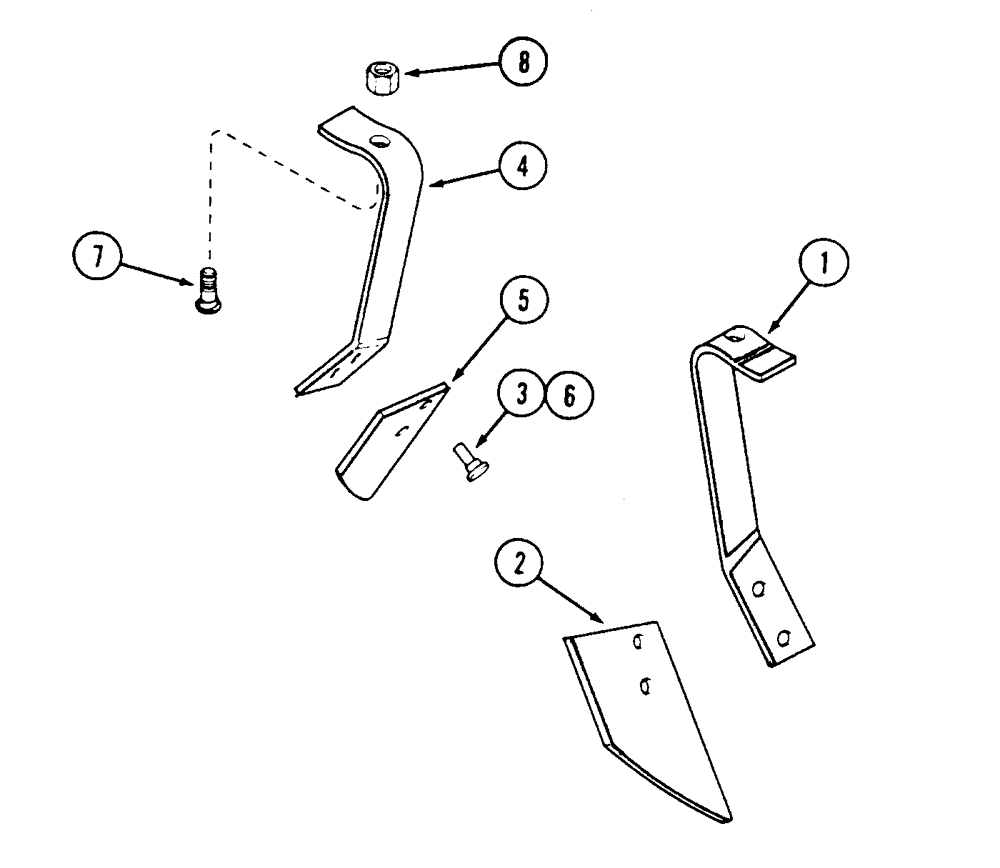

Запчасти Case IH 6800 (9-22) - DISK SCRAPER (09) - CHASSIS/ATTACHMENTS

121120C92

SCRAPER

ASSEMBLY disc, right hand

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET scraper, right hand 1

1шт.

2

121118C1

BLADE

scraper

1шт.

3

121233C1

RIVET,20mm OD x 29mm L

RIVET blade retaining

2шт.

121119C92

SCRAPER

ASSEMBLY disc, left hand

1шт.

4

NSS

NOT SOLD SEPARAT

BRACKET scraper, left hand 1

1шт.

5

121118C1

BLADE

scraper

1шт.

6

121233C1

RIVET,20mm OD x 29mm L

RIVET blade retaining

2шт.

7

121258C1

BOLT,Spcl, Hex, 1/2" - 13 x 1.3", Type 5

BOLT special

1шт.

8

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.
