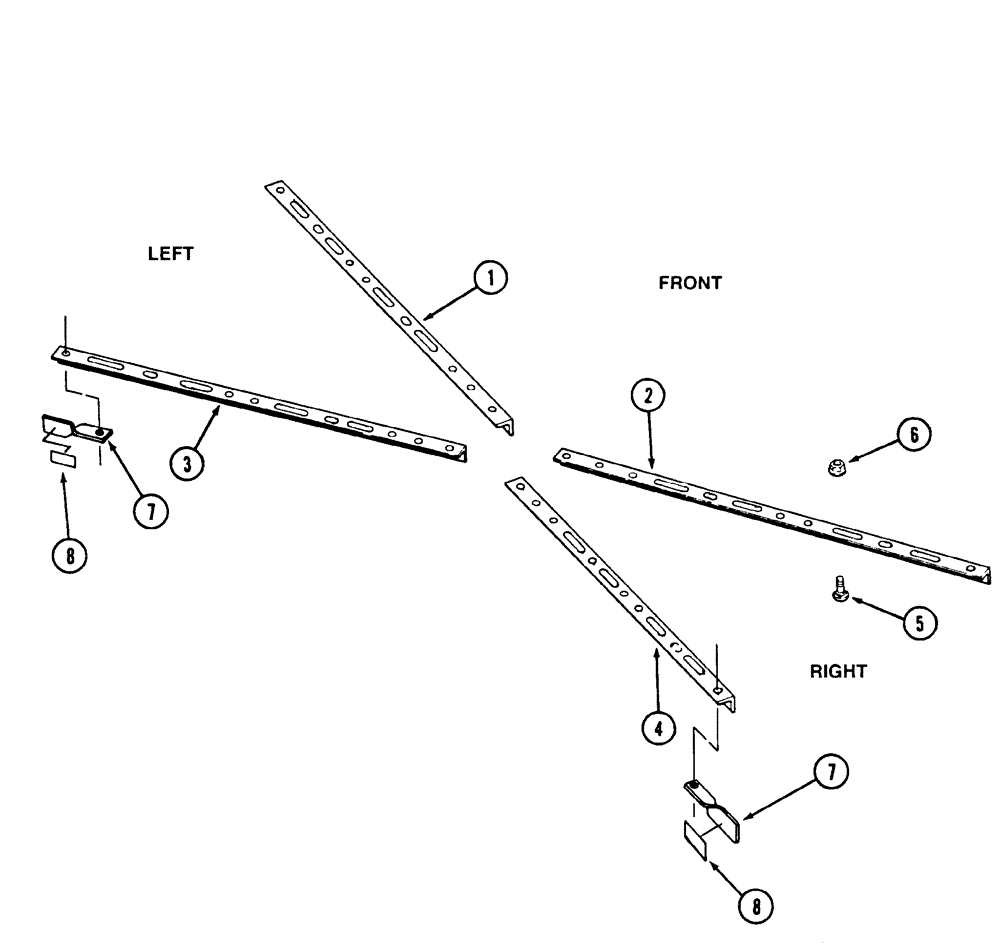

Запчасти Case IH 6800 (9-18) - MAIN GANG SCRAPER SUPPORTS, 12 INCH SPACING (09) - CHASSIS/ATTACHMENTS

1

193533A1

ANGLE BAR

SUPPORT scraper left hand front, 10 foot, replaces 121125A1 support

1шт.

1

199378A1

ANGLE BAR

SUPPORT scraper left hand front, 12 foot

1шт.

1

193536A1

ANGLE BAR

SUPPORT scraper left hand front 14 foot, replaces 121127A1 support

1шт.

1

193543A1

ANGLE BAR

SUPPORT scraper left hand front, 18 foot

1шт.

2

193532A1

ANGLE BAR

SUPPORT scraper right hand front, 10 foot, replaces 121126A1 support

1шт.

2

199379A1

ANGLE BAR

SUPPORT scraper right hand front, 12 foot

1шт.

2

193537A1

ANGLE BAR

SUPPORT scraper right hand front, 14 foot, replaces 121128A1 support

1шт.

2

193544A1

ANGLE BAR

SUPPORT scraper right hand front, 18 foot

1шт.

3

121126A1

ANGLE BAR

SUPPORT scraper left hand rear, 10 foot

1шт.

3

199380A1

ANGLE BAR

SUPPORT scraper left hand rear, 12 foot

1шт.

3

121128A1

ANGLE BAR

SUPPORT scraper left hand rear, 14 foot

1шт.

3

121130A1

ANGLE BAR

SUPPORT scraper left hand rear, 18 foot

1шт.

4

121125A1

ANGLE BAR

SUPPORT scraper right hand rear, 10 foot

1шт.

4

199381A1

ANGLE BAR

SUPPORT scraper right hand rear, 12 foot

1шт.

4

121127A1

ANGLE BAR

SUPPORT scraper right hand rear, 14 foot

1шт.

4

121129A1

ANGLE BAR

SUPPORT scraper right hand rear, 18 foot

1шт.

5

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

carriage 5/8 NC x 1-3/4 inch 8 required for 10 foot support

1шт.

6

1256884C1

NUT

hex flange, self locking, special, 5/8 inch NC, grade 88 required for 10 foot support

1шт.

7

131947C1

SUPPORT

CLIP reflector

1шт.

8

1284374C1

REFLECTOR,Reflector Red

red

2шт.
