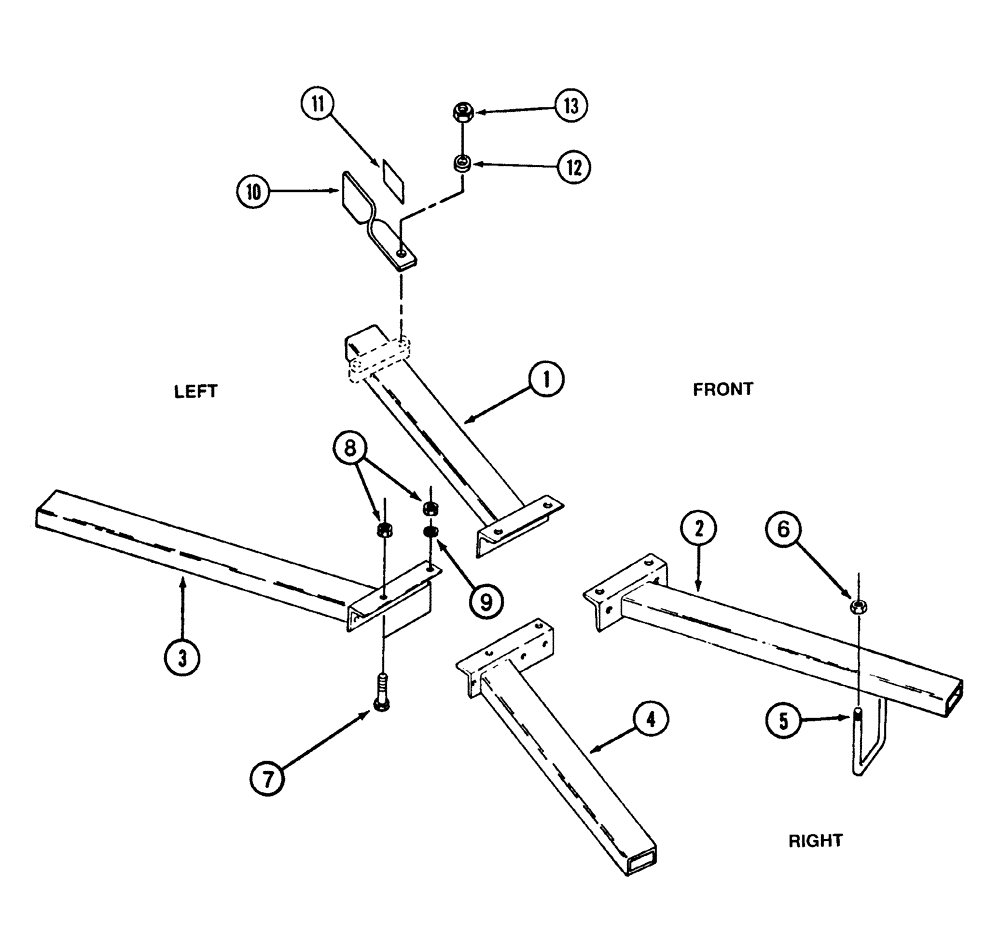

Запчасти Case IH 6800 (9-16) - MAIN GANG TUBES (09) - CHASSIS/ATTACHMENTS

1

120370A1

CHASSIS

FRAME gang, left hand front 10 foot

1шт.

When replacing left-hand front gang, amber reflector and bracket must be ordered and installed on left-hand front spirng eye bolt 100514A.

1шт.

1

198798A1

CHASSIS

FRAME gang, left hand front 12 foot

1шт.

When replacing left-hand front gang, amber reflector and bracket must be ordered and installed on left-hand front spirng eye bolt 100514A.

1шт.

1

119150A1

CHASSIS

FRAME gang, left hand front 14 foot

1шт.

When replacing left-hand front gang, amber reflector and bracket must be ordered and installed on left-hand front spirng eye bolt 100514A.

1шт.

1

119151A1

CHASSIS

FRAME gang, left hand front 18 foot

1шт.

When replacing left-hand front gang, amber reflector and bracket must be ordered and installed on left-hand front spirng eye bolt 100514A.

1шт.

2

119149A1

CHASSIS

FRAME gang, right hand front 10 foot

1шт.

2

198796A1

CHASSIS

FRAME gang, right hand front 12 foot

1шт.

2

120372A1

CHASSIS

FRAME gang, right hand front 14 foot

1шт.

2

120373A1

CHASSIS

FRAME gang, right hand front 18 foot

1шт.

3

119153A1

CHASSIS

FRAME gang, left hand rear 10 foot

1шт.

3

198797A1

CHASSIS

FRAME gang, left hand rear 12 foot

1шт.

3

119154A1

CHASSIS

FRAME gang, left hand rear 14 foot

1шт.

3

119155A1

CHASSIS

FRAME gang, left hand rear 18 foot

1шт.

4

120371A1

CHASSIS

FRAME gang, right hand rear 10 foot

1шт.

4

198795A1

CHASSIS

FRAME gang, right hand rear 12 foot

1шт.

4

120375A1

CHASSIS

FRAME gang, right hand rear 14 foot

1шт.

4

120374A1

CHASSIS

FRAME gang, right hand rear 18 foot

1шт.

5

97763C1

U-BOLT

BOLT "U" gang mounting

1шт.

6

232-41112

NUT,3/4"-10, GC

1шт.

7

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

BOLT hex, 7/8 NC x 3 inch

1шт.

8

231-41114

LOCK NUT,7/8"-9, GB

hex, self locking, 7/8 inch NC

1шт.

9

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

1шт.

10

131947C1

SUPPORT

CLIP reflector

1шт.

11

1284365C1

REFLECTOR,Reflector Amber

amber

1шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

13

425-108

NUT,1/2" - 13, Gr 5

1шт.
