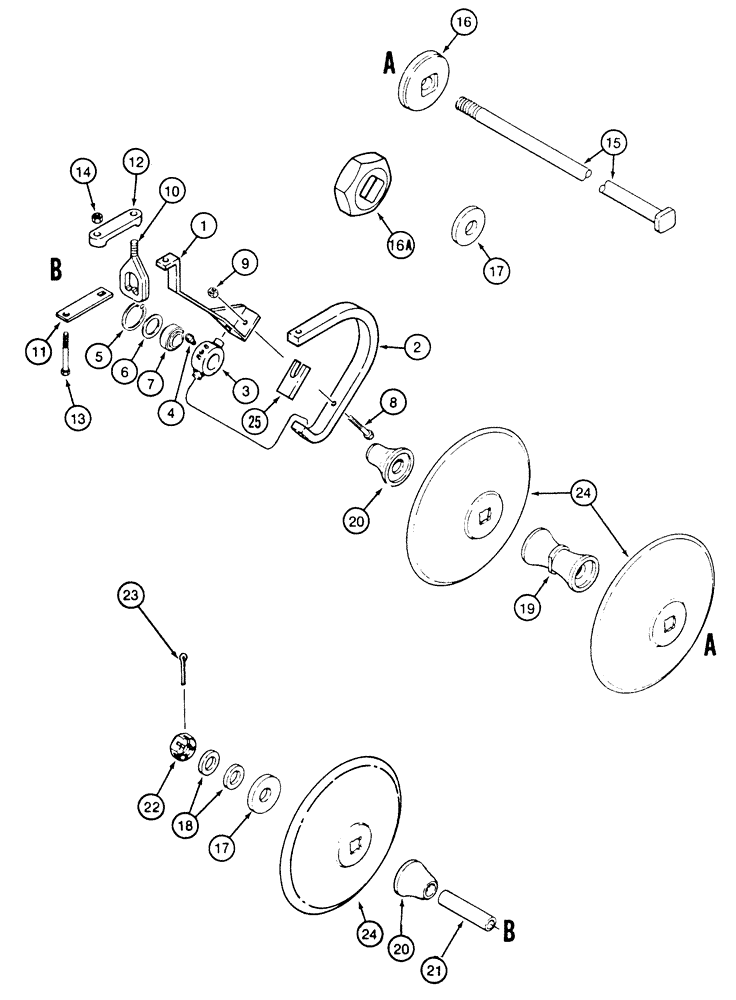

Запчасти Case IH 6800 (9-14) - CUSHION DISK GANG, TRUNNION MOUNTED BEARING (09) - CHASSIS/ATTACHMENTS

1

100516A1

SUPPORT

scraper/trunnion, right hand not shown

1шт.

1

100515A1

SUPPORT

scraper/trunnion, left hand

1шт.

2

100513A1

SPRING

cushion gang

1шт.

100517A1

BALL BEARING,44.96mm ID x 57.53mm OD x 46.04mm W

TRUNNION ASSEMBLY

1шт.

3

TRUNNION bearing, order 100517A1 assembly 1

1шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

5

100-21334

SNAP RING,3.346", Int, #334

1шт.

6

100724A1

WASHER,59mm ID x 84mm OD x 3mm Thk

WASHER retaining, bearing

1шт.

7

100519A1

BALL BEARING,44.96mm ID x 85mm OD x 42.85mm W

trunnion

1шт.

8

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

9

231-42112

NUT,3/4"-10, GB

hex, self locking, 3/4 inch NC

1шт.

10

100514A1

BOLT

BOLT, EYE spring

1шт.

11

1978954C1

LARGE PLATE

PLATE, LARGE BAR bolt retainer

1шт.

12

1980776C1

SUPPORT

bearing clamp

1шт.

13

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

hex, 3/4 NC x 6 inch

1шт.

14

231-42112

NUT,3/4"-10, GB

hex, self locking, 3/4 inch NC

1шт.

15

118889A1

SQUARE BOLT

BOLT arbor for 10 foot gang

4шт.

15

1263539C4

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1937mm, Drilled

BOLT arbor for 12 foot gang

4шт.

15

118890A1

SQUARE BOLT

BOLT arbor for 14 foot gang

4шт.

15

1986271C3

BOLT

BOLT arbor for 18 foot gang

4шт.

16

1344908C1

WASHER

bumper front and rear without furrow filler

2шт.

16a

139927C1

WASHER

WASHER head furrow filler, rear gangs , if used

2шт.

17

139773C1

WASHER

WASHER end

4шт.

18

1284383C1

WASHER

arbor bolt

8шт.

19

118888A1

HUB

SPOOL bearing

1шт.

20

118887A1

HUB

SPOOL bearing

1шт.

21

118886A1

BUSHING,38.91mm ID x 44.45mm OD x 295mm L

support 12 inch

1шт.

22

425-1224

SLOTTED NUT,1 1/2"-6, G5

hex, slotted, 1-1/2 inch NC

4шт.

23

432-1648

COTTER PIN,1/4" x 3"

1/4" x 3"

4шт.

24

31000R1

DISC

concave, square hole, 560 x 5 mm

1шт.

24

30999R1

DISC

concave, round hole, 510 x 5 mm

1шт.

24

31217R2

DISC

solid, 560 x 6.5 mm

1шт.

24

31232R2

DISC

solid, 510 x 6.5 mm

1шт.

24

181602A1

DISC

solid 610 x 6.5 mm

1шт.

25

192568A1

BLOCK

SHIM TRUNNION, if used

1шт.
