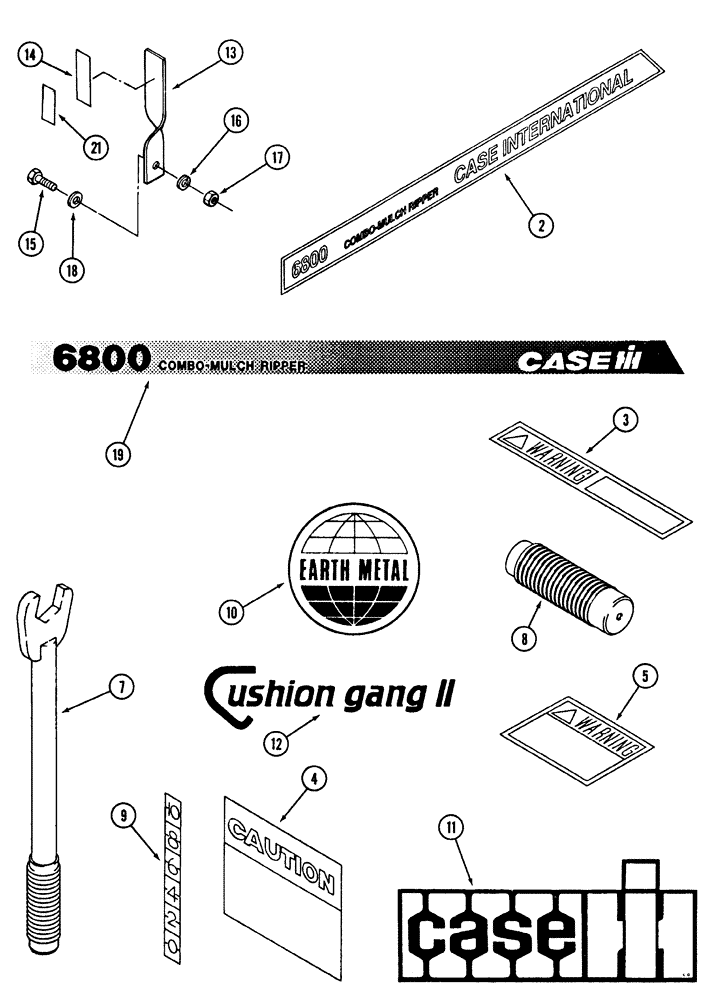

Запчасти Case IH 6800 (9-12) - DECALS AND TOOLS (09) - CHASSIS/ATTACHMENTS

1

140236A1

DECAL

case international 6800 combo mulch ripper, left hand no longer available, order 195255A1 decal

1шт.

2

140237A1

DECAL

6800 combo mulch ripper case international, right hand not shown, no longer available, order 195256A1 decal

1шт.

3

140385A1

DECAL

warning unhitching instructions

1шт.

4

1254170C1

DECAL

caution, read the operator's manual

1шт.

5

140384A1

DECAL

warning, avoid injury from machine falling

2шт.

7

142052A1

KEY

TOOL adjustment

1шт.

8

142719A1

HANDLE

GRIP tool, rubber

1шт.

9

142397A1

DECAL

depth gauge

1шт.

10

147782C1

DECAL

earth metal

1шт.

11

115685A1

DECAL

cushion gang 11

2шт.

12

95731C1

DECAL

case ih trademark 64 x 156 mm

2шт.

13

131947C1

SUPPORT

CLIP reflector

2шт.

part included in seal kit 1284365C2

1шт.

14

1284374C1

REFLECTOR,Reflector Red

red

2шт.

part included in seal kit 1284365C2

1шт.

15

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

17

425-108

NUT,1/2" - 13, Gr 5

2шт.

18

495-21056

WASHER,1/2"

flat, 8/16 x 1-3/8 x 7/64 inch

2шт.

19

195255A1

DECAL

case ih 6800 combo mulch ripper, left hand replaces 140236A2 decal

1шт.

20

195256A1

DECAL

6800 combo mulch ripper case ih, right hand not shown, replaces 140237A1 decal

1шт.

21

1284365C2

REFLECTOR

amber

1шт.

part included in seal kit 1284365C2

1шт.
