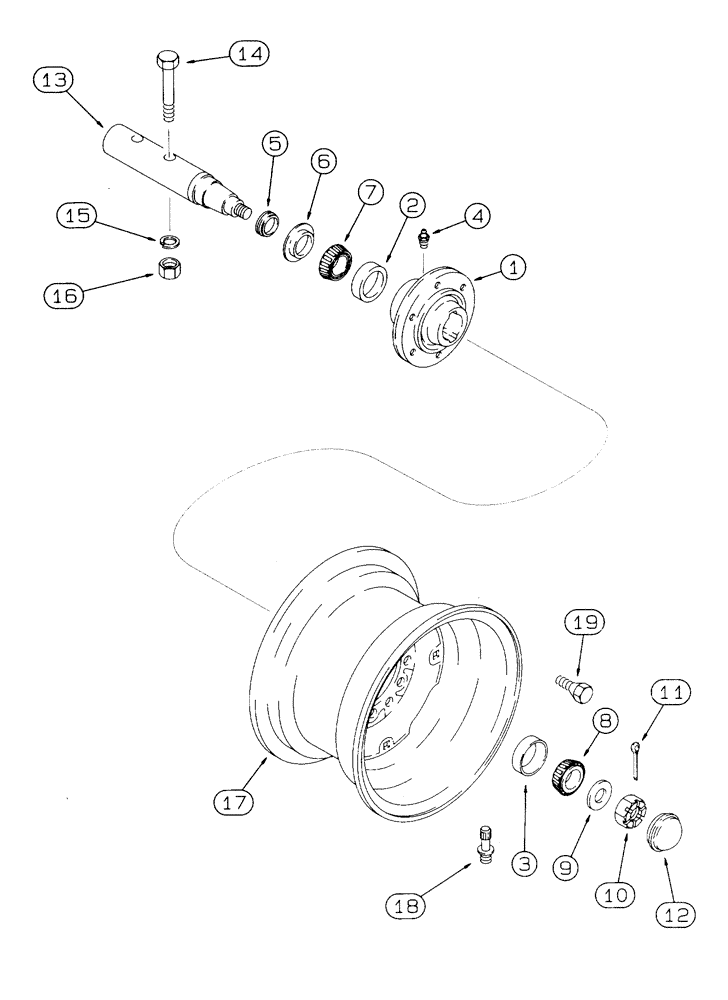

Запчасти Case IH 6800 (9-10) - TRANSPORT WHEELS AND HUBS (09) - CHASSIS/ATTACHMENTS

606468R21

HUB

ASSEMBLY wheel

4шт.

1

NSS

NOT SOLD SEPARAT

HUB wheel, 6 bolt 1

1шт.

2

663558R1

BEARING CUP

tapered roller bearing 2-57/64 inch OD

1шт.

3

651817R1

BEARING CUP

CUP tapered roller bearing

1шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

5

594702R91

SEAL

oil

4шт.

6

594703R1

SLEEVE

RING wear 1/2 inch wide

4шт.

7

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

tapered roller 1-5/8 inch ID

4шт.

8

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

tapered roller

4шт.

9

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

flat, special

4шт.

10

70120D

SLOTTED NUT,7/8"-14

hex, slotted, special, 7/8 inch NC

4шт.

11

432-832

COTTER PIN,1/8" x 2"

1/8" x 2"

4шт.

12

224066C1

HUB CAP

hub replaces 663906R1 cap

4шт.

13

1978726C1

SPINDLE

wheel hub

4шт.

14

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

hex, 1/2 NC x 4 inch

4шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

16

425-108

NUT,1/2" - 13, Gr 5

4шт.

17

A57879

RIM

WHEEL 15 x 8 inch use 11-15 tire, purchase locally, tandem only

4шт.

17

1277504C1

RIM

WHEEL WHEEL transport 15 x 10 inch bogie only

4шт.

18

810769C1

VALVE

inflation

4шт.

19

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

hex, conical, 1/2 NF x 1-5/32 inch

24шт.
