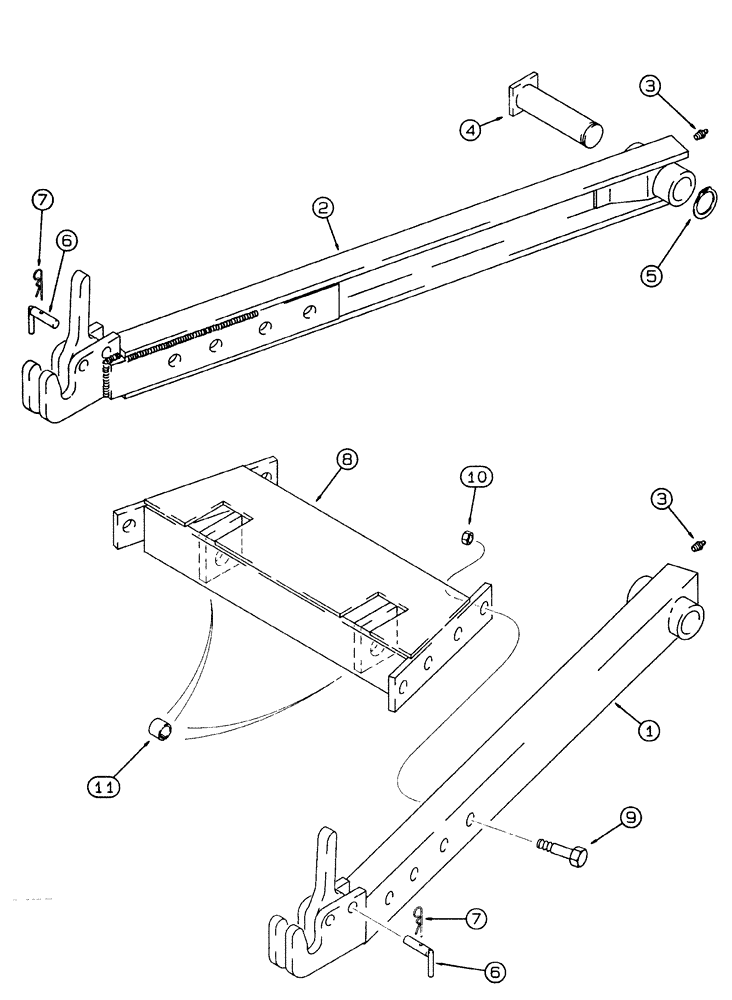

Запчасти Case IH 6800 (9-08) - UNDERSLUNG HITCH (09) - CHASSIS/ATTACHMENTS

1

220310A1

ARM

underslung hitch, right hand replaces 142067A1 arm

1шт.

2

220309A1

ARM

underslung hitch, left hand replaces 142068A1 arm

1шт.

3

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING grease, straight, 1/4-28 taper x 11/16 inch

2шт.

4

142028A1

PIN

underslung arm to main frame

2шт.

5

100-16175

SNAP RING,#175, Ext

2шт.

6

142029A1

PIN

quick latch

2шт.

7

136-164

COTTER PIN,Int, 5/16" x .120"

hair, 5/16 x 2-25/32 inch

2шт.

8

142071A1

LINK

LINK lift, underslung hitch

1шт.

9

426-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

8шт.

10

231-41112

LOCK NUT,3/4"-10, GB

8шт.

11

142295A1

BUSHING

Tension, 1 inch ID

2шт.
