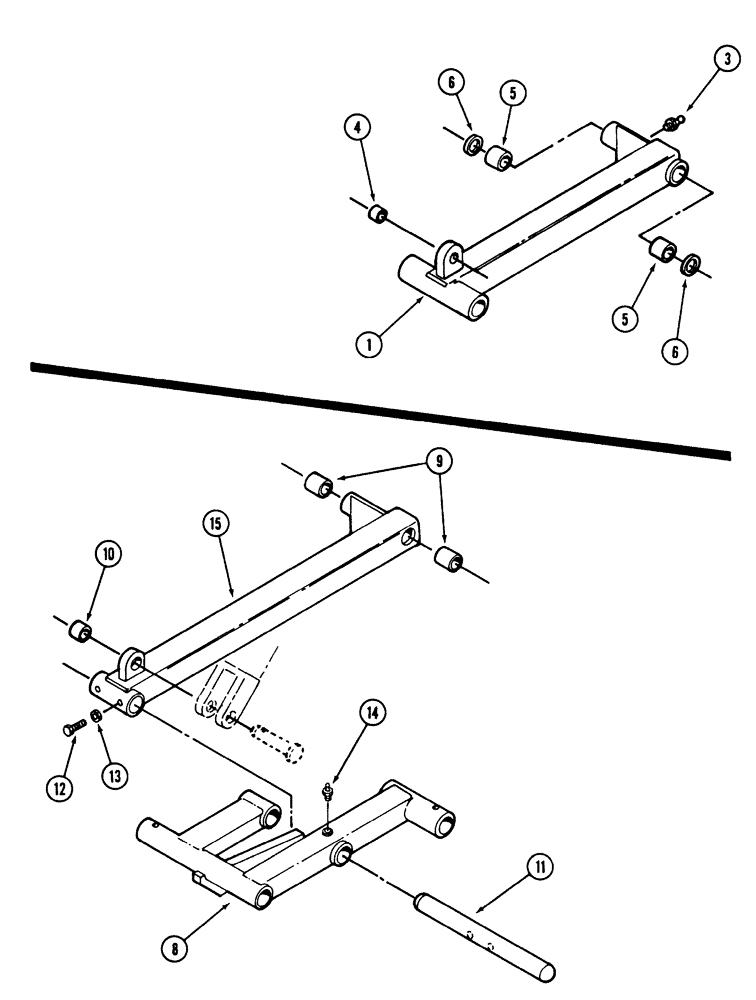

Запчасти Case IH 6800 (9-06) - TRANSPORTATION ARMS, TANDEM - IF USED / BOGIE - IF USED (09) - CHASSIS/ATTACHMENTS

1

142065A1

ARM

transport wheel, right hand not shown

1шт.

2

142066A1

ARM

transport wheel, left hand

1шт.

3

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING grease, straight, 1/4-28 taper x 11/16 inch

2шт.

4

142295A1

BUSHING

Tension, 1 inch ID

2шт.

5

142303A1

BUSHING

Nylon, 1-3/4 ID x 1-5/16 inch OD

4шт.

6

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

flat 1-25/32 x 2-1/2 x 7/64

4шт.

7

199775A1

SUPPORT

AXLE bogie, right hand not shown

2шт.

8

199776A1

SUPPORT

AXLE bogie, left hand

1шт.

9

199779A1

BUSHING

bogie axle

4шт.

10

199780A1

BUSHING

bogie arm

2шт.

11

199781A1

PIVOT PIN

pivot

2шт.

12

485-16224

SET SCREW,Sq Hd, 5/8"-11 x 1 1/2"

set, square head, 5/8 NC x 1-1/2 inch, cup point pivot pin

4шт.

13

425-1410

JAM NUT,Jam, 5/8"-11, G5

hex, jam, 5/8 inch NC

4шт.

14

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

15

199777A1

ARM

bogie, right hand not shown

1шт.

16

199778A1

ARM

bogie, left hand

1шт.
