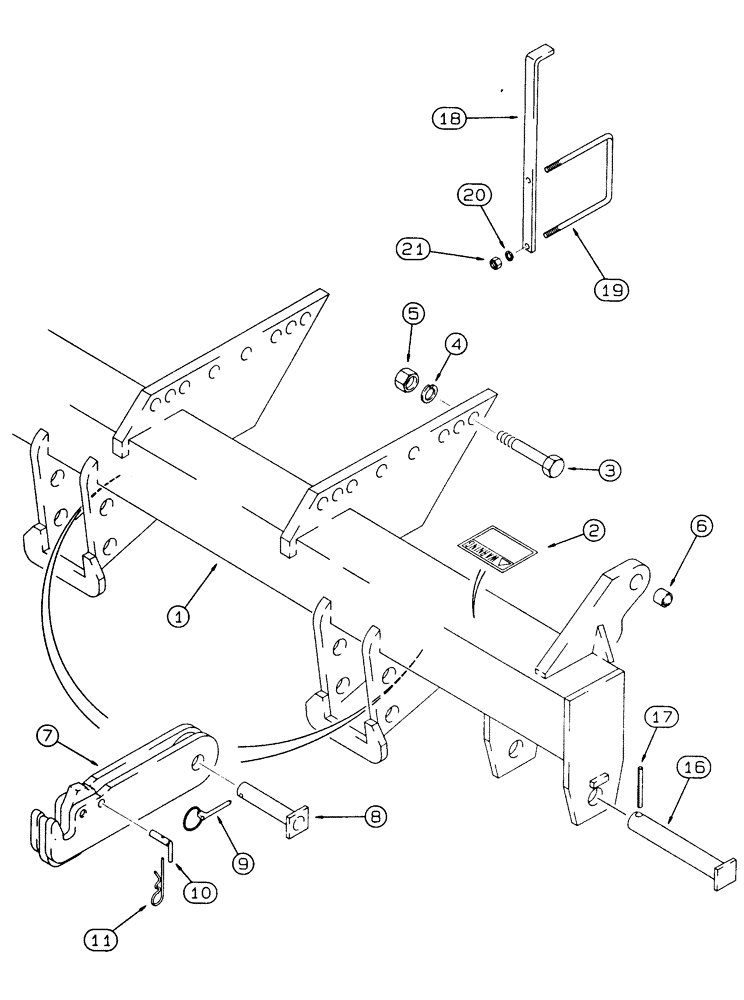

Запчасти Case IH 6800 (9-04) - REAR FRAME, TRANSPORT ARMS AND RIPPER MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

175927A1

CHASSIS

FRAME rear transportation wheels and ripper mounting

1шт.

2

140384A1

DECAL

warning, avoid injury from machine falling

2шт.

3

426-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

20шт.

4

492-11075

LOCK WASHER,3/4"

3/4"

20шт.

5

425-1012

NUT,3/4"-10, G5

16шт.

6

142295A1

BUSHING

Tension, 1 inch ID

2шт.

7

175929A1

HOOK

LINK flex mounting 20 inch rear, Serial Range: frame-ripper

2шт.

8

142296A1

PIN

flex link to frame, 1.44 dia. and 8.13 long

1шт.

9

392181R1

SPLIT PIN/SAFETY PIN,11.13mm OD

click

1шт.

10

142029A1

PIN

quick latch

2шт.

11

136-164

COTTER PIN,Int, 5/16" x .120"

hair, 5/16 x 2-25/32 inch

2шт.

16

142024A1

PIN

transport arm

2шт.

17

38-12440

LOCK PIN,3/8" x 2 1/2", Slotted

2шт.

18

142062A1

SUPPORT

BRACKET storage depth collar

1шт.

19

142372A1

U-BOLT

, Serial Range: bracket-frame

1шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

425-106

NUT,3/8"-16, Cl 5

2шт.
