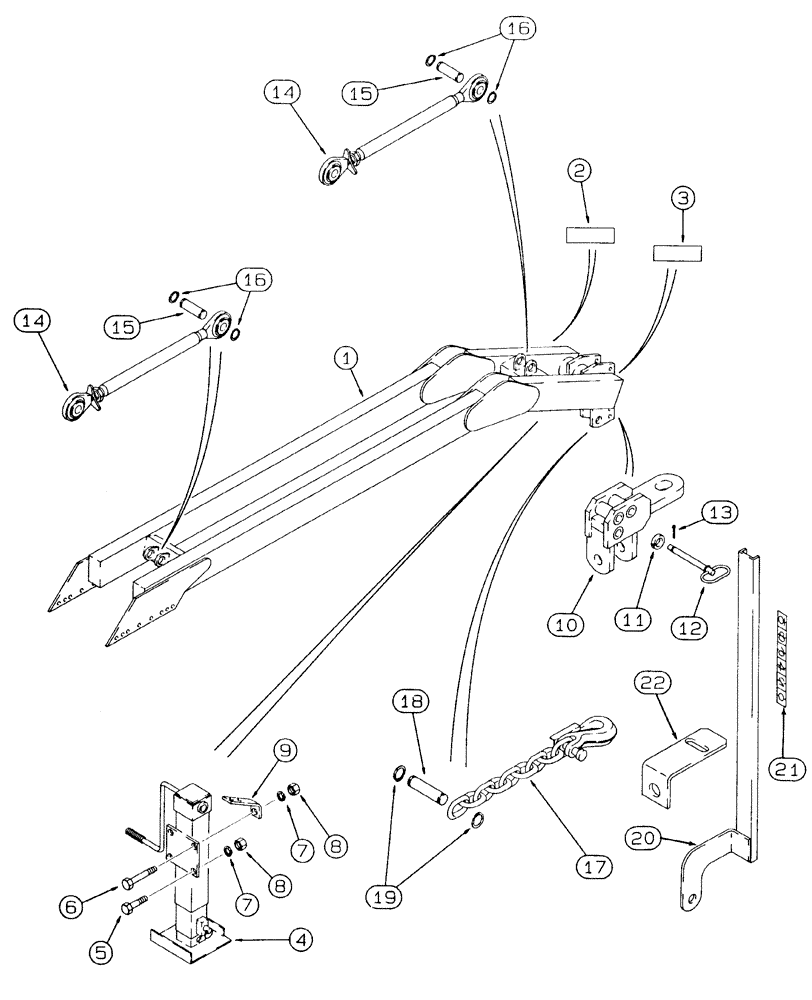

Запчасти Case IH 6800 (9-02) - MAIN FRAME, HITCH AND JACK (09) - CHASSIS/ATTACHMENTS

1

175925A1

CHASSIS

FRAME main

1шт.

2

140385A1

DECAL

warning, unhitching instructions

1шт.

3

1254170C1

DECAL

caution, read the operator's manual

1шт.

4

142034A1

STAND

JACK parking

1шт.

5

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

6

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

1шт.

7

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

8

425-1012

NUT,3/4"-10, G5

4шт.

9

142037A1

SUPPORT

BRACKET mounting, check valve

1шт.

10

142038A1

HOOK

HITCH, Serial Range: frame-tractor

1шт.

11

143175A1

SPACER

hitch, 2.04" ID x 3.13" OD x .75 thick

1шт.

12

142342A1

PIN

1 x 6 inch, Serial Range: hitch-frame

2шт.

13

432-1228

COTTER PIN,3/16" x 1 3/4"

2шт.

14

220308A1

ARM

LINK adjustable main frame to ripper frame and disks, replaces 142343A1 link

2шт.

15

142048A1

PIN

link to frame, 1-1/4 dia. x 4-1/8" long snap ring style

2шт.

16

100-16125

SNAP RING,#125, Ext

4шт.

17

63506C3

CHAIN (AG)

hitch, 3/8 link x 59-7/64 inch

1шт.

18

142061A1

PIN

transport chain

1шт.

19

100-11143

SNAP RING,#143, Ext

2шт.

20

142035A1

GAUGE

depth

1шт.

21

142397A1

DECAL

depth gauge

1шт.

22

142036A1

GUIDE

depth gauge

1шт.
