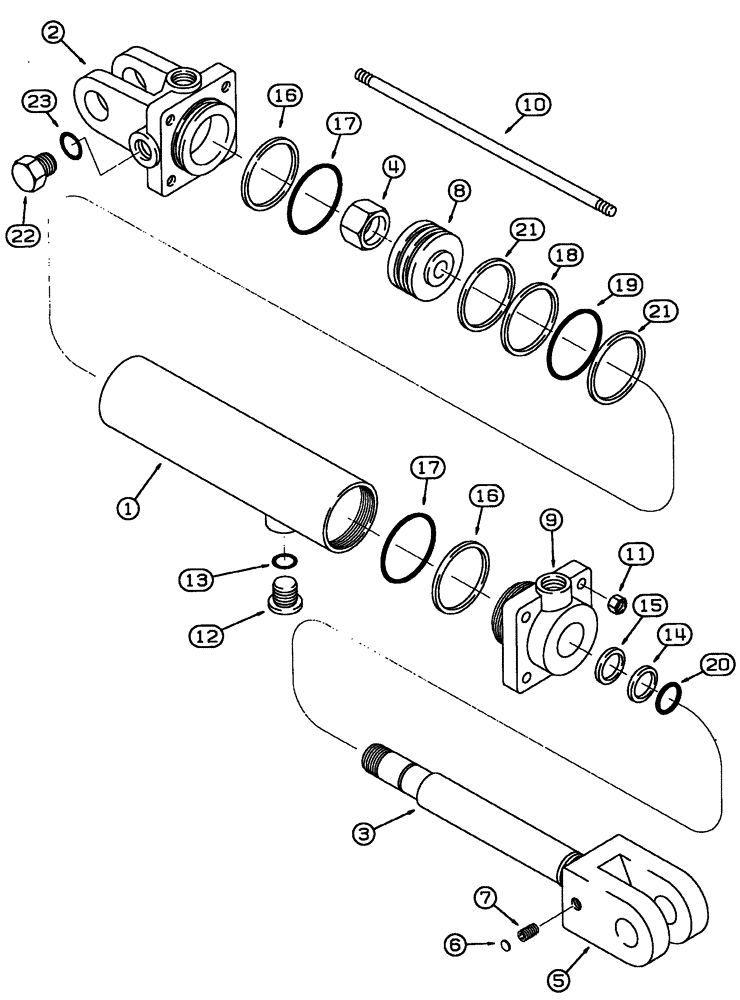

Запчасти Case IH 6800 (8-10) - LEFT-HAND TRANSPORT LIFT CYLINDER - 142080A1, 4-1/2 INCH (114 MM) ID (08) - HYDRAULICS

142080A1

CYLINDER ASSY.

4-1/2 (114) ID x 16 inch (406 mm) stroke transport lift, left hand

1шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

1

NSS

NOT SOLD SEPARAT

cylinder 1

1шт.

2

1954155C1

JACK HEAD

end

1шт.

3

143211A1

PISTON ROD

piston

1шт.

4

143208A1

LOCK NUT

hex, self locking, Serial Range: piston-rod

1шт.

5

143213A1

RAM FORK

piston rod

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

insert

1шт.

7

483-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

set, hex socket headless, 3/8 NC x 1/2 inch, cup point

1шт.

8

1954189C1

JACK PISTON

cylinder

1шт.

9

143212A1

CYLINDER END CAP

cylinder

1шт.

10

92873C1

THREADED ROD,3/4" - 10 x 21.812"

tie, cylinder retaining

4шт.

11

425-1410

JAM NUT,Jam, 5/8"-11, G5

hex, jam, 5/8 inch NC

4шт.

12

143204A1

PLUG

hex socket, special, 3/4-16 inch O ring boss

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of Seal Kit P/N 143215A1

1шт.

14

NSS

NOT SOLD SEPARAT

piston rod 1

1шт.

Part of Seal Kit P/N 143215A1

1шт.

15

NSS

NOT SOLD SEPARAT

piston rod 1

1шт.

Part of Seal Kit P/N 143215A1

1шт.

16

NSS

NOT SOLD SEPARAT

back up, end cap and gland O ring 2

1шт.

Part of Seal Kit P/N 143215A1

1шт.

17

NSS

NOT SOLD SEPARAT

end cap and gland 2

1шт.

Part of Seal Kit P/N 143215A1

1шт.

18

NSS

NOT SOLD SEPARAT

piston 1

1шт.

Part of Seal Kit P/N 143215A1

1шт.

19

NSS

NOT SOLD SEPARAT

piston, large 1

1шт.

Part of Seal Kit P/N 143215A1

1шт.

20

NSS

NOT SOLD SEPARAT

piston, small 1

1шт.

Part of Seal Kit P/N 143215A1

1шт.

14

NSS

NOT SOLD SEPARAT

piston rod 1

1шт.

Part of Seal Kit P/N 143215A1

1шт.

22

218-775

PLUG,3/4"-16, 37 Degree

Hex

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of Seal Kit P/N 143215A1

1шт.

143215A1

SEAL KIT

KIT includes Refs 13 through 20

1шт.
