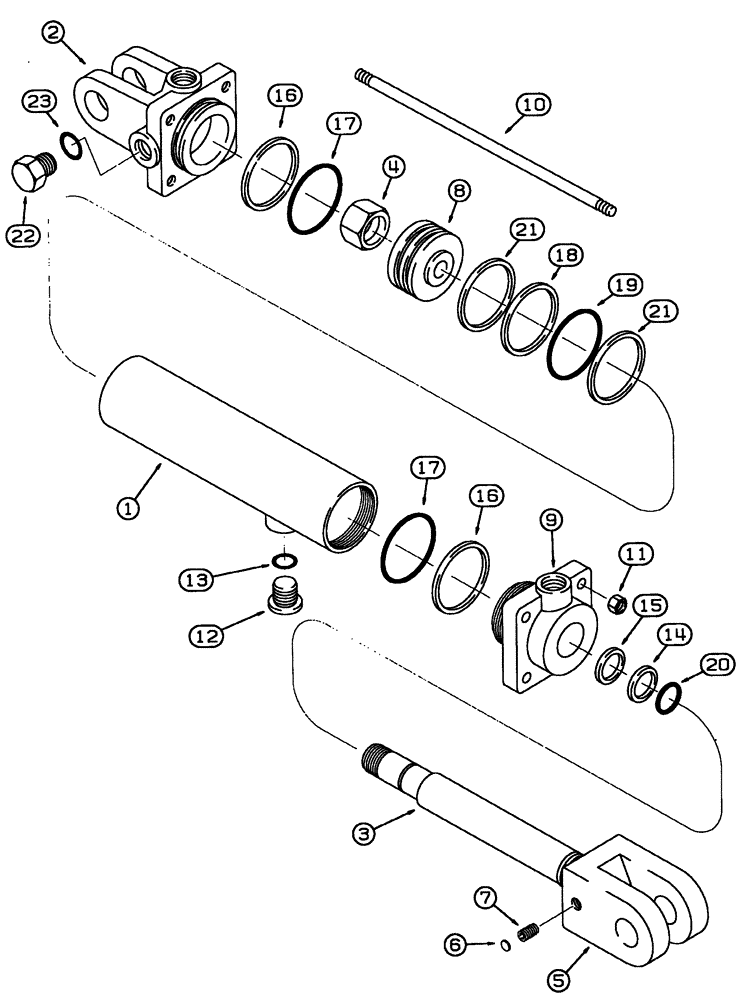

Запчасти Case IH 6800 (8-08) - RIGHT-HAND TRANSPORT LIFT CYLINDER - 142081A2, 4 INCH (102 MM) ID (08) - HYDRAULICS

142081A2

CYLINDER ASSY.

4 (102) ID x 16 inch (406 mm) stroke transport lift, right hand

1шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

1

143201A1

HYD CYL SLEEVE

TUBE

1шт.

2

1272919C1

CYLINDER HEAD

CAP end

1шт.

3

182039A1

PISTON ROD

1шт.

4

H438714

LOCK NUT,7/8" - 14

hex , self locking

1шт.

5

182039A1

PISTON ROD

CLEVIS

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD insert

1шт.

7

483-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

set, hex socket headless, 3/8 NC x 1/2 inch, cup point

1шт.

8

92521C1

PISTON

cylinder

1шт.

9

80559C1

CYLINDER END CAP

GLAND

1шт.

10

145251C1

THREADED ROD,5/8" - 11 x 539mm

BOLT tie, cylinder retaining

4шт.

11

425-1410

JAM NUT,Jam, 5/8"-11, G5

hex, jam 5/8 inch NC

4шт.

12

143204A1

PLUG

hex socket, special, 3/4-16 inch O ring boss

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

part included in seal kit 143205A1

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER piston rod 1

1шт.

part included in seal kit 143205A1

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL piston rod 1

1шт.

part included in seal kit 143205A1

1шт.

16

NSS

NOT SOLD SEPARAT

RING back up, end cam and gland O ring 2

2шт.

part included in seal kit 143205A1

1шт.

17

NSS

NOT SOLD SEPARAT

O RING end cap and gland 2

2шт.

part included in seal kit 143205A1

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL piston 1

1шт.

part included in seal kit 143205A1

1шт.

19

NSS

NOT SOLD SEPARAT

O RING piston, large 1

1шт.

part included in seal kit 143205A1

1шт.

20

NSS

NOT SOLD SEPARAT

O RING piston, small 1

1шт.

part included in seal kit 143205A1

1шт.

21

143203A1

SEALING RING

SEAL WASHER RING wear, piston

2шт.

part included in seal kit 143205A1

1шт.

22

218-775

PLUG,3/4"-16, 37 Degree

Hex

1шт.

part included in seal kit 143205A1

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

143205A1

SEAL KIT

KIT includes Refs 13 through 23

1шт.
