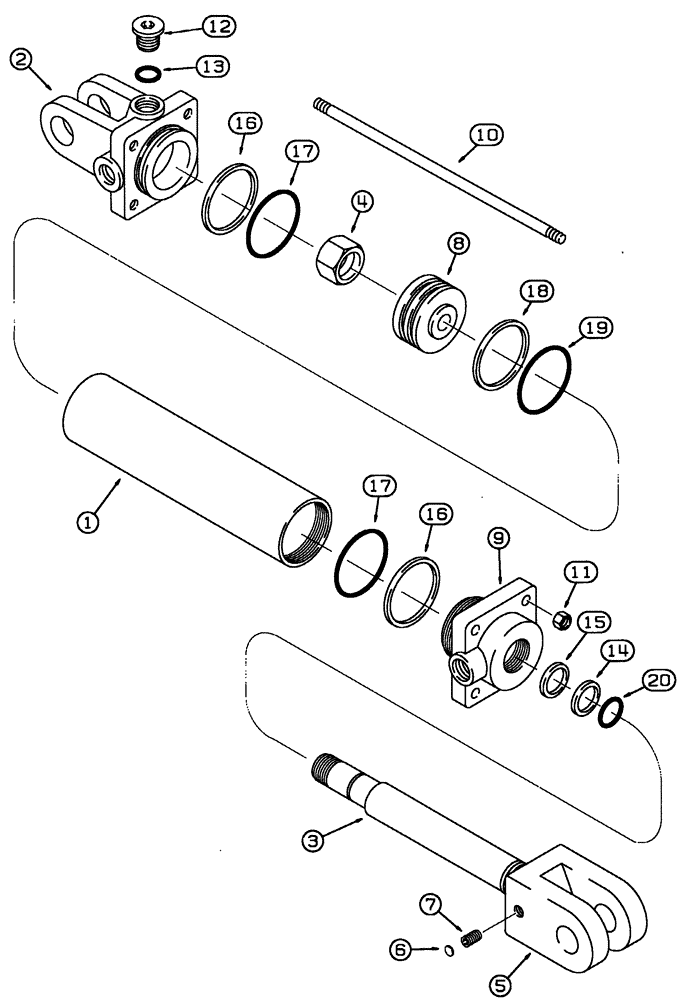

Запчасти Case IH 6800 (8-06) - UNDERSLUNG HITCH CYLINDER - 140281A1 (08) - HYDRAULICS

140281A1

CYLINDER ASSY.

2-1/2 (64) ID x 8 inch (203 mm) stroke underslung hitch

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder 1

1шт.

2

1272766C1

HEAD

CAP end, cylinder

1шт.

3

145231C1

PISTON ROD

1шт.

4

232-46314

LOCK NUT,7/8"-14, GC

1шт.

5

145233C1

CLEVIS,1/4" - 12

rod

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD insert

1шт.

7

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

set, hex socket headless, 3/8 NC x 3/8 inch, cup point

1шт.

8

145221C3

PISTON

cylinder

1шт.

9

1272767C1

CYLINDER END CAP

GLAND

1шт.

10

1272747C1

TIE-ROD,7/16" - 14 x 12.25mm

BOLT tie, 7/16 inch NC

1шт.

11

425-107

NUT,7/16"-14, G5

4шт.

12

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

part included in seal kit 79975C2

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER piston rod 1

1шт.

part included in seal kit 79975C2

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL piston rod 1

1шт.

part included in seal kit 79975C2

1шт.

16

NSS

NOT SOLD SEPARAT

RING back up, end cap and gland O ring 2

2шт.

part included in seal kit 79975C2

1шт.

17

NSS

NOT SOLD SEPARAT

O RING end cap and gland 2

2шт.

part included in seal kit 79975C2

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL piston 1

1шт.

part included in seal kit 79975C2

1шт.

19

NSS

NOT SOLD SEPARAT

O RING piston, large 1

1шт.

part included in seal kit 79975C2

1шт.

20

NSS

NOT SOLD SEPARAT

O RING piston, small 1

1шт.

part included in seal kit 79975C2

1шт.

79975C2

SEAL KIT

KIT replacement includes Refs. 13 through 20

1шт.
