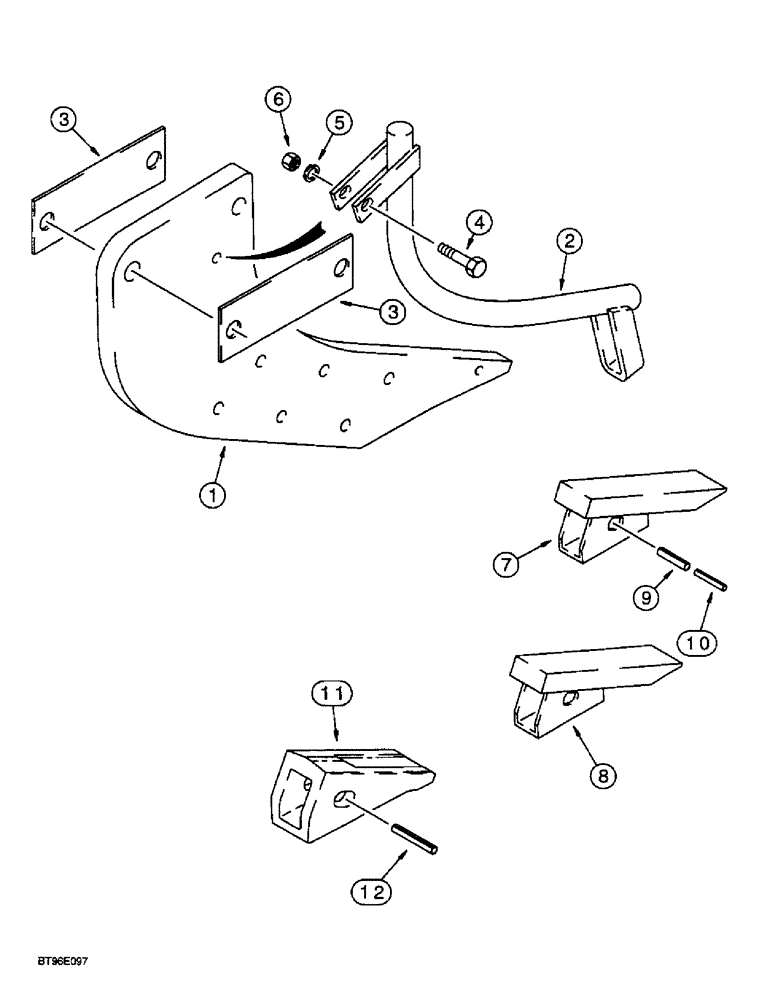

Запчасти Case IH 14 (9-96) - SHANK KIT, HIGH PENETRATION, RETROFIT FOR MODEL 14 AUTO-TRIP RIPPERS BUILT PRIOR TO 1995

191328A1

KIT

shank, retrofit, high penetration, consists of 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

SHANK

1шт.

2

188764A1

BAR ASSY.

SHIN

1шт.

3

179598A1

SPACER

2шт.

4

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

5

492-11038

LOCK WASHER,3/8"

1шт.

6

425-106

NUT,3/8"-16, Cl 5

1шт.

7

179335A1

POINT

heat treated steel, 2 in (51 mm)

1шт.

8

190727A1

POINT

heat treated steel, 2-1/2 in (64 mm)

1шт.

9

438-31432

PIN,5.54mm OD x 50.8mm L, Coiled

1шт.

10

438-32432

PIN,9.53mm OD x 50.8mm L

1шт.

11

1986110C1

POINT

cast, extended wear, 2-1/2 in (64 mm)

1шт.

12

38-12440

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, LOCK, 3/8" x 2 1/2", Slotted

1шт.

13

B505282

POINT

cast alloy, deep suck, not illustrated

1шт.
