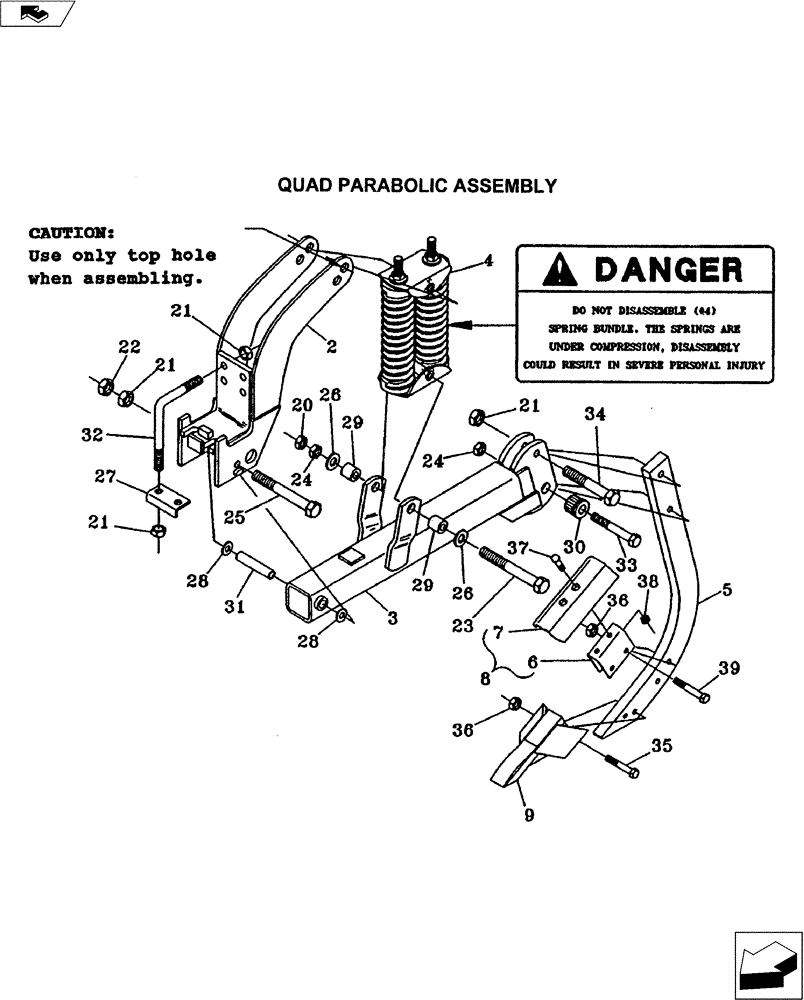

Запчасти Case IH 1000 (75.200.02) - QUAD PARABOLIC ASSEMBLY (75) - SOIL PREPARATION

1

09651507

SHANK

Quad Parabolic Less Point (Not Shown)

1шт.

2

09581150

BRACKET

Parabolic Mount

1шт.

3

09651300

BEAM ASSY.

Parabolic Shank Pivot

1шт.

4

09651500

SPRING

Quad Assy.

1шт.

5

33020040

SHANK

Parabolic

1шт.

6

09580750

HITCH BRACKET

Parabolic Cover Attachment

1шт.

7

33310076

LANDSIDE

Parabolic 4" Cover'Attachment w/Hardware

1шт.

8

09580060

BRACKET

Parabolic Covering Point Assy., Includes Ref. 6-7 & Hardware

1шт.

9

09729002

POINT

Q/P Tiger - Other

1шт.

9

09729000

POINT

Parabolic MV Chisel Assy.

1шт.

9

09729001

POINT

Parabolic Winged Point Assy.

1шт.

20

NSS

NOT SOLD SEPARAT

5/8" NC Hex., Jam Nut

2шт.

21

NSS

NOT SOLD SEPARAT

3/4" NC Hex., Nut

6шт.

22

NSS

NOT SOLD SEPARAT

3/4" NC Hex., Jam Nut

1шт.

23

16901025

CAPSCREW,Hex, 5/8" - 11 x 7 1/2", Spcl, Gr 5

5/8" x 7-1/2" NC Hex., Bolt, Gd. 5

2шт.

24

NSS

NOT SOLD SEPARAT

5/8" NC Hex., Nut

3шт.

25

16901232

SPECIAL BOLT

3/4" x 7-1/2" NC Hex., Gd. 5

1шт.

26

NSS

NOT SOLD SEPARAT

5/8" Std., Washer Z.P.

4шт.

27

09561200

PLATE

Formed

1шт.

28

495-81038

WASHER,25/32" x 1 1/4" x .075"

14 Ga., Machined Bushing

1шт.

29

44006201

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

H.T.

4шт.

30

44006510

BUSHING

Serrated H.T.

2шт.

31

44007500

BUSHING,19.56mm ID x 25.91mm OD x 127mm L

5" H.T.

1шт.

32

16512460

3/4" NC x 5.69" x 8.19"

2шт.

33

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

NC

1шт.

34

16901215

BOLT

3/4" x 3-3/4" A325 Hex., Gd. 5

1шт.

35

NSS

NOT SOLD SEPARAT

1/2" x 2-1/4" NC Hex., Bolt, Gd. 5

1шт.

36

NSS

NOT SOLD SEPARAT

1/2" NC Hex., Nut

3шт.

37

420-2720

PLOW BOLT,#3, 7/16" - 14 x 1 1/4", Gr 8

2шт.

38

NSS

NOT SOLD SEPARAT

7/16" x NC Hex., Nut

2шт.

39

NSS

NOT SOLD SEPARAT

1/2" x 2-1/2" Hex., Bolt Gd. 5

2шт.
