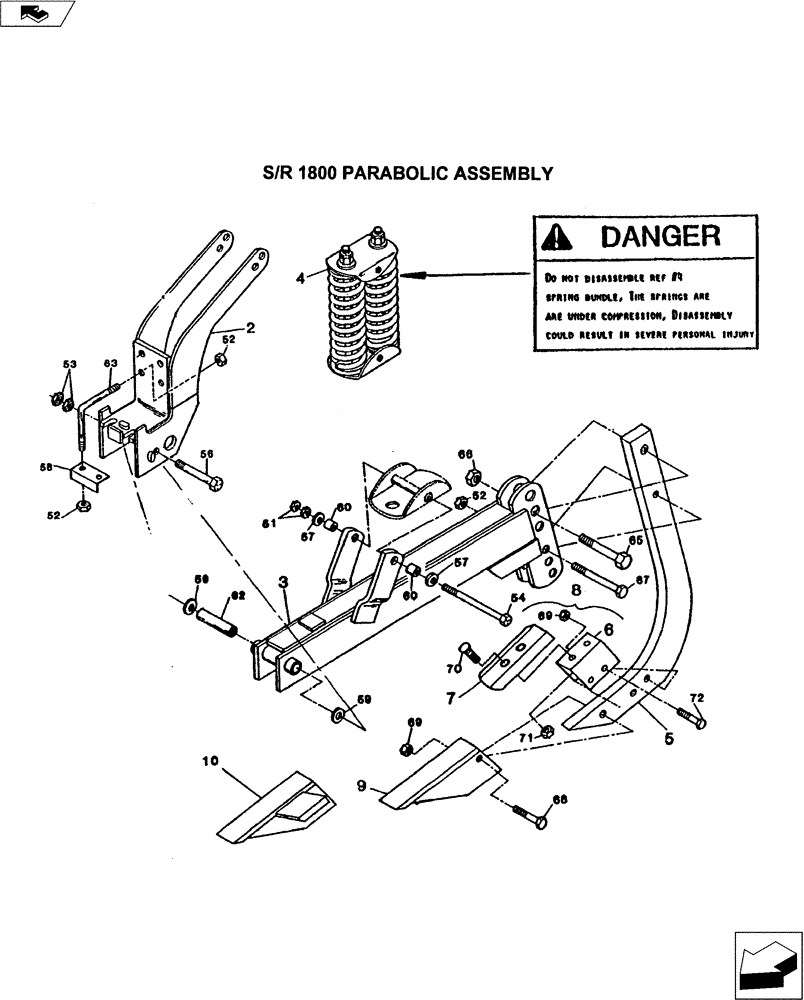

Запчасти Case IH 1000 (75.200.01) - SIR 1800 PARABOLIC ASSEMBLY (75) - SOIL PREPARATION

2

09580100

BRACKET

S/R 1800 Mount

1шт.

3

09580600

SHANK

Parabolic Pivot Beam

1шт.

4

09580350

SPRING BOX

S/R 1800 Bundle

1шт.

5

33020039

SHANK

Parabolic

1шт.

6

09580750

HITCH BRACKET

Parabolic Covering Attachment

1шт.

7

33310076

LANDSIDE

4" Covering Point (with hardware)

1шт.

8

09580060

BRACKET

Parabolic Covering Point Assy., Includes Ref 6-7 & hdwe

1шт.

9

09729000

POINT

Parabolic MV Chisel Assy.

1шт.

10

09729001

POINT

Parabolic Winged Assy.

1шт.

51

NSS

NOT SOLD SEPARAT

1/2" NC Jam Nut

2шт.

52

NSS

NOT SOLD SEPARAT

3/4" NC Hex., Nut

7шт.

53

NSS

NOT SOLD SEPARAT

3/4" NC Hex., Jam Nut

2шт.

54

16900828

CAPSCREW

1/2" x 7" NC Hex., Bolt, Gd.5

1шт.

56

16901231

CAPSCREW

3/4" x 7 NC Hex., Bolt, Gd. 5

1шт.

57

NSS

NOT SOLD SEPARAT

1/2" Standard Washer

2шт.

58

09561200

PLATE

Formed

1шт.

59

495-81038

WASHER,25/32" x 1 1/4" x .075"

3/4" Machine Bushing -14 Ga

2шт.

60

09580322

PLUG

Bushing 5/8" Lg - H.T.

2шт.

62

44007500

BUSHING,19.56mm ID x 25.91mm OD x 127mm L

5" Lg. H.T.

1шт.

63

16512460

2шт.

65

16901615

SPECIAL BOLT

1 x 3-3/4" Hex.

1шт.

66

NSS

NOT SOLD SEPARAT

1" NC Hex., Nut

1шт.

67

424-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 2

NC Cap Screw

1шт.

68

NSS

NOT SOLD SEPARAT

1/2" x 2-1/4" NC Cap Screw Gd.5

1шт.

69

NSS

NOT SOLD SEPARAT

1/2" NC Hex., Nut Gd. 2

3шт.

70

420-2720

PLOW BOLT,#3, 7/16" - 14 x 1 1/4", Gr 8

2шт.

71

NSS

NOT SOLD SEPARAT

7/16" NC Hex., Nut

2шт.

72

NSS

NOT SOLD SEPARAT

1/2" x 2-1/2" Hex., Bolt

2шт.
