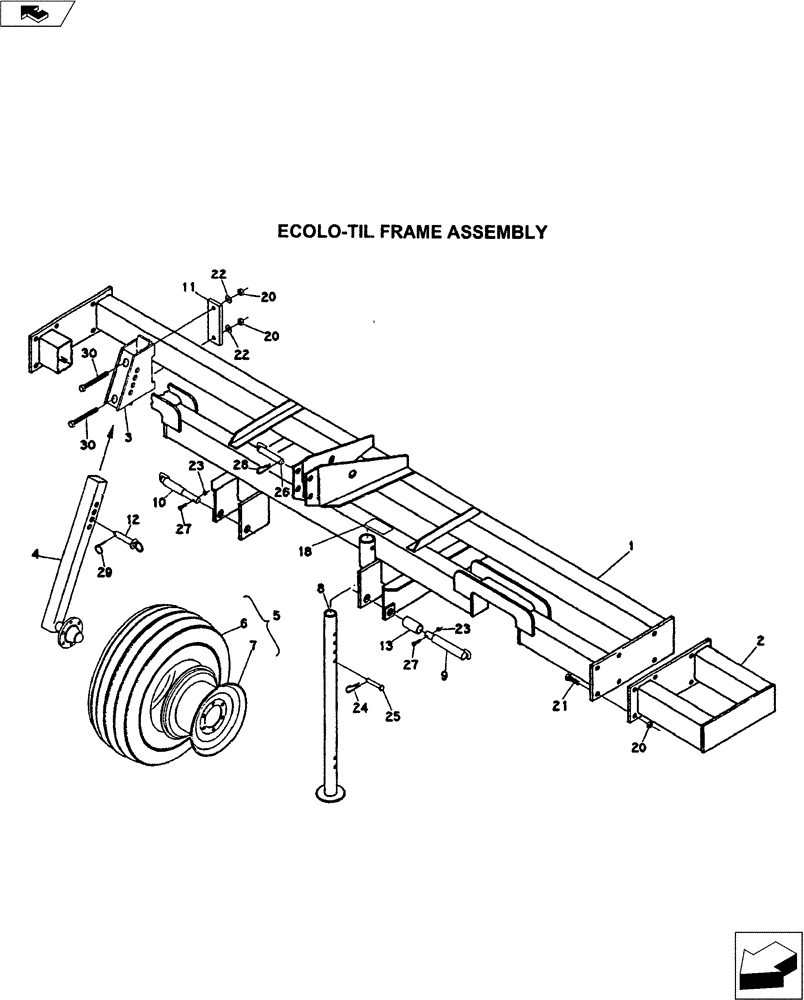

Запчасти Case IH 1000 (39.100.02) - ECOLO-TIL FRAME ASSEMBLY (39) - FRAMES AND BALLASTING

1

02380100

FRAME

Main Assembly

1шт.

2

02380250

BAR ASSY.

Wing Ecolo-Til 7-30"

2шт.

3

02380300

BRACKET

Gauge Wheel Mounting

2шт.

4

02380400

BAR ASSY.

Spindle Weld

2шт.

5

10008147

WHEEL ASSY

27" x 9.50 x 15" Tire

2шт.

6

NSS

NOT SOLD SEPARAT

27" x 9.50 x 15" - 6p

2шт.

7

10105151

WHEEL

8 x 15 Six Hole

2шт.

8

02350500

STAND

Parking Weldment

1шт.

9

14823695

TOW BAR

Cat 2 Hitch Pin

2шт.

10

14823696

HITCH PIN

Cat 3

2шт.

11

09576610

LINKAGE

Flat

2шт.

12

14816348

PIN,25.4mm OD x 133.35mm L

Weldment

2шт.

13

02305000

SPACER

Cat 3 Hitch Pin

2шт.

14

18510009

Serial Number Plate (Not Shown)

1шт.

15

18532023

DECAL

DMI Logo 5 x 16 (Not Shown)

1шт.

16

18534203

DECAL

FEMA (Not Shown)

1шт.

17

18534230

DECAL

Ecolo-Til 1000 (Not Shown)

1шт.

18

18534361

DANGER DECAL

Caution

1шт.

20

NSS

NOT SOLD SEPARAT

3/4" NC Hex., Nut Gd. 2

16шт.

21

NSS

NOT SOLD SEPARAT

3/4" x 2-1/2" NC HHCS Gd. 5

12шт.

22

NSS

NOT SOLD SEPARAT

3/4" Lockwasher ZP

4шт.

23

NSS

NOT SOLD SEPARAT

7/16" NC Hex., Nut Gd. 2

4шт.

24

NSS

NOT SOLD SEPARAT

1/8" x 2" Hair Pin ZP

1шт.

25

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-1/8" E.L. x 3-1/2"

1шт.

26

14816395

CLEVIS

1" x 4-7/8" E.L. Pin

1шт.

27

NSS

NOT SOLD SEPARAT

7/16" x 1-1/2" NC HHCS Gd. 2 ZP

4шт.

28

NSS

NOT SOLD SEPARAT

3/16" x 3" Lg Hair Pin

1шт.

29

A30338

PIN

1/4" Dia. x 1-3/4" Klik

2шт.

30

NSS

NOT SOLD SEPARAT

3/4" x 6-1/2" NC HB Gd. 5 ZP

4шт.
