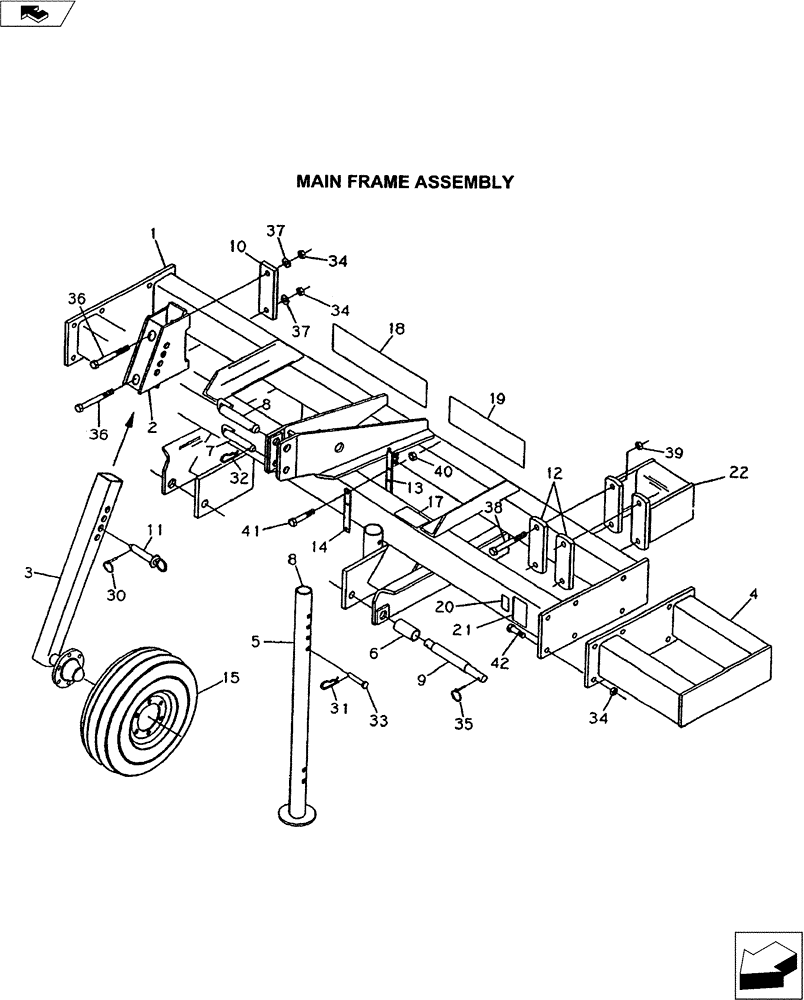

Запчасти Case IH 1000 (39.100.01) - MAIN FRAME ASSEMBLY (39) - FRAMES AND BALLASTING

1

02381100

FRAME

3 Shank Main 101-3/4"

1шт.

1

02381500

FRAME

5 Shank Main 152" lg

1шт.

2

02381300

BRACKET

Gauge Wheel Mgt.

2шт.

3

02381400

BAR ASSY.

Spindle Weld

2шт.

4

02380250

BAR ASSY.

Wing Ecolo-Til 11-1/2" lg

2шт.

5

02350500

STAND

Parking Weld

1шт.

6

02305000

SPACER

Cat 3 Hitch Pin

2шт.

7

14816395

CLEVIS

1" x 4-7/8" E.L. Pin

1шт.

8

14820358

CLEVIS

1-1/4" Dia Pin

1шт.

9

14892360

SPECIAL PIN,36.53mm OD x 322.07mm L

Comb., 3 Pt Painted

2шт.

10

09576610

LINKAGE

Flat

2шт.

11

14816348

PIN,25.4mm OD x 133.35mm L

2шт.

12

09576610

LINKAGE

Flat

1шт.

13

09650150

BRACKET

SMV

1шт.

14

09650152

BRACKET

1шт.

15

10008160

WHEEL ASSY.

20.5 x 8 Tire

2шт.

16

18510009

Serial Number Plate (Not Shown)

1шт.

17

18534361

DANGER DECAL

Caution

1шт.

18

18534230

DECAL

Ecolo-Til 1000

1шт.

19

18532023

DECAL

DMI Logo

1шт.

20

18534203

DECAL

Fema

1шт.

21

18534243

REFLECTOR

Amber

1шт.

22

09576750

BAR

Parabolic

1шт.

30

A30338

PIN

1/4" Dia. x 1-3/4" Klik

2шт.

31

NSS

NOT SOLD SEPARAT

1/8" x 2" Hair Pin ZP

1шт.

32

NSS

NOT SOLD SEPARAT

3/16" x 3" Hair Pin ZP

2шт.

33

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-1/8" E.L. x 3-1/2"

1шт.

34

NSS

NOT SOLD SEPARAT

3/4" NC Hex., Nut Gd. 2

16шт.

35

A33509

PIN,11.18mm OD

Klik

2шт.

36

NSS

NOT SOLD SEPARAT

3/4" x 6-1/2" NC Hex., Bolt Gd. 5

4шт.

37

NSS

NOT SOLD SEPARAT

3/4" Lock Washer ZP

4шт.

38

NSS

NOT SOLD SEPARAT

3/4" x 6 NC Hex., Bolt Gd 5

1шт.

39

NSS

NOT SOLD SEPARAT

3/4" NC Hex., Nut

1шт.

40

NSS

NOT SOLD SEPARAT

3/8" NC Hex., Nut

2шт.

41

NSS

NOT SOLD SEPARAT

3/8" x 5" NC Hex., Bolt

2шт.

42

NSS

NOT SOLD SEPARAT

3/4" x 2-1/2" NC HHCS Gd5

12шт.
