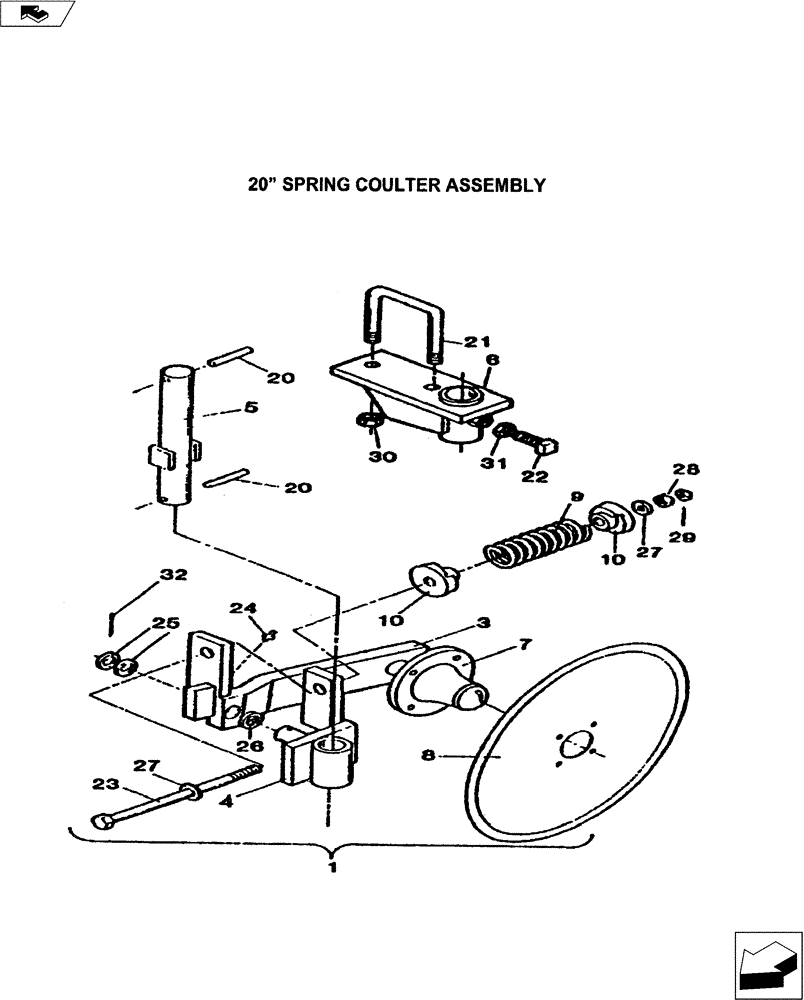

Запчасти Case IH 1000 (75.200.03) - 20" SPRING COULTER ASSEMBLY (75) - SOIL PREPARATION

1

02365000

BAR ASSY.

20" Coulter Arm Complete

1шт.

3

02365010

BAR ASSY.

Coulter Arm w/Hub

1шт.

4

02365019

BAR ASSY.

Coulter Pivot

1шт.

5

02365024

BAR ASSY.

Coulter Shaft

1шт.

6

02365028

BAR ASSY.

Standard Mount

1шт.

7

28163311

HUB ASSY.

633 4-Bolt

1шт.

8

443626A1

PLOW DISC

20" Coulter Blade

1шт.

9

24143880

COMPRESSION SPRING

1шт.

10

20090050

HOLDER

Spring Casting

2шт.

20

438-12436

LOCK PIN,3/8" x 2 1/4", Slotted

Roll

2шт.

21

16312020

U-BOLT

BOLT "U" 3/4" x 4" x 8"

1шт.

22

16812084

SET SCREW,3/4" - 10 x 2"

3/4" x 2 Sq. Head Set

1шт.

23

413-10176

BOLT,Hex, 5/8" - 11 x 11", Gr 5

NX

1шт.

24

219-86

LUBE NIPPLE,1/8" NPTF

NPT Grease Zerk

1шт.

25

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4" Machinery - 14 Ga.

2шт.

26

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4" Machinery - 10 Ga.

1шт.

27

17411012

WASHER

5/8" Heavy

2шт.

28

NSS

NOT SOLD SEPARAT

5/8" Heavy Duty Nut

1шт.

29

NSS

NOT SOLD SEPARAT

5/8" NC Jam Nut

1шт.

30

NSS

NOT SOLD SEPARAT

3/4" NC Hex., Nut

2шт.

31

NSS

NOT SOLD SEPARAT

3/4" Hex., Jam Nut

1шт.

32

NSS

NOT SOLD SEPARAT

1/4" x 1-1/2" Cotter Pin

1шт.
