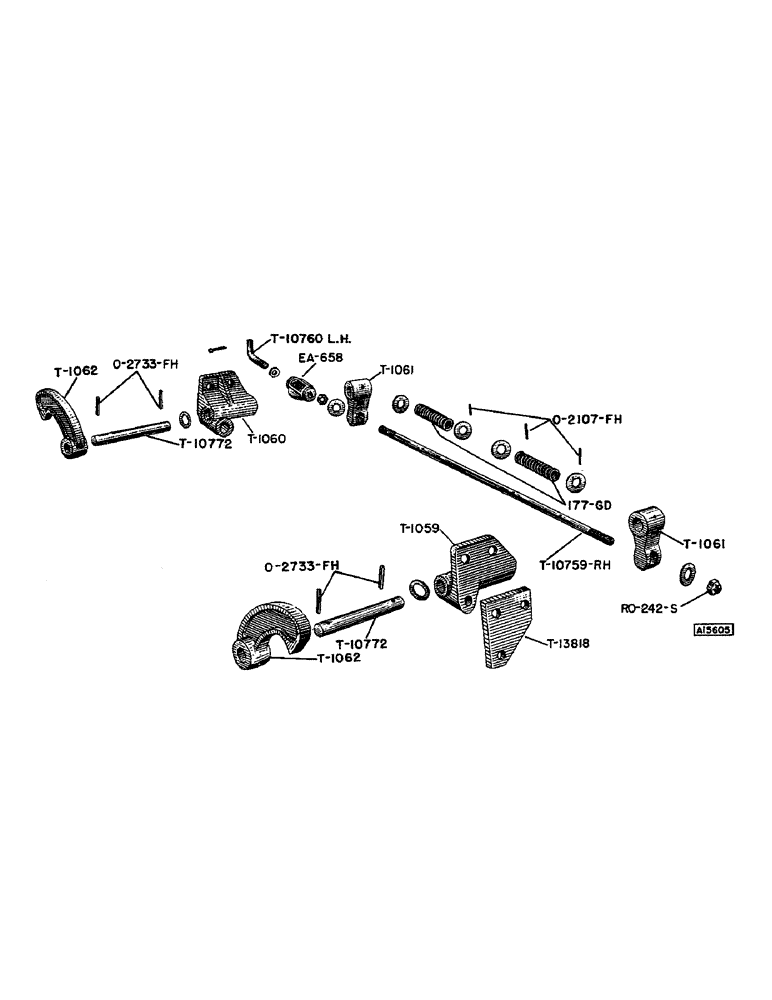

Запчасти Case IH T-SERIES (10) - LATCH RELEASE ASSEMBLY

T1059

BEARING - latch, R.H. (Yr. 55-)

1шт.

1/8" straight Lincoln fitting #5000

1шт.

7/16" x 1-3/4" hex bolt w/lockwasher and nut (T24 & T26)

1шт.

7/16" x 2-1/4" hex bolt w/lockwasher and nut (T24 & T26)

1шт.

7/16" x 3-3/4" hex bolt w/lockwasher and nut (T24 & T26)

1шт.

7/16" x 2-1/2" hex bolt w/lockwasher and nut (T28)

1шт.

7/16" x 2-3/4" hex bolt w/lockwasher and nut (T28)

1шт.

7/16" x 4-1/4" hex bolt w/lockwasher and nut (T28)

1шт.

T1060

BEARING - latch, L.H. (Yr. 55-)

1шт.

1/8" straight Lincoln fitting #5000

1шт.

7/16" x 1-3/4" hex bolt w/lockwasher and nut (T24 & T26)

2шт.

7/16" x 3-1/4" hex bolt w/lockwasher and nut (T24 & T26)

1шт.

7/16" x 2-1/2" hex bolt w/lockwasher and nut (T28)

2шт.

7/16" x 3-3/4" hex bolt w/lockwasher and nut (T28)

1шт.

T1061

CAM - latch (Yr. 55-)

2шт.

T1062

LATCH - (Yr. 55-)

2шт.

T10759

ROD - latch release, R.H. (1/2" rd. x 23-1/4") (Yr. 55-)

1шт.

1/2" N.C. hex jam nut

1шт.

1-1/4" x 9/16" x #14 wrot washer

6шт.

T10760

ROD - latch release, L.H. (1/2" rd. x 4-1/4") (Yr. 55-)

1шт.

1/2" N.C., L.H. hex jam nut

1шт.

1-1/4" x 9/16" x #14 wrot washer

1шт.

1/8" x 1" cotter pin

1шт.

T10772

SHAFT - latch (3/4" rd. x 6-15/16") (Yr. 55-)

2шт.

T13818

SPACER - latch bearing (4" x 3/8" x 3-5/8") (Yr. 57-)

2шт.

O2107FH

X

ROLL PIN - R.H. release rod (1/8" x 1-1/8") (Yr. 55-)

3шт.

O2733FH

X

ROLL PIN - latch and latch cam (7/32" x 1-1/2") (Yr. 55-)

4шт.

EA658

TURNBUCKLE - release rod (Yr. 55-)

1шт.

RO242S

LOCKNUT - R.H. release rod (1/2" N.C. light) (Yr. 55-)

1шт.

177GD

SPRING

- latch release (9/16" I.D. x 3-3/4" long, 14-1/2 coils, compression) (Yr. 55-)

2шт.
