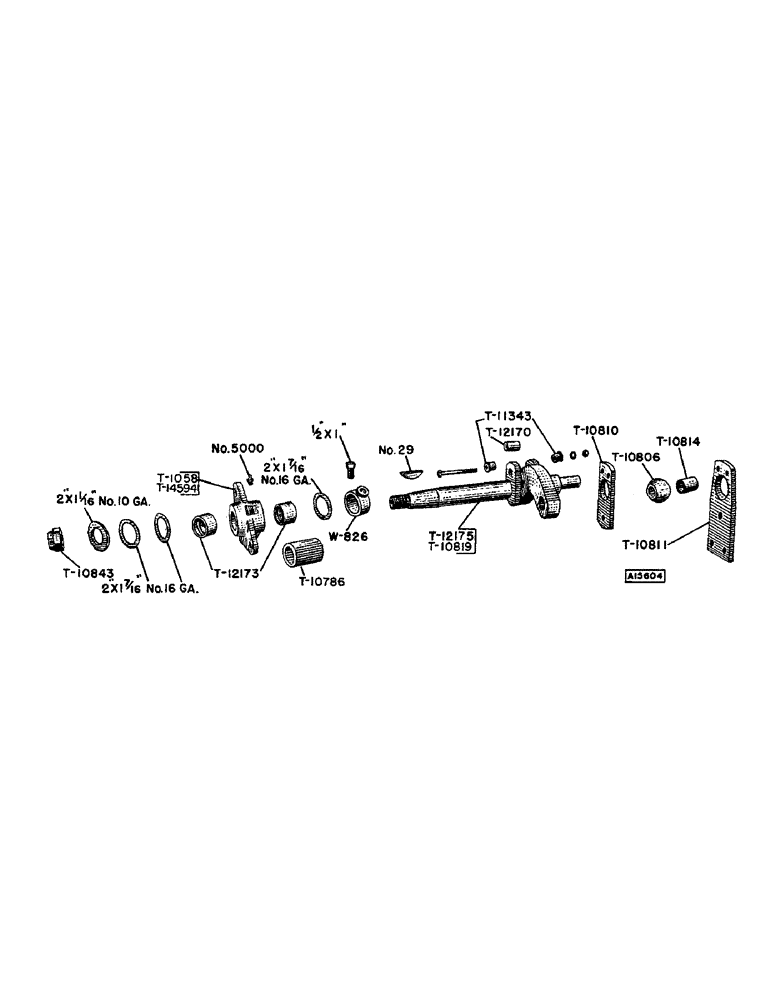

Запчасти Case IH T-SERIES (09) - PIVOT JACKSHAFT ASSEMBLY

T1058

BEARING - support, jackshaft (See T14594) (Yr. 56-)

1шт.

1/8" straight Lincoln fitting #5000

1шт.

1/2" x 1-1/2" hex bolt w/lockwasher and nut

3шт.

T10786

BUSHING - support bearing (1-5/8" O.D. x 1-1/4" I.D. x 2" bronze- use w/T10819) (55-56)

1шт.

T10806

BALL - jackshaft (Yr. 55-)

1шт.

T10810

CAP - ball, outboard (2-1/4" x 3/8" x 5-3/8") (Yr. 55-)

1шт.

3/8" x 1-1/4" hex bolt w/lockwasher and nut

2шт.

T10811

CASE - ball, outboard (3" x 3/8" x 7-7/8") (Yr. 55-)

1шт.

T10814

BUSHING - ball (Oilite A1024-1) (Yr. 55-)

1шт.

T10819

JACKSHAFT - pivot (1-1/4") ship T80816M (Yr. 55-56)

1шт.

5/16" x 2-1/4" hex bolt w/lockwasher and nut (Shear pin)

1шт.

T10843

LOCKNUT - pivot jackshaft (1" N.F.) (Yr. 55-)

1шт.

T11343

BUSHING - flange, shear bolt (3/4" rd. x 9/16") (Yr. 55-)

2шт.

T12170

BUSHING - shear bolt (3/4" rd. x 1") (Yr. 55-)

1шт.

T12173

BUSHING - support bearing (1-5/8" O.D. x 1-3/8" I.D. x 15/16" bronze - use w/T12175) (Yr. 56-)

2шт.

T12175

JACKSHAFT - pivot (1-3/8") (Yr. 56-)

1шт.

5/16" x 2-3/4" hex bolt w/lockwasher and nut (Shear pin)

1шт.

2" x 1-7/16" x #16 wrot washer

3шт.

2" x 1-1/16" x #10 wrot washer

1шт.

#29 Woodruff key

1шт.

T14594

BEARING - support, jackshaft, cpt. w/bushings T12173 (Yr. 57-)

1шт.

1/8" straight Lincoln fitting #5000

1шт.

1/2" x 1-1/2" hex bolt w/lockwasher and nut

3шт.

T80816M

BUNDLE - conversion (Includes T12175 jackshaft and T1207 chain drive plate) (Yr. 56-)

1шт.

W826

COLLAR - jackshaft (Yr. 56-)

1шт.

1/2" x 1" C.P. set screw

1шт.
