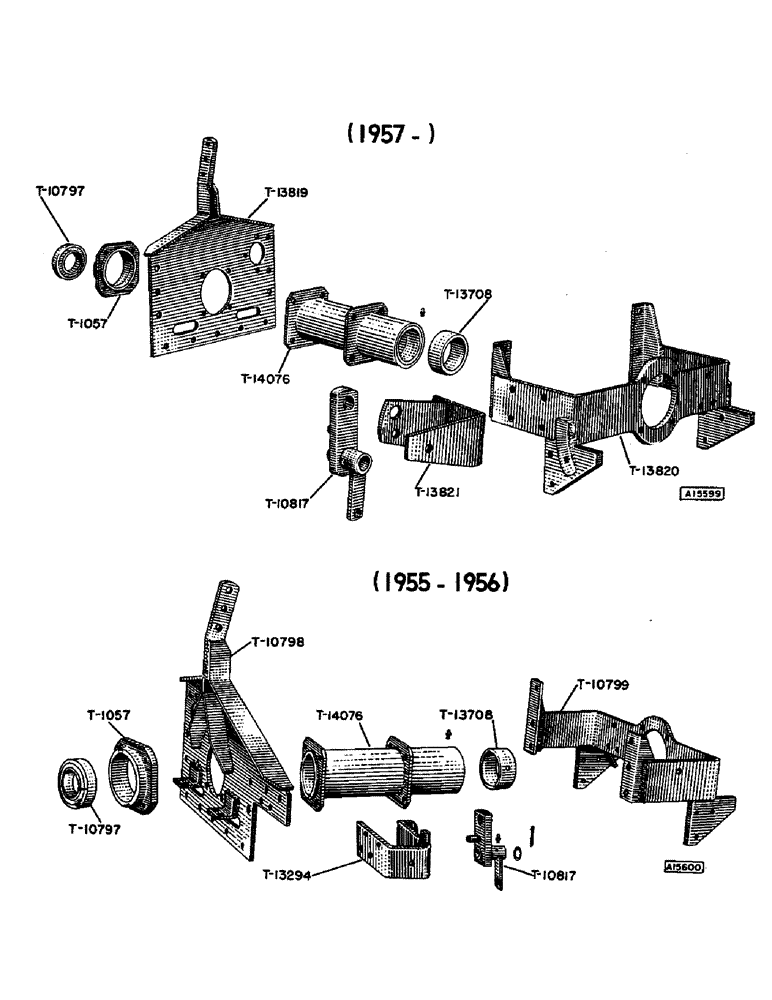

Запчасти Case IH T-SERIES (06) - FRAME SHEET, TURNOVER CYLINDER AND YOKE, 1957 -

T1057

RETAINER - bearing, frame sheet (Yr. 57-)

1шт.

1/2" x 1-1/2" N.C. hex bolt w/lockwasher

4шт.

T10797

BEARING - ball, pivot tube and frame sheet (#87512) (Yr. 57-)

1шт.

T10817

ARM - cylinder and release (Yr. 57-)

1шт.

1/4" straight Lincoln fitting #5042

1шт.

T13708

BUSHING - pivot tube cylinder (Yr. 57-)

1шт.

T13819

FRAME SHEET - (Yr. 57-)

1шт.

1/2" x 1-1/2" hex bolt w/lockwasher and nut (To yoke)

6шт.

1/2" x 1-1/2" hex bolt w/lockwasher and nut (To angle)

5шт.

T13820

YOKE - pivot tube (Yr. 57-)

1шт.

1/2" x 1-1/2" hex bolt w/lockwasher and nut (To cylinder)

2шт.

T13821

BRACKET - cylinder arm (Yr. 57-)

1шт.

1/2" x 1-1/2" hex bolt w/lockwasher and nut

4шт.

1-1/2" x 1-1/16" x #16 wrot washer

1шт.

3/16" x 1-1/2" cotter pin

1шт.

T14076

CYLINDER - pivot tube (Yr. 57-)

1шт.

1/8" straight Lincoln fitting #5000

1шт.
