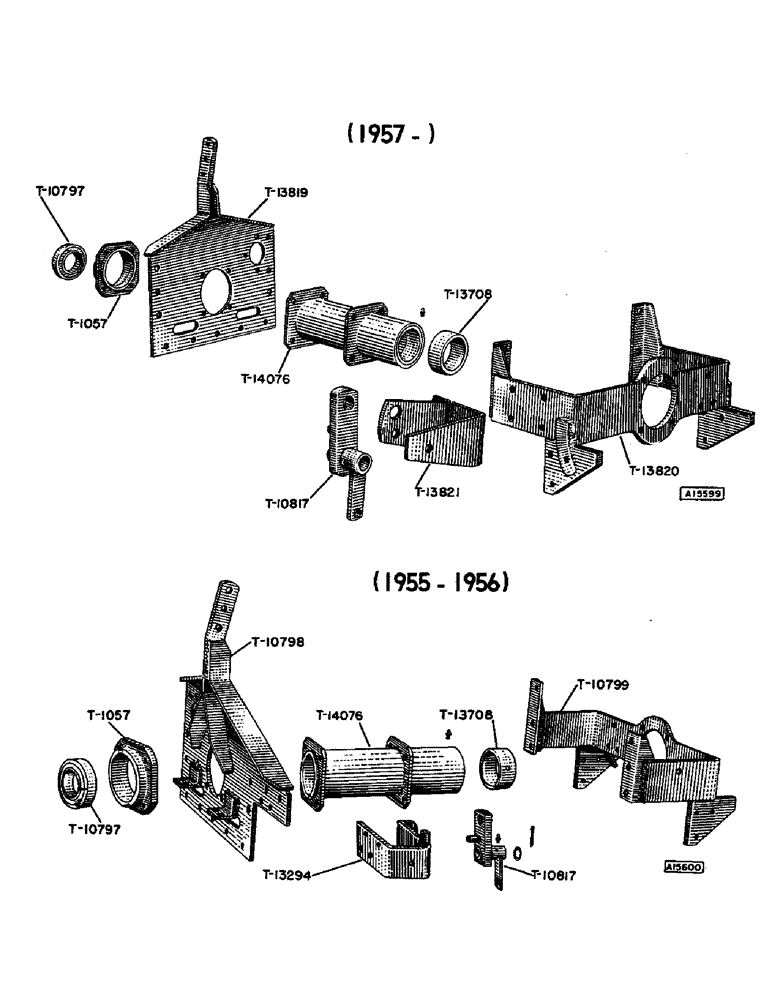

Запчасти Case IH T-SERIES (06[1]) - FRAME SHEET, TURNOVER CYLINDER AND YOKE, 1955 TO 1956

T1057

RETAINER - bearing, frame sheet (Yr. 55-56)

1шт.

T10795

BUSHING - pivot tube cylinder (Use T13708) (Yr. 55-56)

1шт.

T10797

BEARING - ball, pivot tube and frame sheet (#87512) (Yr. 55-56)

1шт.

T10798

FRAME SHEET - (Yr. 55-56)

1шт.

1/2" x 1-1/2" hex bolt w/lockwasher and nut (To yoke)

6шт.

1/2" x 1-1/2" hex bolt w/lockwasher and nut (To angle)

5шт.

T10799

YOKE - pivot tube (Yr. 55-56)

1шт.

1/2" x 1-1/2" hex bolt w/lockwasher and nut (To ball case)

2шт.

1/2" x 1-1/2" hex bolt w/lockwasher and nut (To cylinder)

2шт.

1/2" x 1-1/2" hex bolt w/lockwasher and nut (To bracket)

1шт.

1/2" x 2" hex bolt w/lockwasher and nut (To ball case)

1шт.

T10800

CYLINDER - pivot tube (Use T14076) (Yr. 55-56)

1шт.

1/8" straight Lincoln fitting #5000

1шт.

T10801

BRACKET - cylinder arm (Use T13294) (Yr. 55)

1шт.

1/2" x 1-1/2" hex bolt w/lockwasher and nut

5шт.

1-1/2" x 1-1/16" x #16 wrot washer

1шт.

3/16" x 1-1/2" cotter pin

1шт.

T10817

ARM - cylinder and release (Yr. 55-56)

1шт.

1/4" straight Lincoln fitting #5042

1шт.

T13294

BRACKET - cylinder arm (Yr. 56)

1шт.

1/2" x 1-1/2" hex bolt w/lockwasher and nut

5шт.

1-1/2" x 1-1/16" x #16 wrot washer

1шт.

3/16" x 1-1/2" cotter pin

1шт.
