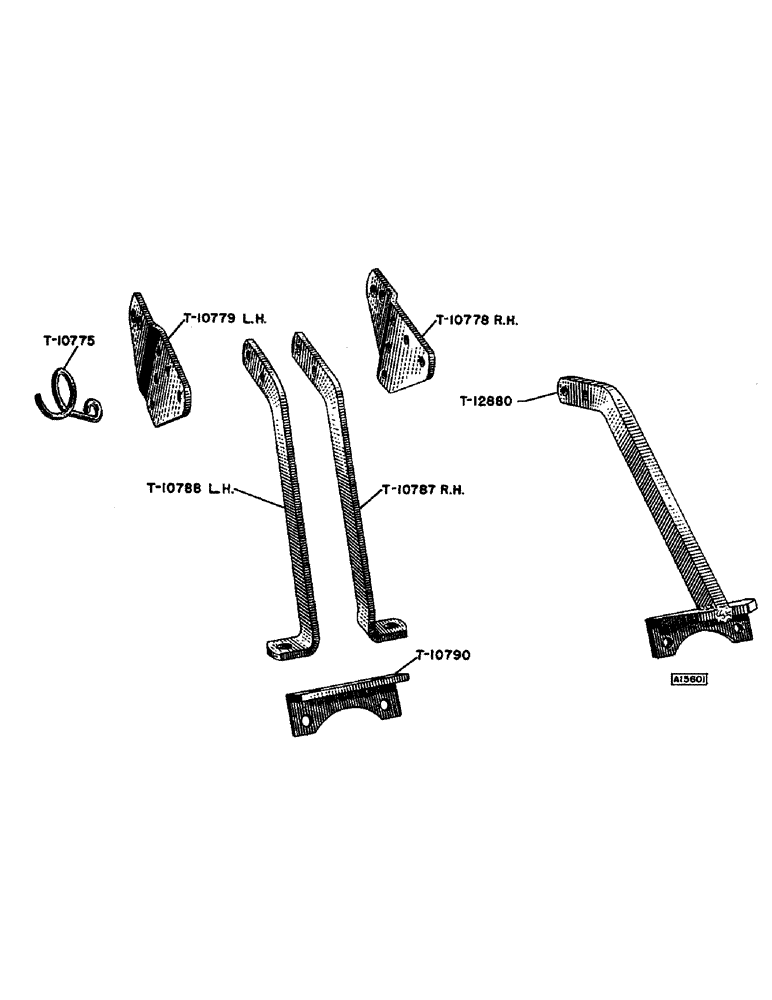

Запчасти Case IH T-SERIES (05) - MAST BRACES AND TIE PLATES

T10775

HOLDER - hose (Yr. 55-)

1шт.

T10778

PLATE - mast tie, R.H. (5" x 3/8" x 10-1/4") (Yr. 55-)

1шт.

1/2" x 2-1/4" hex bolt w/lockwasher and nut

4шт.

1/2" x 2-1/2" hex bolt w/lockwasher and nut

1шт.

1" x 9/16" x #16 wrot washer

1шт.

T10779

PLATE - mast tie, L.H. (5" x 3/8" x 10-1/4") (Yr. 55-)

1шт.

T10787

BRACE - mast, R.H. (Use T12880) (Yr. 55)

1шт.

T10788

BRACE - mast, L.H. (Use T12880) (Yr. 55)

1шт.

T10790

BRACKET - brace, pivot tube (Use T12880) (Yr. 55)

1шт.

1/2" x 1-1/2" hex bolt w/lockwasher and nut

2шт.

1/2" x 2" hex bolt w/lockwasher and nut

2шт.

T12880

BRACE - mast (Yr. 56-)

1шт.

1/2" x 2" hex bolt w/lockwasher and nut

2шт.
