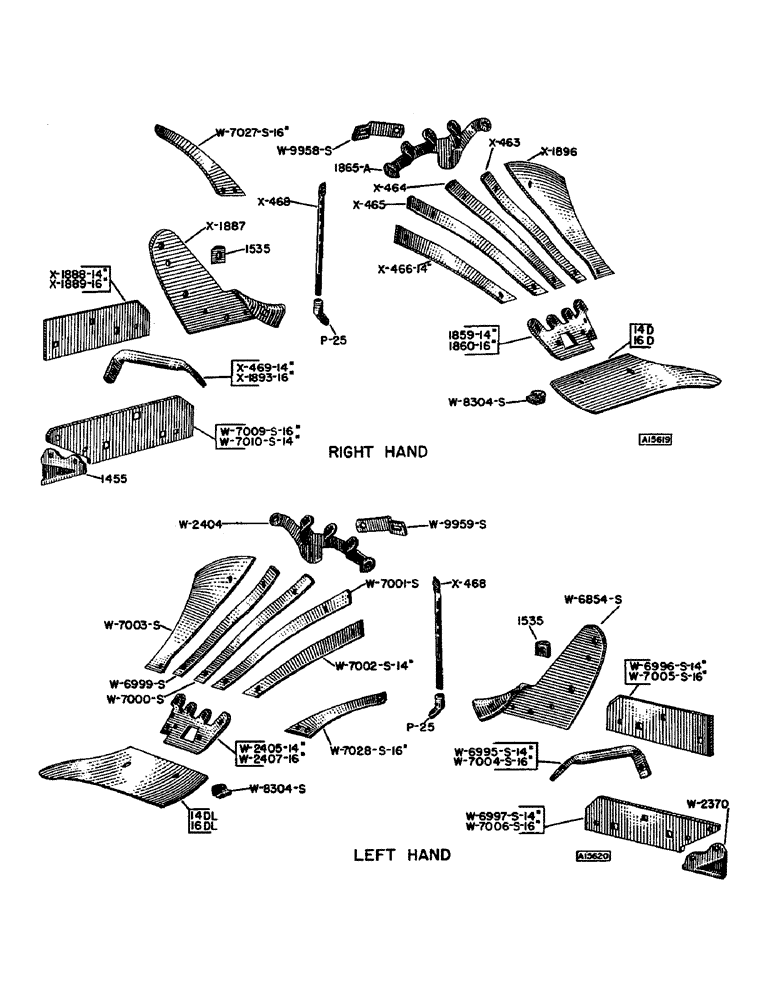

Запчасти Case IH T-SERIES (24) - TSX SLAT BOTTOMS

1455

TEE

HEEL - long landside, R.H. (14" & 16")

1шт.

1535

WASHER - spacer (R.H. 14" & 16", L.H. 14" & 16")

2шт.

1859

U-BOLT

SPLICE PLATE (R.H. 14")

4шт.

3/8" x 1-1/4" P#3 plow bolt w/nut (See Z1597) (R.H. 14")

4шт.

1860

CLAMP

SPLICE PLATE - 16", R.H.

2шт.

3/8" x 1-1/4" P#3 plow bolt w/nut (See Z1597) (R.H. 16")

4шт.

1865A

BRACKET - slat, R.H. (14" & 16")

2шт.

P25

NUT - round brace (R.H. 14" & 16", L.H. 14" & 16")

2шт.

W2370

HEEL - long landside, L.H. (14" & 16")

1шт.

W2404

BRACKET - slat, L.H. (14" & 16")

2шт.

W2405

SPLICE PLATE - 14", L.H.

2шт.

3/8" x 1-1/4" P#3 plow bolt w/nut (See Z1597) (L.H. 14")

4шт.

W2407

SPLICE PLATE - L.H. 16"

2шт.

3/8" x 1-1/4" P#3 plow bolt w/nut (See Z1597) (L.H. 16")

4шт.

W6854S

FROG - L.H. (14" & 16")

2шт.

1/2" x 2-1/2" hex bolt w/lockwasher & N.F. nut (L.H. 14" & 16")

2шт.

1/2" x 3-1/2" hex bolt w/lockwasher & N.F. nut (L.H. 14" & 16")

2шт.

1-3/8" x 9/16" x #12 wrot washer (L.H. 14" & 16")

4шт.

W6995S

BRACE - share (1" rd. x 14-1/2") (L.H. 14")

2шт.

W6996S

LANDSIDE - short, L.H. (4" x 1/2" x 14-1/4") (L.H. 14")

1шт.

3/8" x 1-1/2" P#3 plow bolt w/nut (See Z1598) (L.H. 14")

1шт.

7/16" x 2" P#3 plow bolt w/nut (See Z1604) (L.H. 14")

1шт.

1/2" x 2-3/4" P#3 plow bolt w/lockwasher & nut (See Z1632) (L.H. 14")

1шт.

5/8" x 2-1/2" P#3 plow bolt w/lockwasher & nut (See Z1657) (L.H. 14")

1шт.

W6997S

LANDSIDE - long, L.H. (4" x 1/2" x 20") (L.H. 14")

1шт.

3/8" x 1-1/2" P#3 plow bolt w/nut (See Z1598) (L.H. 14")

3шт.

7/16" x 2" P#3 plow bot w/nut (See Z1604) (L.H. 14")

1шт.

1/2" x 2-3/4" P#3 plow bolt w/lockwasher & nut (See Z1632) (L.H. 14")

1шт.

5/8" x 2-1/2" P#3 plow bolt w/lockwasher & nut (See Z1657) (L.H. 14")

1шт.

W6999S

SLAT - #2 L.H. (14" & 16")

2шт.

3/8" x 1-1/4" P#3 plow bolt w/nut (See Z1597) (L.H. 14" & 16")

4шт.

W7000S

SLAT - #3 L.H. (14" & 16")

2шт.

3/8" x 1-1/4" P#3 plow bolt w/nut (See Z1597) (L.H. 14" & 16")

4шт.

W7001S

SLAT - #4 L.H. (14" & 16")

2шт.

3/8" x 1-1/4" P#3 plow bolt w/nut (See Z1597) (L.H. 14" & 16")

4шт.

W7002S

SLAT - #5 L.H., 14"

2шт.

3/8" x 1-1/4" P#3 plow bolt w/nut (See Z1597) (L.H. 14")

2шт.

3/8" x 2" P#3 plow bolt w/nut (See Z1725) (L.H. 14")

2шт.

W7003S

SLAT - #1 L.H. (14" & 16")

2шт.

3/8" x 1-1/4" P#3 plow bolt w/nut (See Z1597) (L.H. 14" & 16")

2шт.

3/8" x 1-1/2" P#3 plow bolt w/nut (See Z1598) (L.H. 14" & 16")

2шт.

W7004S

BRACE - share (1" rd. x 16") (L.H. 16")

2шт.

W7005S

LANDSIDE - short, L.H. (4" x 1/2" x 16-1/4") (L.H. 16")

1шт.

3/8" x 1-1/2" P#3 plow bolt w/nut (See Z1598) (L.H. 16")

1шт.

7/16" x 2" P#3 plow bolt w/nut (See Z1604) (L.H. 16")

1шт.

1/2" x 2-3/4" P#3 plow bolt w/lockwasher & nut (See Z1632) (L.H. 16")

1шт.

5/8" x 2-1/2" P#3 plow bolt w/lockwasher & nut (See Z1657) (L.H. 16")

1шт.

W7006S

LANDSIDE - long, L.H. (4" x 1/2" x 20") (L.H. 16")

1шт.

3/8" x 1-1/2" P#3 plow bolt w/nut (See Z1598) (L.H. 16")

3шт.

7/16" x 2" P#3 plow bolt w/nut (See Z1604) (L.H. 16")

1шт.

1/2" x 2-3/4" P#3 plow bolt w/lockwasher & nut (See Z1632) (L.H. 16")

1шт.

5/8" x 2-1/2" plow bolt w/lockwasher & nut (See Z1657) (L.H. 16")

1шт.

W7009S

LANDSIDE - long (4" x 1/2" x 20") (R.H. 16")

1шт.

3/8" x 1-1/2" P#3 plow bolt w/nut (See Z1598) (R.H. 16")

3шт.

7/16" x 2" P#3 plow bolt w/nut (See Z1604) (R.H. 16")

1шт.

1/2" x 2-3/4" P#3 plow bolt w/lockwasher & nut (See Z1632) (R.H. 16")

1шт.

5/8" x 2-1/2" P#3 plow bolt w/lockwasher & nut (See Z1657) (R.H. 16")

1шт.

W7010S

LANDSIDE - long (4" x 1/2" x 20") (R.H. 14")

1шт.

3/8" x 1-1/2" P#3 plow bolt w/nut (See Z1598) (R.H. 14")

3шт.

7/16" x 2" P#3 plow bolt w/nut (See Z1604) (R.H. 14")

1шт.

1/2" x 2-3/4" P#3 plow bolt w/lockwasher & nut (See Z1632) (R.H. 14")

1шт.

5/8" x 2-1/2" P#3 plow bolt w/lockwasher & nut (See Z1657) (R.H. 14")

1шт.

W7027S

SLAT - #5, R.H. 16"

2шт.

3/8" x 1-1/4" P#3 plow bolt w/nut (See Z1597) (R.H. 16")

2шт.

3/8" x 2" P#3 plow bolt w/nut (See Z1725) (R.H. 16")

2шт.

W7028S

SLAT - #5, L.H. 16"

2шт.

3/8" x 1-1/4" P#3 plow bolt w/nut (See Z1597) (L.H. 16")

2шт.

3/8" x 2" P#3 plow bolt w/nut (See Z1725) (L.H. 16")

2шт.

W8304S

CLAMP - share (R.H. 14" & 16", L.H. 14" & 16")

2шт.

W9958S

BRACE - moldboard (1-1/2" x 3/8" x 9-3/8") (R.H. 14" & 16")

2шт.

7/16" x 1-1/4" hex bolt w/nut (R.H. 14")

2шт.

W9959S

BRACE - moldboard flat L.H. (1-1/2" x 3/8" x 9-3/8") (L.H. 14" & 16")

2шт.

7/16" x 1-1/4" hex bolt w/nut (L.H. 14" & 16")

2шт.

X463

SLAT - #2, R.H. (14" & 16")

2шт.

7/16" x 1-1/4" hex bolt w/nut (R.H. 14" & 16")

4шт.

X464

SLAT - #3, R.H. (14" & 16")

2шт.

3/8" x 1-1/4" P#3 plow bolt w/nut (See Z1597) (R.H. 14" & 16")

4шт.

X465

SLAT - #4, R.H. (14" & 16")

2шт.

3/8" x 1-1/4" P#3 plow bolt w/nut (See Z1597) (R.H. 14" & 16")

4шт.

X466

SLAT - #5, R.H. (14")

2шт.

3/8" x 1-1/4" P#3 plow bolt w/nut (See Z1597) (R.H. 14")

2шт.

3/8" x 2" P#3 plow bolt w/nut (See Z1725) (R.H. 14")

2шт.

X468

BRACE - moldboard (5/8" rd. x 14") (R.H. 14" & 16", L.H. 14" & 16")

2шт.

3/8" x 1-1/4" hex bolt w/nut (R.H. 14" & 16", L.H. 14" & 16")

2шт.

X469

BRACE - share (1" rd. x 13") (R.H. 14")

2шт.

X1887

FROG - (R.H. 14" & 16")

2шт.

1/2" x 2-1/2" hex bolt w/lockwasher & N.F. nut (R.H. 14" & 16")

2шт.

1/2" x 3-1/2" hex bolt w/lockwasher & N.F. nut (R.H. 14" & 16")

2шт.

1-3/8" x 9/16" x 12 ga. wrot washer (R.H. 14" & 16")

4шт.

X1888

LANDSIDE - short (4" x 1/2" x 14-1/4") (R.H. 14")

1шт.

3/8" x 1-1/2" P#3 plow bolt w/nut (See Z1598) (R.H. 14")

1шт.

7/16" x 2" P#3 plow bolt w/nut (See Z1604) (R.H. 14")

1шт.

1/2" x 2-3/4" P#3 plow bolt w/lockwasher & nut (See Z1632) (R.H. 14")

1шт.

5/8" x 2-1/2" P#3 plow bolt w/lockwasher & nut (See Z1657) R.H. 14")

1шт.

X1889

LANDSIDE - short (4" x 1/2" x 16-1/4") (R.H. 16")

1шт.

3/8" x 1-1/2" P#3 plow bolt w/nut (See Z1598) (R.H. 16")

1шт.

7/16" x 2" P#3 plow bolt w/nut (See Z1604) (R.H. 16")

1шт.

1/2" x 2-3/4" P#3 plow bolt w/lockwasher & nut (See Z1632) (R.H. 16")

1шт.

5/8" x 2-1/2" P#3 plow bolt w/lockwasher & nut (See Z1657) (R.H. 16")

1шт.

X1893

BRACE - share (1" rd. x 15") (R.H. 16")

2шт.

X1896

SLAT - #1, R.H. (14" & 16")

2шт.

3/8" x 1-1/4" P#3 plow bolt w/lockwasher & nut (See Z1597) (R.H. 14" & 16")

2шт.

3/8" x 1-1/2" P#3 plow bolt w/lockwasher & nut (See X1598) (R.H. 14" & 16")

2шт.

Z1597

X

BOLT - plow (3/8" x 1-1/4" P#3 w/N.C. nut)

1шт.

Z1598

BOLT - plow (3/8" x 1-1/2" P#3 w/N.C. nut)

1шт.

Z1599

BOLT - plow (3/8" x 1-5/8" P#3 w/N.C. nut)

1шт.

Z1604

BOLT

- plow (7/16" x 2" P#3 w/N.C. nut)

1шт.

Z1614

BOLT - plow (1/2" x 1-1/2" P#3 w/N.C. nut)

1шт.

Z1632

BOLT - plow (1/2" x 2-3/4" P#3 w/N.C. nut)

1шт.

Z1657

BOLT

- plow (5/8" x 2-1/2" P#3 w/N.C. nut)

1шт.

Z1725

BOLT

- plow (3/8" x 2" P#3 w/N.C. nut)

1шт.

14D

SHARE

- 14" S.C. (R.H. 14")

2шт.

3/8" x 1-5/8" P#3 plow bolt w/nut (See Z1599) (R.H. 14")

2шт.

1/2" x 1-1/2" P#3 plow bolt w/nut (See Z1614) (R.H. 14")

2шт.

14DL

SHARE - 14", L.H., S.C.

2шт.

3/8" x 1-5/8" P#3 plow bolt w/nut (See Z1599) (L.H. 14")

2шт.

1/2" x 1-1/2" P#3 plow bolt w/nut (See Z1614) (L.H. 14")

2шт.

16D

SHARE

- 16" S.C. (R.H. 16")

2шт.

3/8" x 1-5/8" P#3 plow bolt w/nut (See Z1599) (R.H. 16")

2шт.

1/2" x 1-1/2" P#3 plow bolt w/nut (See Z1614) (R.H. 16")

2шт.

16DL

SHARE

- 16", L.H., S.C.

2шт.

3/8" x 1-5/8" P#3 plow bolt w/nut (See Z1599) (L.H. 16")

2шт.

1/2" x 1-1/2" P#3 plow bolt w/nut (See Z1614) (L.H. 16")

2шт.
