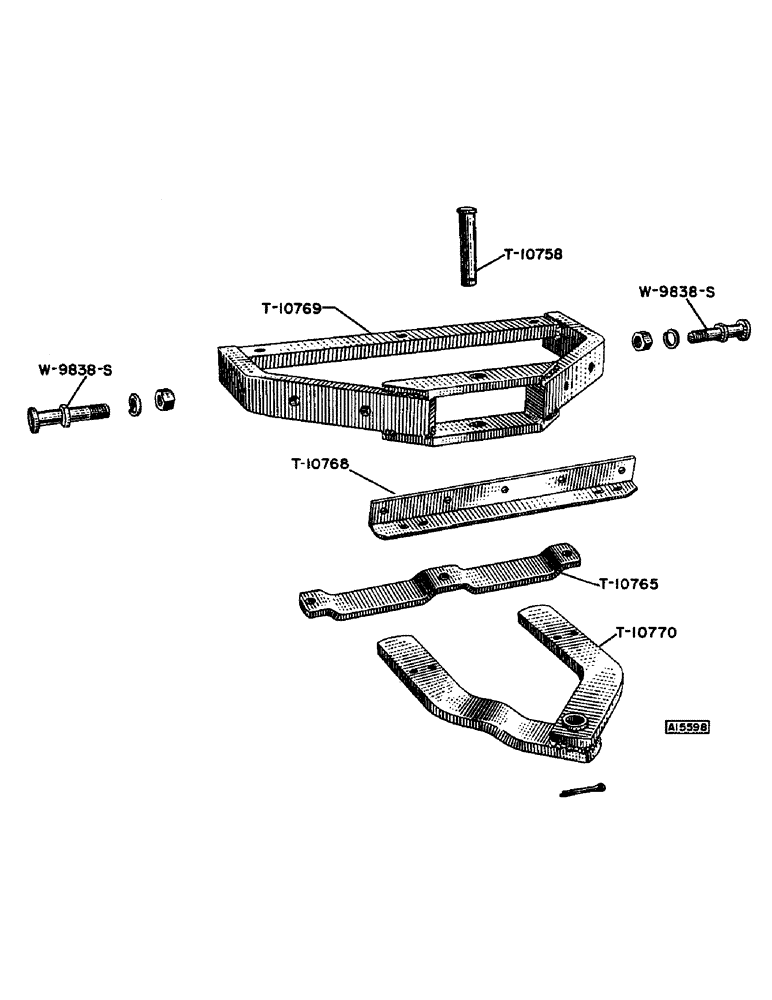

Запчасти Case IH T-SERIES (04) - DRAFT AND PULL BAR ASSEMBLY

T10758

PIN - pull bar (1-1/4" rd. x 4-3/4") (Yr. 55-)

1шт.

1/4" x 2" cotter pin

1шт.

T10765

STRAP - draft bar (2-1/2" x 1/2" x 23-1/2") (Yr. 55-)

1шт.

T10768

ANGLE - pull bar and frame sheet (Yr. 55-)

1шт.

1/2" x 2-1/4" hex bolt w/lockwasher and nut

4шт.

T10769

DRAFT BAR - (Yr. 55-)

1шт.

5/8" x 2-1/4" hex bolt w/lockwasher and nut

3шт.

T10770

PULL BAR - (Yr. 55-)

1шт.

W9838S

PIN - draft bar (1-1/2" rd. x 4-7/8") (Yr. 55-)

2шт.

7/8" lockwasher and N.F. hex nut

2шт.
